TOWN HALL®

The substantial proportions and unique color blending of Town Hall is modelled after historic North American clay street pavers.  The look of Town Hall is timeless, which makes it a popular choice for driveways, patios, walkways and more, in either traditional or permeable applications.  The rich colors and classic shape also make it a popular for borders, banding and other accents in pavers, walls and vertical features.  To ensure projects receive a random appearance, Town Hall textures were cast from a multitude of different surfaces using Reala™ Technology, and Ultima™ Concrete Technology was used to create superior durability.  The result is vintage, streetscape charm that stands the test of time.

Town Hall paver in heritage red
-
Town Hall paver in heritage red
-

TOWN HALL®

The substantial proportions and unique color blending of Town Hall is modelled after historic North American clay street pavers.  The look of Town Hall is timeless, which makes it a popular choice for driveways, patios, walkways and more, in either traditional or permeable applications.  The rich colors and classic shape also make it a popular for borders, banding and other accents in pavers, walls and vertical features.  To ensure projects receive a random appearance, Town Hall textures were cast from a multitude of different surfaces using Reala™ Technology, and Ultima™ Concrete Technology was used to create superior durability.  The result is vintage, streetscape charm that stands the test of time.

Colors
Applications
Borders and Accents
Commercial Vehicular
Pedestrian
Permeable
Residential Vehicular
Shape and size
STANDARD
100mm x 250mm x 70mm
3 7/8" x 9 7/8" x 2 3/4"
STANDARD
100mm x 250mm x 70mm
3 7/8" x 9 7/8" x 2 3/4"
STANDARD
100mm x 250mm x 70mm
3 7/8" x 9 7/8" x 2 3/4"
STANDARD
100mm x 250mm x 70mm
3 7/8" x 9 7/8" x 2 3/4"
STANDARD
100mm x 250mm x 70mm
3 7/8" x 9 7/8" x 2 3/4"
STANDARD
100mm x 250mm x 70mm
3 7/8" x 9 7/8" x 2 3/4"

Product Gallery

Technologies
Technologies
Elegance
Ultima ™
Reala ™

Deep, rich colors and a multitude of unique Reala ™ textures combine to deliver the timeless beauty of Unilock Elegance. From the timeworn look of European cobblestones, to the classic luxury of riven natural stone slabs, our Elegance collection offers styles you can’t get anywhere else and thanks to Ultima ™ Concrete, the look you purchase is the look that will last, with up to 4x the strength of poured in place concrete.

Our technologies

Ultima ™

Only Unilock has the technology to manufacture Ultima Concrete here in North America, resulting in pavers and walls with up to four times the strength of poured concrete. The look you purchase is the look that will last.

Our technologies

Reala ™

A multitude of natural stone surfaces, brick and historic cobblestones were cast to create Unilock products utilizing Reala technology. The result is a wide variety of authentic textures with consistent dimensions which are more cost efficient to install.

Our technologies
Colors
HERITAGE RED
HERITAGE CLAY

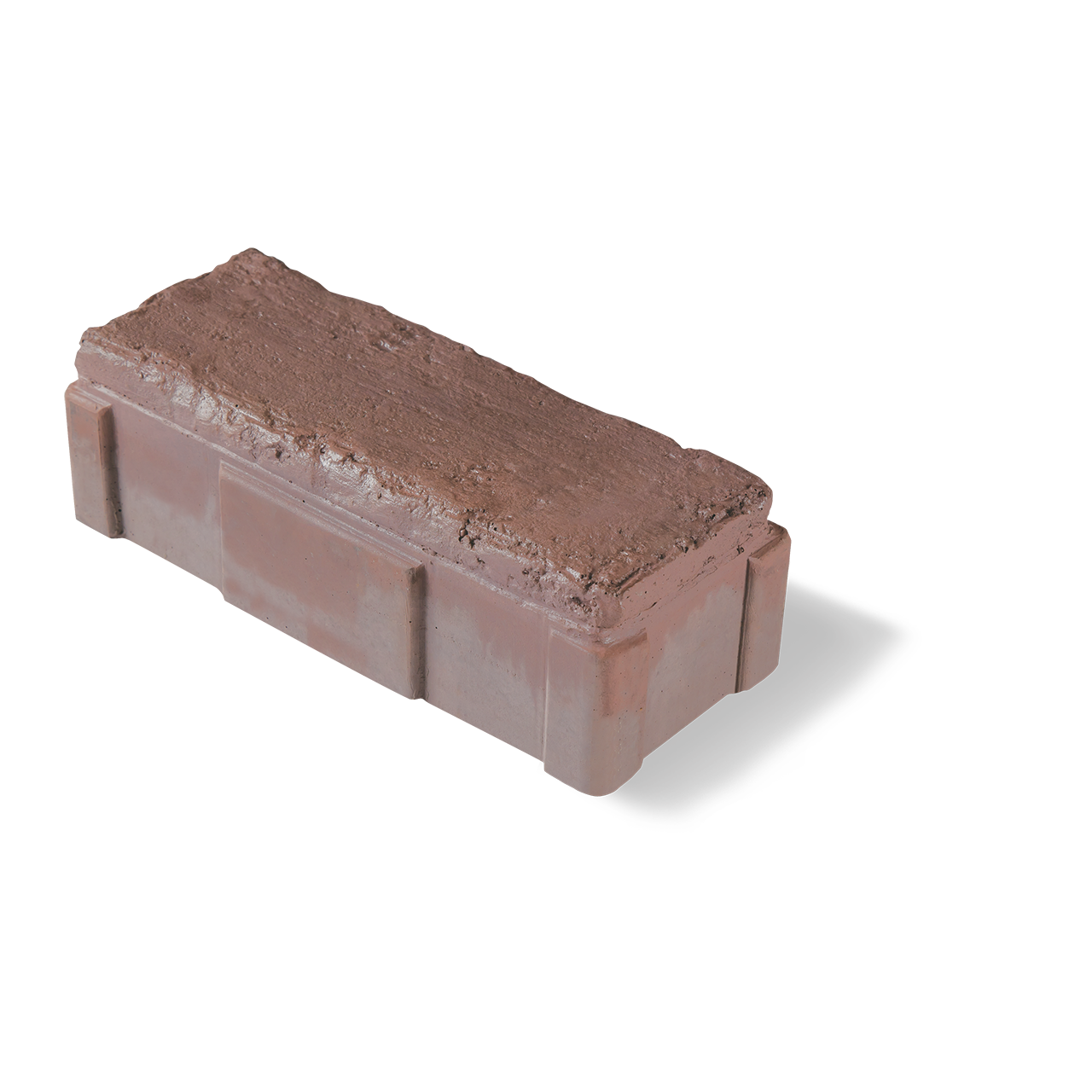

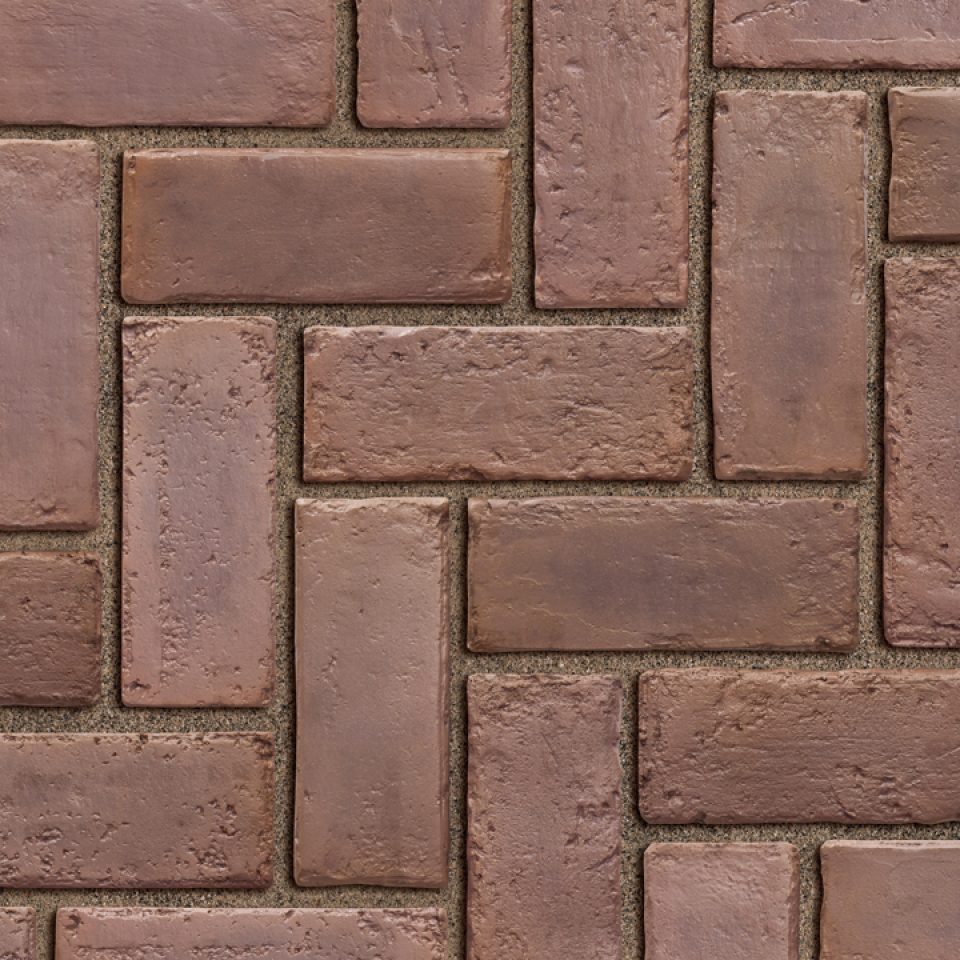

BURGUNDY RED

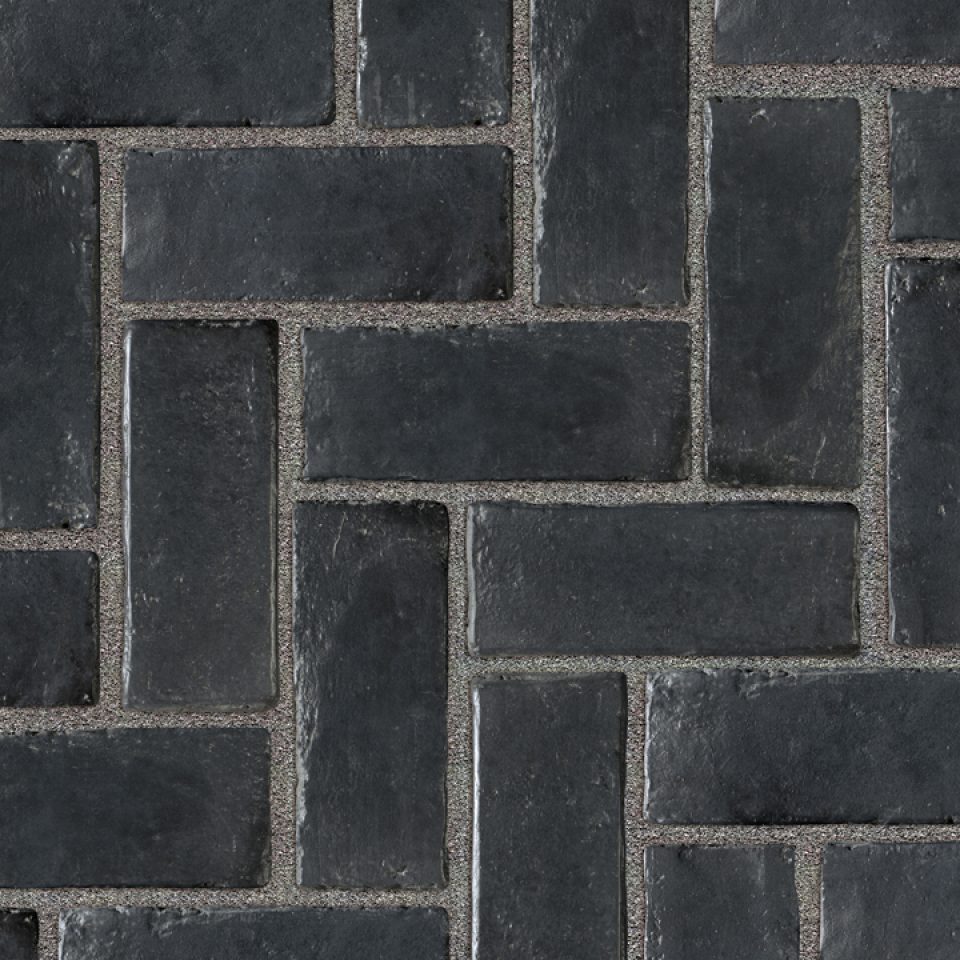

BASALT
BURNT CLAY

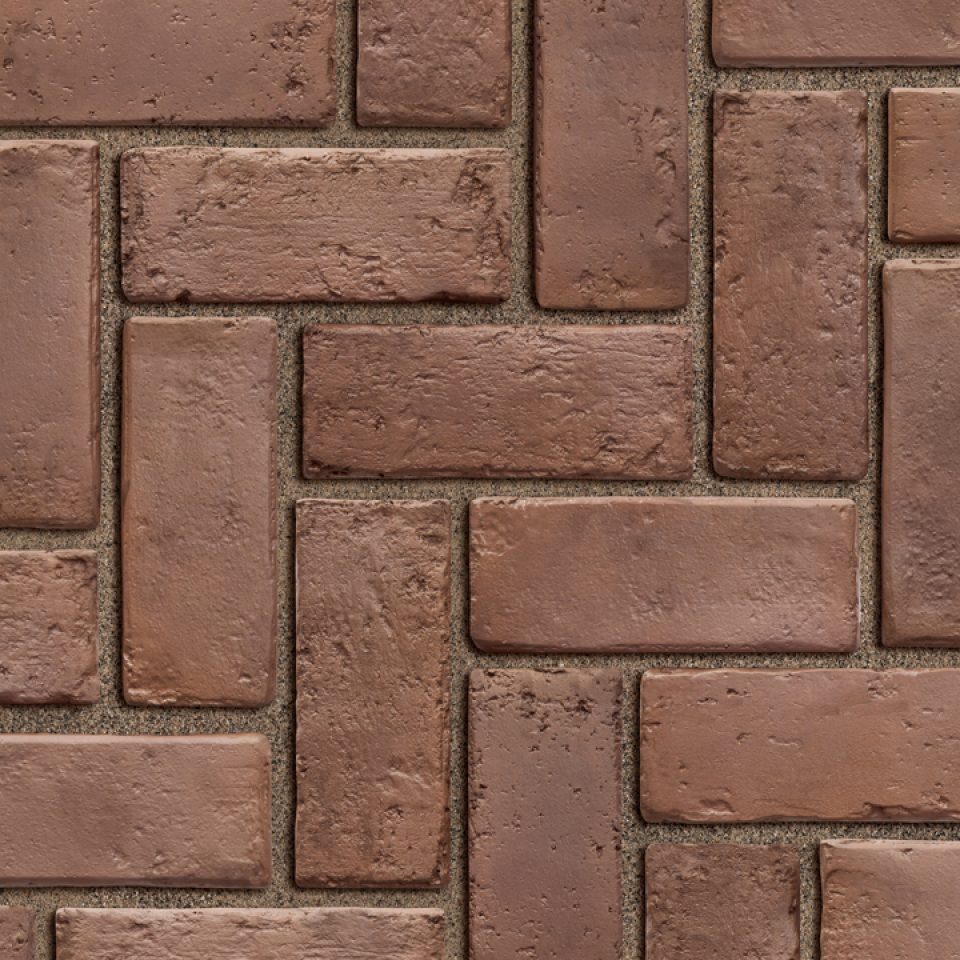

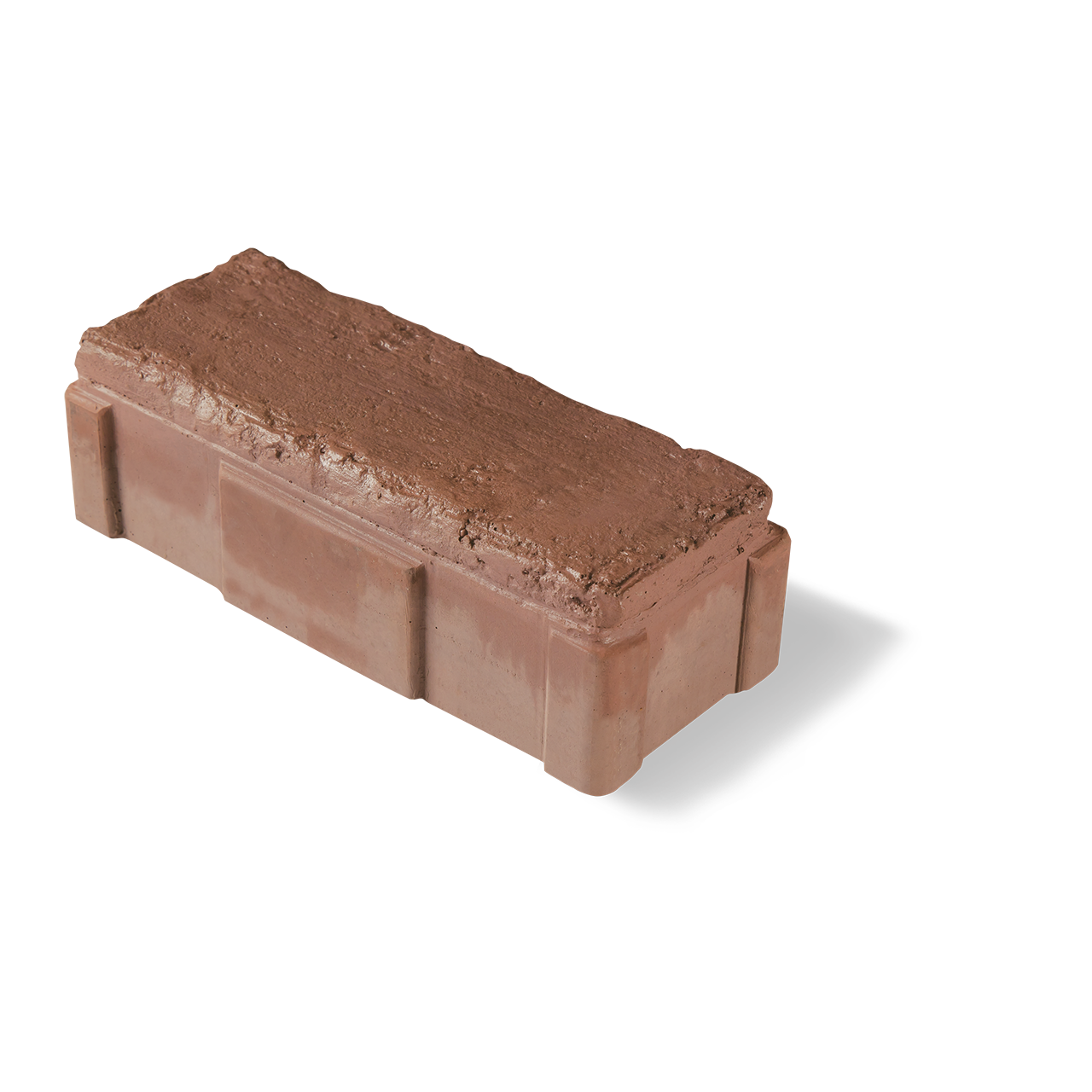

OLD OAK
Pick a color
HERITAGE RED
HERITAGE CLAY
BURGUNDY RED
BASALT
BURNT CLAY
OLD OAK
Jointing
Jointing

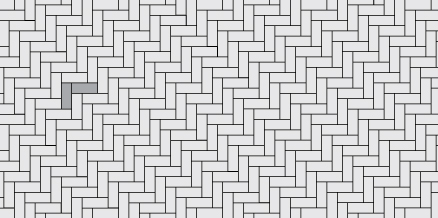

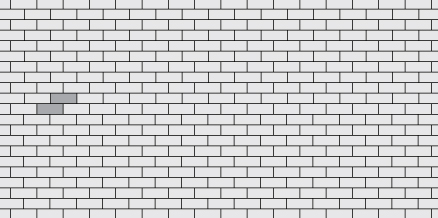

Laying Patterns

DETAIL MATTERS

The color of jointing sand you choose can have an impact on the overall look and feel of your paver patio, driveway or pool deck. Experiment with different options here.

Black Sand
Grey Sand
Tan Sand
Information
Information
Packaging

TOWN HALL®

Town Hall pavers combine the timeless beauty of historic clay bricks with the functionality, performance and colorfastness that only Elegance™pavers from Unilock can deliver. This paver can be used for both permeable and non-permeable projects.

Recommended Base Stabilization – one layer of DriveGrid™" stabilization grid between subgrade and base material. Recommended depth 8” to 10” below pavers for maximum stability and performance. Use under Standard Base or Permeable Base.

Standard Base – Min. 6” – 8” of ¾” Crusher Run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).

Standard Bedding Course – 1” thick of coarse sand– in accordance with ASTM-D2940 screeded over base.

Alternative Permeable Base – Min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together.)

Alternative Permeable Bedding Course – 1” thick of 1/4” clear open-graded chip stone – (ASTM No. 8) screeded over base.

Special Note: Concrete Direct Overlay – In some areas of the country and in some applications pavers are very successfully placed directly over concrete. Concrete as a base is in itself quite strong, but it can affect the structural integrity of the paver particularly in vehicular applications, where the concrete below is sub-par. The following considerations must be taken into account to insure that the concrete below the surface is ideal:

  1. Concrete integrity – concrete must be in good condition, and not crumbling
  2. Drainage slope – concrete below must be sloped away from all buildings and structures
  3. Drainage holes – In lowest areas of the concrete, drill 1” holes in concrete (on 12” centers) and fill holes with ¼” chip (ASTM No. 8)
  4. Base drainage - the area below the concrete must not be subject to frost movement
  5. Surface - surface must be totally smooth and flat equivalent to the desired finished surface
  6. Waterproofing - may be required when installing pavers over concrete where there is a basement or cold cellar below. Install an impervious rubber membrane over the surface prior to installing any pavers over the surface.
  7. Jointing Sand - Use an impervious polymeric sand when installing over concrete

Jointing Material and Joint Stabilization

All sands must meet ASTM C144 or C33 Specifications. For best appearance and optimal performance,, keep jointing materials approximately 1/8” below the chamfer (bevel edge) of the paver.

Good Option: Ordinary sharp jointing sand in accordance with ASTM C144 or C33. (Common name: Concrete Sand)

Best Option: Any polymeric sand or ordinary concrete sand stabilized by a water-based or solvent-based joint sand stabilizer sealer. Always follow manufacturer’s application specifications and requirements.

Handling – This product has no special handling requirements.

Edge Restraint - Always install an edge restraint around the perimeter of any paver installation not restrained by building structures. Spike-in edge restraints come in plastic and metal and work well for most applications. A concrete curb or a sub-surface concrete wedge can also be installed to retain the edge.

Paver Compaction - Always use a protective polymer pad on the bottom of your compactor when doing the final compaction of the pavers. An alternative is to use a rubber-roller compactor for the final compaction.

Cleaners – Any cleaner specifically designed for pavers may be used for color restoration or general cleaning. Follow manufacturer’s dilution rates and application procedures. Always test a small area to make sure the results are as expected.

 Sealers

  • Product may be sealed for aesthetic or cleanliness reasons but it is not required
  • Use any sealer approved for concrete pavers
  • Select type for desired aesthetics
  • Product must be cleaned before sealing
  • Always read and follow manufacturer’s application procedures
  • Always test a small area to make sure the results are as expected
SqFt Per BundleSqFt Per LayerPer Bundle LayerSoldier LnFt Per SqFtSoldier LnFt Per BundleSailor LnFt Per SqFtSailor LnFt Per BundleUnits Per SqFtUnits Per BundleUnits per LayerLbs Per LayerLbs Per BundleLbs Per UnitSoldier Lnft per LayerSoldier Lnft per UnitSailor Lnft per LayerSQFT per Unit
STANDARD
SqFt Per Bundle88.41
SqFt Per Layer11.05
Per Bundle Layer8
Soldier LnFt Per SqFt1.19
Soldier LnFt Per Bundle104.99
Sailor LnFt Per SqFt2.97
Sailor LnFt Per Bundle262.47
Units Per SqFt3.62
Units Per Bundle320
Units per Layer40
Lbs Per Layer361.00
Lbs Per Bundle2,888.00
Lbs Per Unit9.03
Soldier Lnft per Layer13.12
Soldier Lnft per Unit0.33
Sailor Lnft per Layer32.81
SQFT per Unit0.28
