SIENASTONE®

Bold and dramatic, this large scale wall block (smallest unit weighs 380lbs each) strikes an impressive profile when used for a heavy-duty retaining wall or as treads in large outdoor staircases. The long lines and split face of SienaStone makes it an attractive alternative to more utilitarian-looking wall blocks. Build gravity walls up to 10ft (3m) or grid reinforced walls up to 40ft (12m) high with proper engineering under typical conditions. Coping units are also available.

-
-

SIENASTONE®

Bold and dramatic, this large scale wall block (smallest unit weighs 380lbs each) strikes an impressive profile when used for a heavy-duty retaining wall or as treads in large outdoor staircases. The long lines and split face of SienaStone makes it an attractive alternative to more utilitarian-looking wall blocks. Build gravity walls up to 10ft (3m) or grid reinforced walls up to 40ft (12m) high with proper engineering under typical conditions. Coping units are also available.

Colors
Applications
Step
Structural Walls
Shape and size

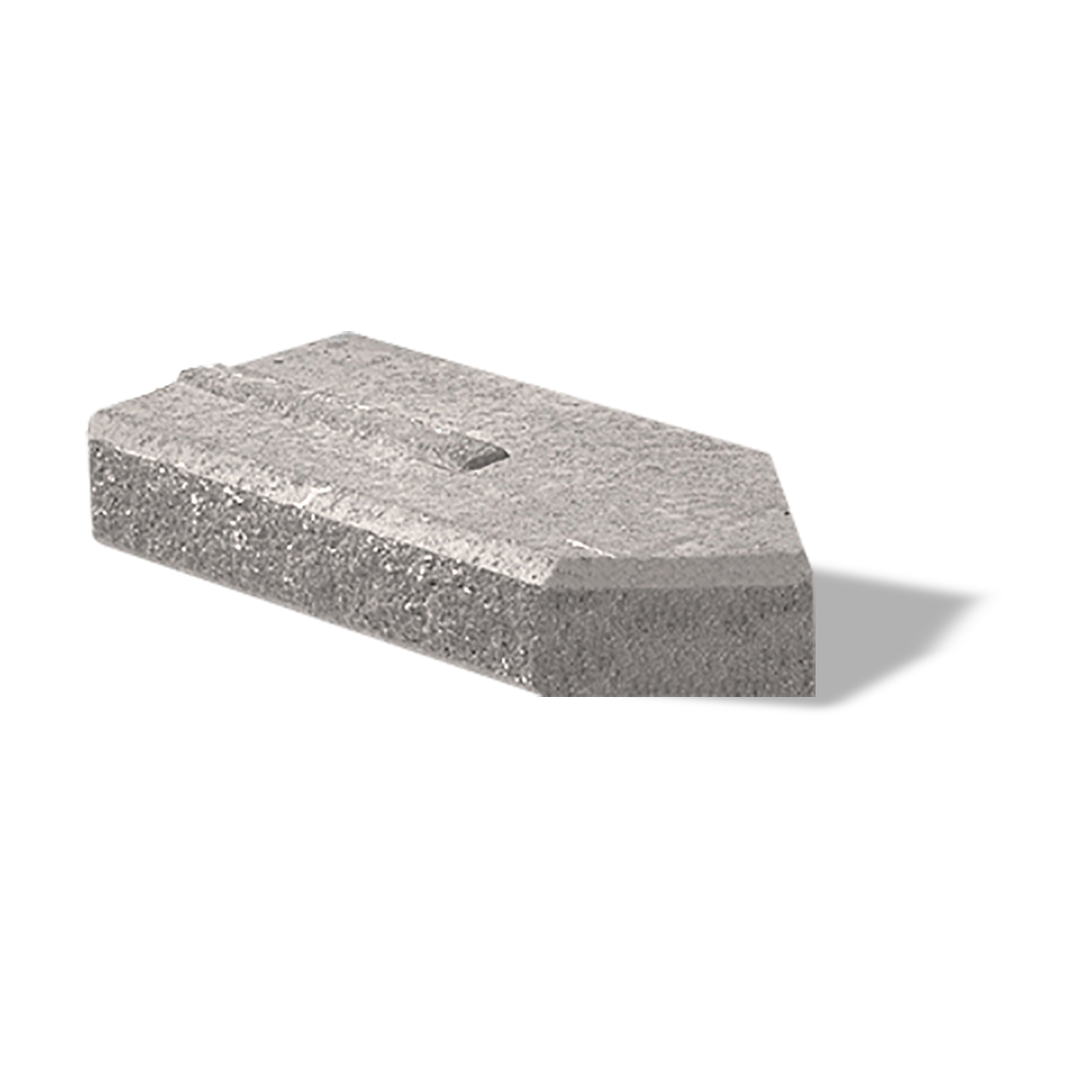

CORNER 45 DOUBLE
1,100mm x 185mm x 500mm
43 3/8" x 7 3/8" x 19 3/4"

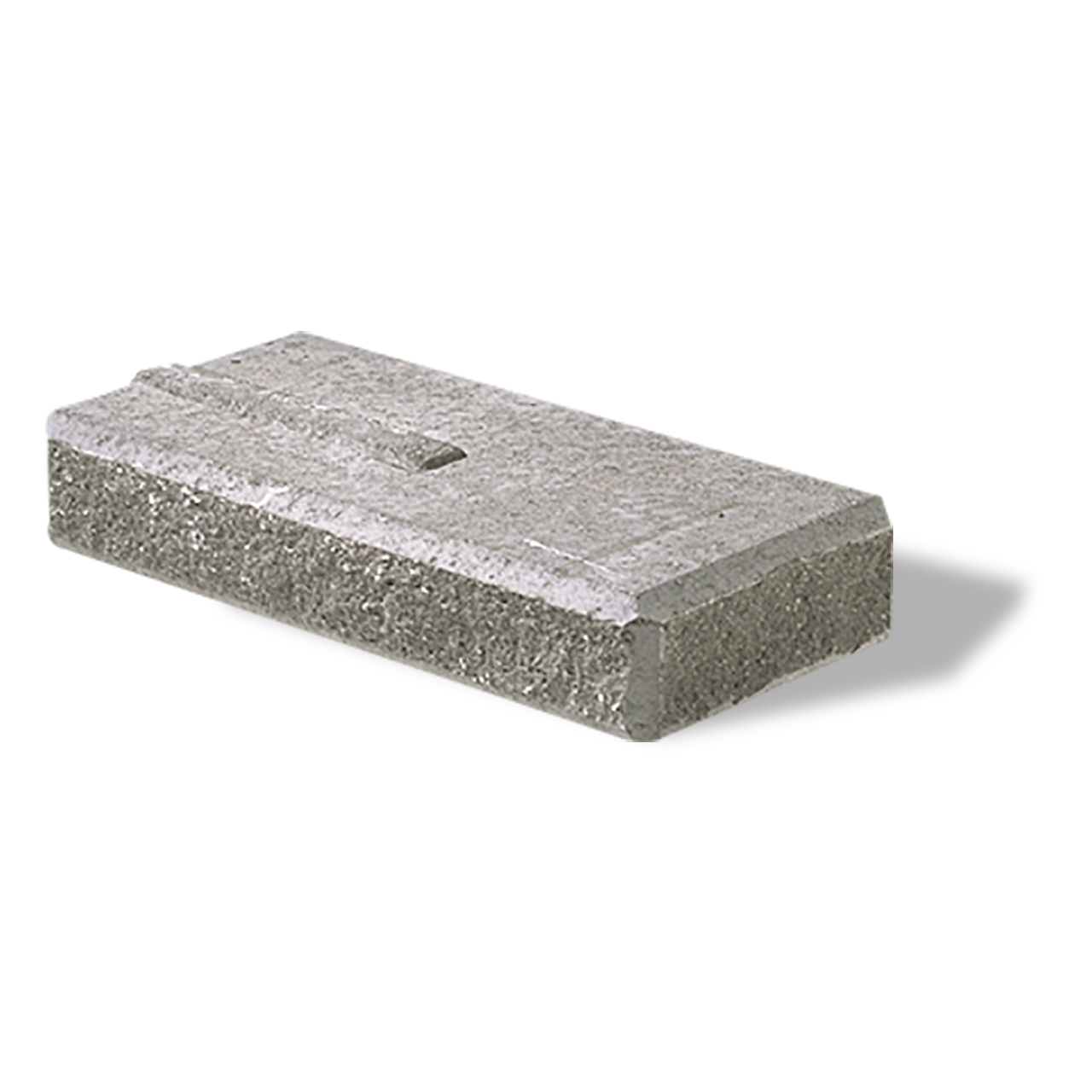

CORNER 90 DOUBLE
1,100mm x 185mm x 500mm
43 3/8" x 7 3/8" x 19 3/4"

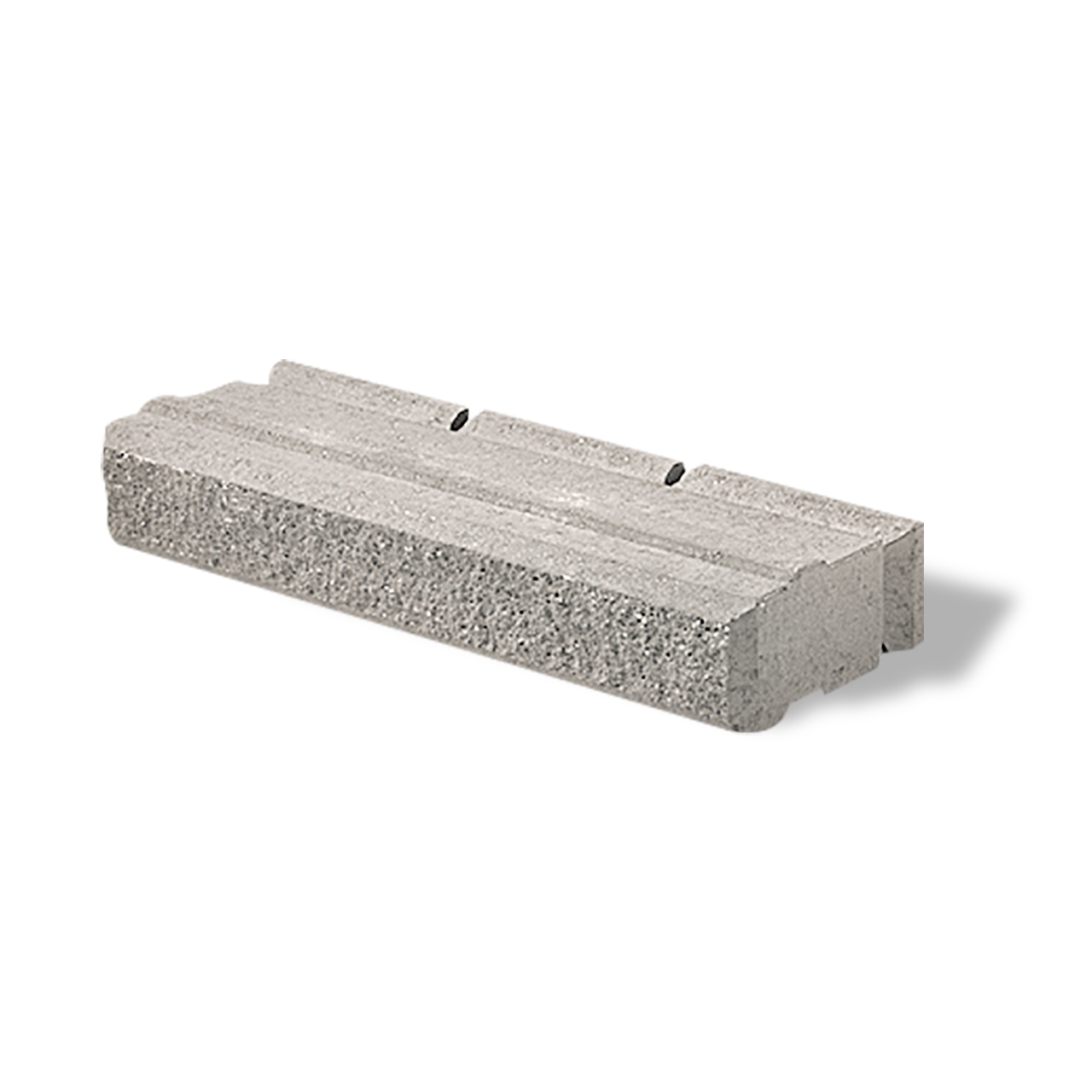

STANDARD 333"
1,200mm x 185mm x 333mm
47 1/4" x 7 3/8" x 13"

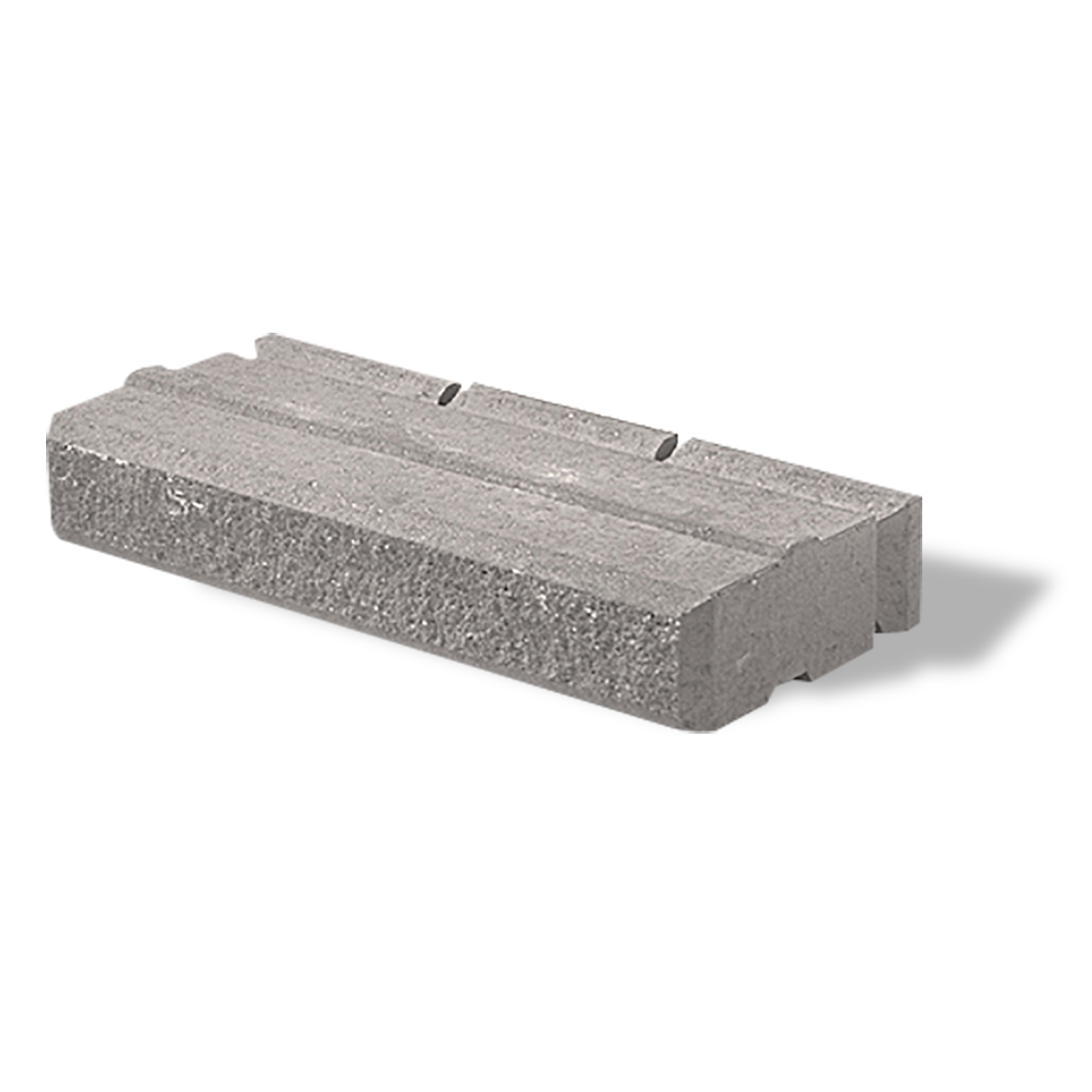

STANDARD 500"
1,200mm x 185mm x 500mm
47 1/4" x 7 3/8" x 19 3/4"
STANDARD 925"
1,200mm x 185mm x 925mm
47 1/4" x 7 3/8" x 36 1/2"

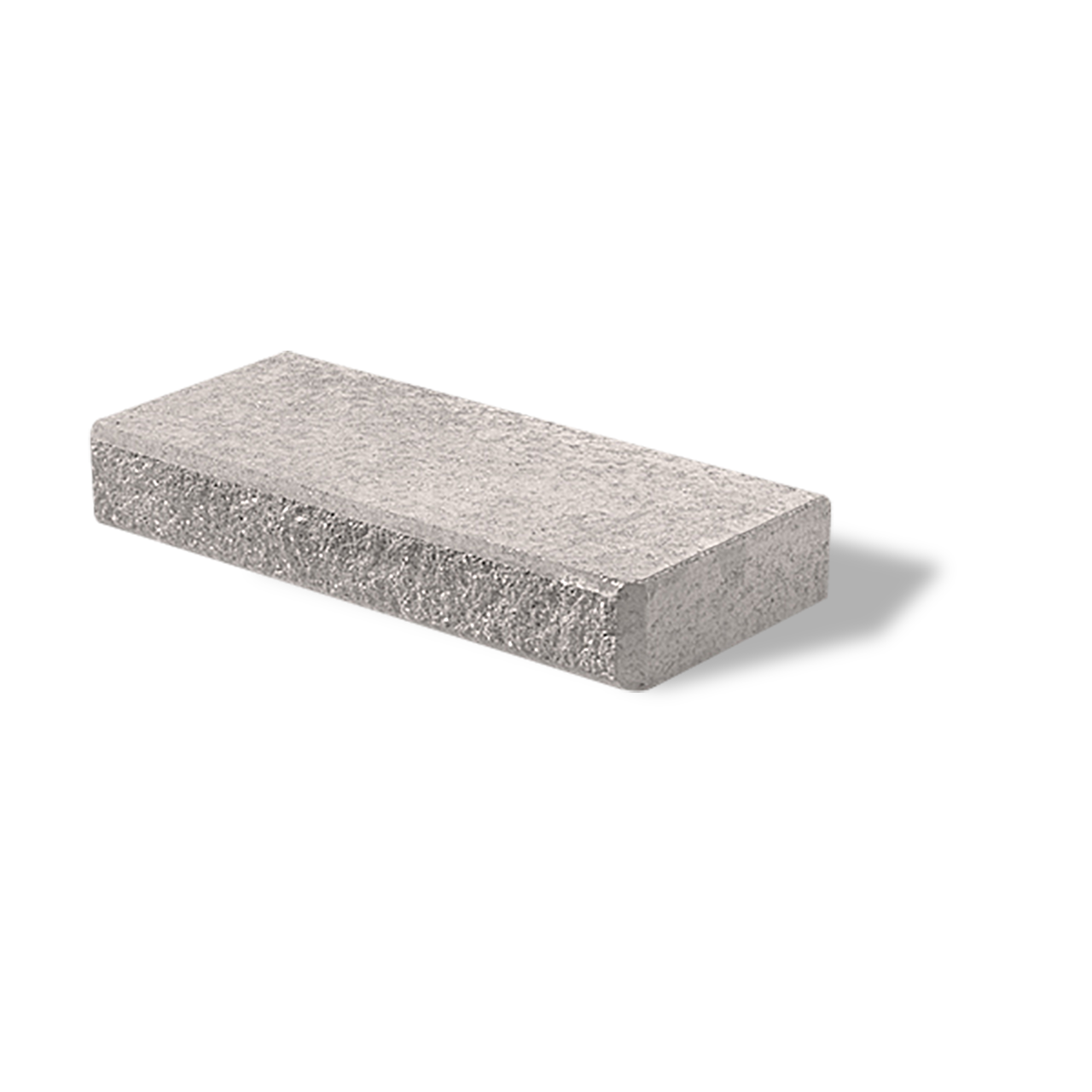

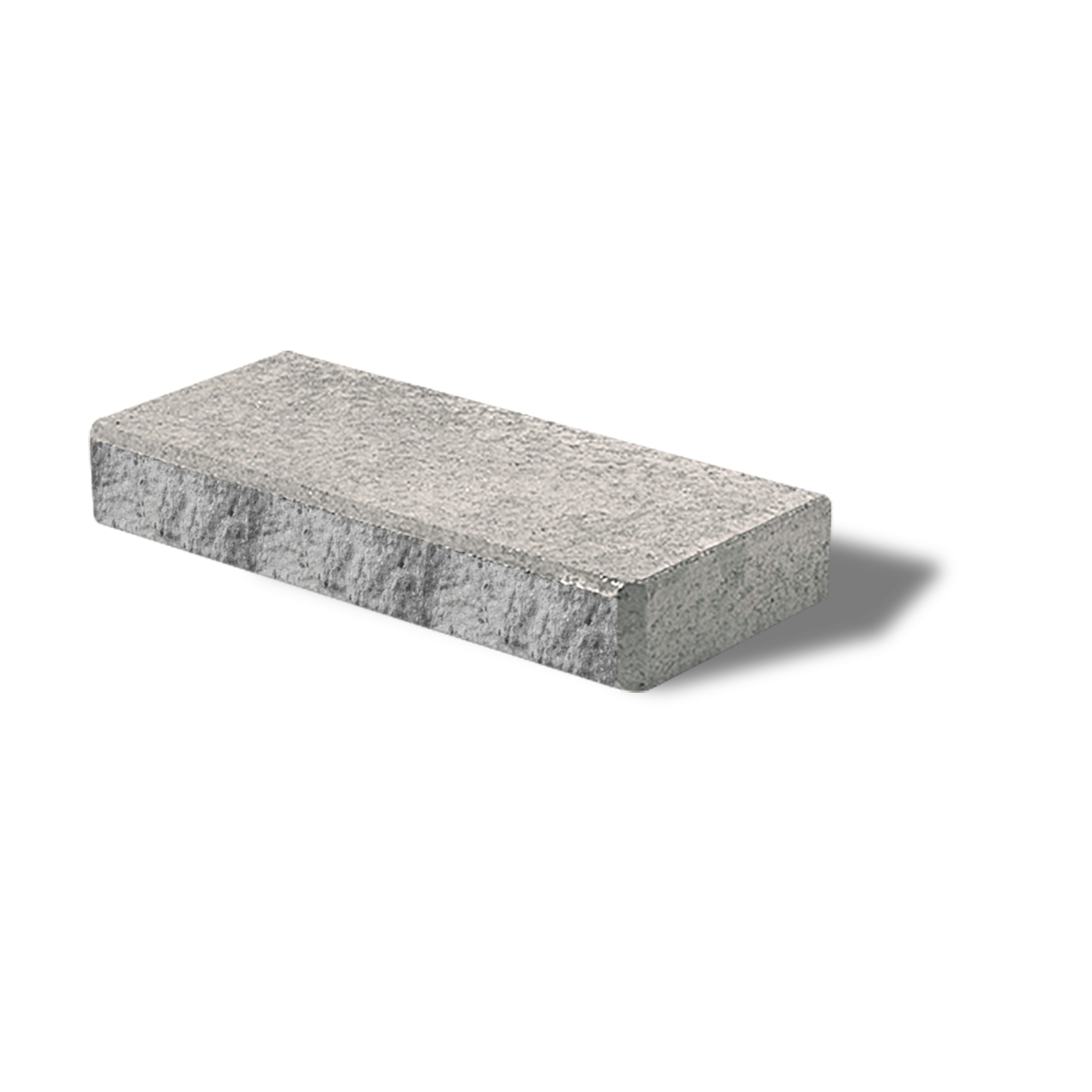

CLOSED-END COPING
1,200mm x 185mm x 500mm
47 1/4" x 7 3/8" x 19 3/4"
CLOSED-END COPING
1,200mm x 185mm x 500mm
47 1/4" x 7 3/8" x 19 3/4"
CLOSED-END COPING
1,200mm x 185mm x 500mm
47 1/4" x 7 3/8" x 19 3/4"
CLOSED-END COPING
1,200mm x 185mm x 500mm
47 1/4" x 7 3/8" x 19 3/4"
CLOSED-END COPING
1,200mm x 185mm x 500mm
47 1/4" x 7 3/8" x 19 3/4"

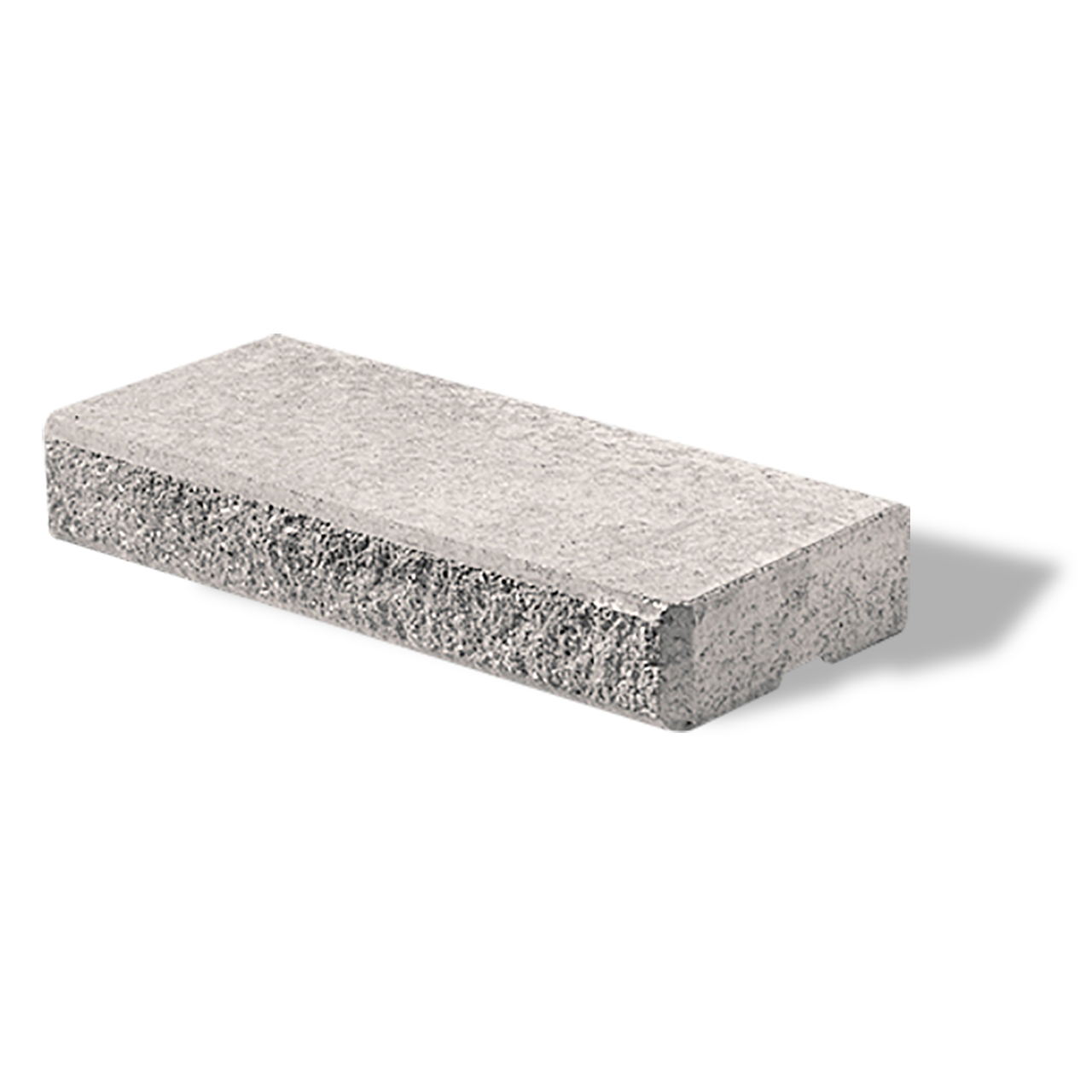

COPING
1,200mm x 185mm x 500mm
47 1/4" x 7 3/8" x 19 3/4"
Technologies
Technologies
Classic

Classic

Our budget-friendly, Unilock Classic pavers and walls are manufactured to exceed ASTM standards for quality and strength. Available in classic shapes and styles, these products utilize a traditional product mix of large and small aggregates that is consistent from top to bottom with color mixed throughout.

Our technologies
Colors
NATURAL
BROWN
NEVADA
MAHOGANY
GRANITE
Pick a color
NATURAL
BROWN
NEVADA
MAHOGANY
GRANITE
Information
Information
Packaging

SienaStone®

SienaStone is an engineered large module (min 500 lbs/250 kg ea.) retaining wall system with incredible capacities for both gravity walls and reinforced walls. SienaStone is mostly used in commercial applications or in residential applications where higher and stronger structural walls must be constructed.

Applications – Structural retaining walls for large embankments.

Capacity – Gravity walls up to 13’ (4m). Geogrid reinforced walls up to 39 ft. (12m).

Recommended Base Stabilization – one layer of DriveGrid stabilization grid between subgrade and base material. Use under Standard Base or Permeable Base.

Standard Base – Min. 6” – 8” of ¾” Crusher Run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).

Alternative Permeable Base – Min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together.)

Leveling – Install SienaStone directly on a compacted granular base. Install level end to end as well as front to back. Poured concrete leveling pads, reinforced with rebar, are also a great way to accomplish leveling, especially for larger installations. You must ensure that the concrete is poured and finished perfectly in order to achieve a good visual appearance.

Connection – features a tongue and groove connection. Use appropriate concrete adhesive for connection between units where the key has been removed or for corners. Always read adhesive manufacturers’ directions prior to gluing.

Handling – This is a mechanically placed wall system. Special clamps for lifting are available for use during project.

Coping - This wall requires the SienaStone specific coping. Coping attaches with tongue and groove connection. No adhesive required.

Layers per BundleLin Ft per Bundle - SoldierUnits per BundleUnits per LayerUnits per FcFtLbs per LayerLbs per BundleLbs per UnitLin Ft per Layer - SoldierLin Ft per Unit - SoldierFcFt per LayerFcFt per BundleFcFt per Unit
CLOSED-END COPINGSTANDARD 500"STANDARD 333"CORNER 45 DOUBLECOPINGCORNER 90 DOUBLESTANDARD 925"
Layers per Bundle3333333
Lin Ft per Bundle - Soldier23.702436 - 23.70 - 12
Units per Bundle6693633
Units per Layer2231211
Units per FcFt0.420.420.420.160.420.160.42
Lbs per Layer1140114011401050114011401140
Lbs per Bundle3420342034203150342034203420
Lbs per Unit570570380105057011401140
Lin Ft per Layer - Soldier7.90812 - 7.90 - 4
Lin Ft per Unit - Soldier3.9544 - 3.95 - 4
FcFt per Layer4.814.817.216.374.816.372.40
FcFt per Bundle14.4314.4321.6319.1114.4319.117.21
FcFt per Unit2.412.412.406.372.416.372.40
