SIENA EDGE^™

A complete segmental retaining wall system offering a linear modern aesthetic to any landscape project. The unique appearance of SienaEdge also makes it ideal for smaller landscape applications such as garden walls, raised patios or planters.

Request a contractor Request a catalog

Request a contractor Request a catalog

Colors

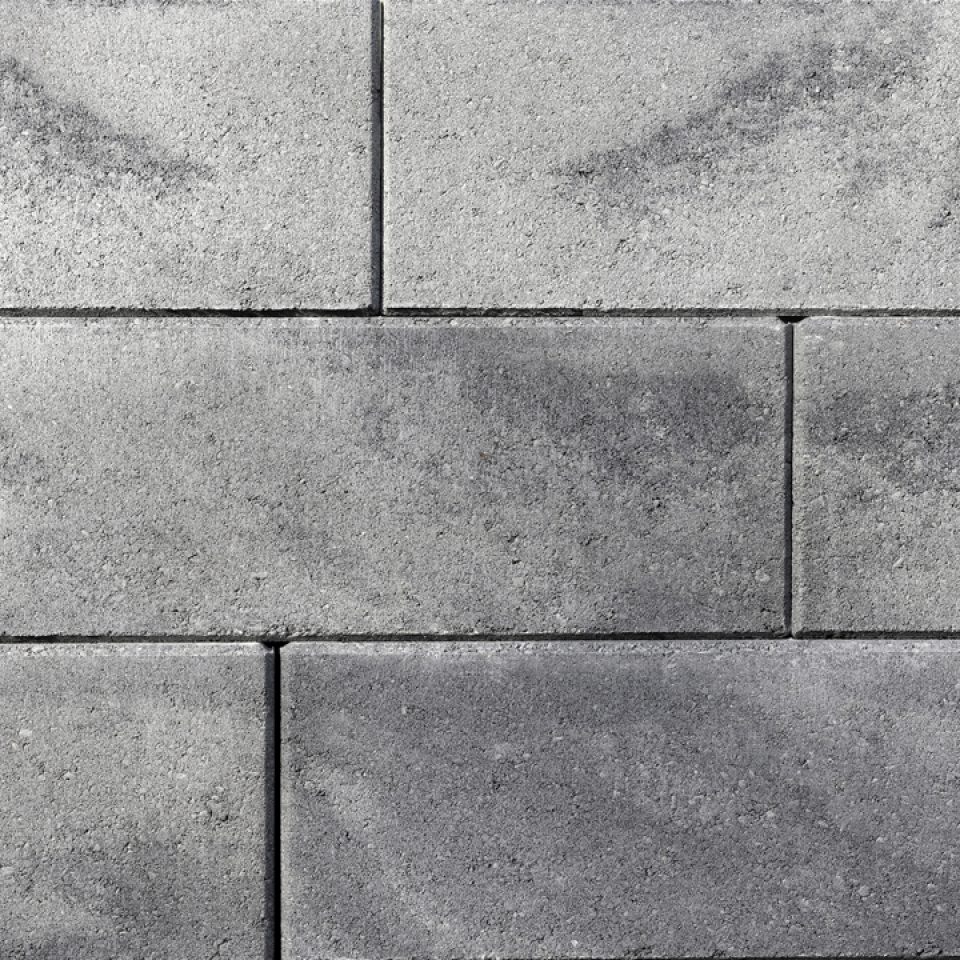

GRANITE

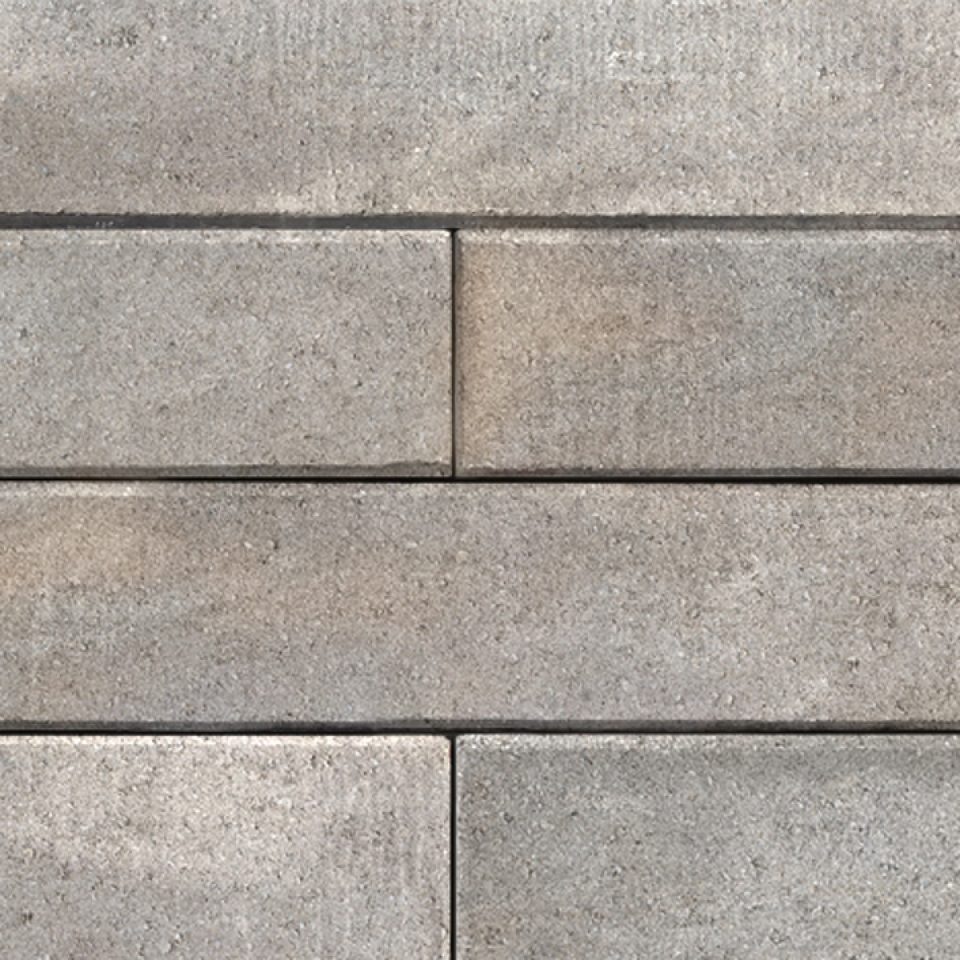

ALMOND GROVE

GRANITE

Shape and size

SINGLE-UNIT BUNDLE

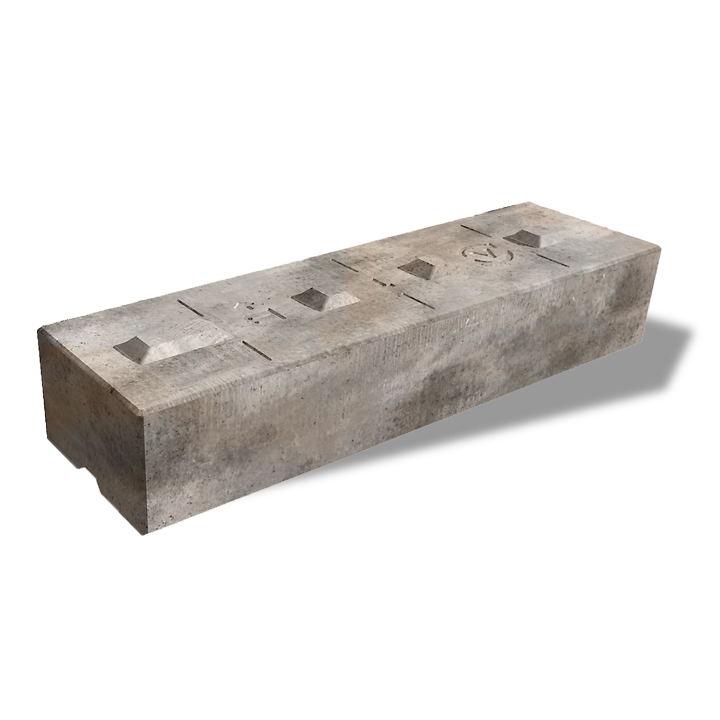

STANDARD/CORNER
1,000mm x 180mm x 290mm
39 3/8" x 7" x 11 1/2"

Applications: Retaining Wall, Garden Wall, Outdoor Kitchen, Fire Feature, Seat Wall, Pillars

SINGLE-UNIT BUNDLE

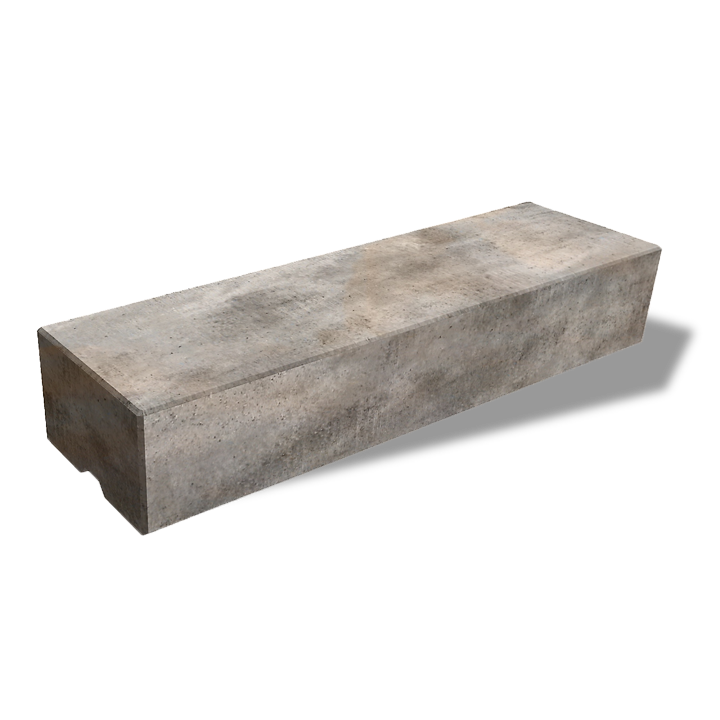

COPING
1,000mm x 180mm x 290mm
39 3/8" x 7" x 11 1/2"

Applications: Retaining Wall, Garden Wall, Seat Wall, Step

We’re Here To Help

We make it easy to get inspired, plan, and start your project.

See our Catalog 
of Dreams

Explore ideas, spark inspiration, and see our full range of Unilock products.

Explore Catalog of Dreams

Get your free
estimate today

Partner with a Unilock Authorized Contractor for best-in-class results.

Request your free estimate

Plan your dream project
beautifully

Excited to start a new project?
 Get our Project Planning Guide and plan with ease.

Download Project Planning Guide

Technical info

Laying patterns

SienaEdge is a modular concrete retaining wall system that is used to stabilize and contain earth embankments, large and small. The SienaEdge wall system is a fully-engineered, structural retaining wall system constructed as either a "gravity" wall (no geogrid) or a geogrid-reinforced wall. It can be used for applications up to 30ft (9m) or even higher with proper design. The ideally-sized block provides fast, efficient machine-placed installation, while still offering a manageable weight for manual maneuvering if required. It eliminates complex estimations and ordering with the innovative multifunction block design, integrating standards & corners into the same block. The closed-end Standard block is ideal for building corners, ending two-sided seat walls and is able to create both vertical or battered walls, all with one block.

Unit Thickness (mm)

Layers per Bundle

FcFt per Bundle

FcFt per Layer

FcFt per Unit

Units per Bundle

Units per Layer

Lbs per Bundle

Lbs per Layer

Lbs per Unit

STANDARD/CORNER

180

23.25

7.75

1.94

3,086.45

1,028.82

257.20

COPING

180

23.25

7.75

1.94

3,086.45

1,028.82

257.20
