PORCELAIN

Having led the landscape industry with the best selection of manufactured hardscape products, Unilock now offers an impressive line of premium Porcelain Tile. Suitable for wood deck and concrete overlays, Unilock porcelain tile offers an array of unique colors and design options.

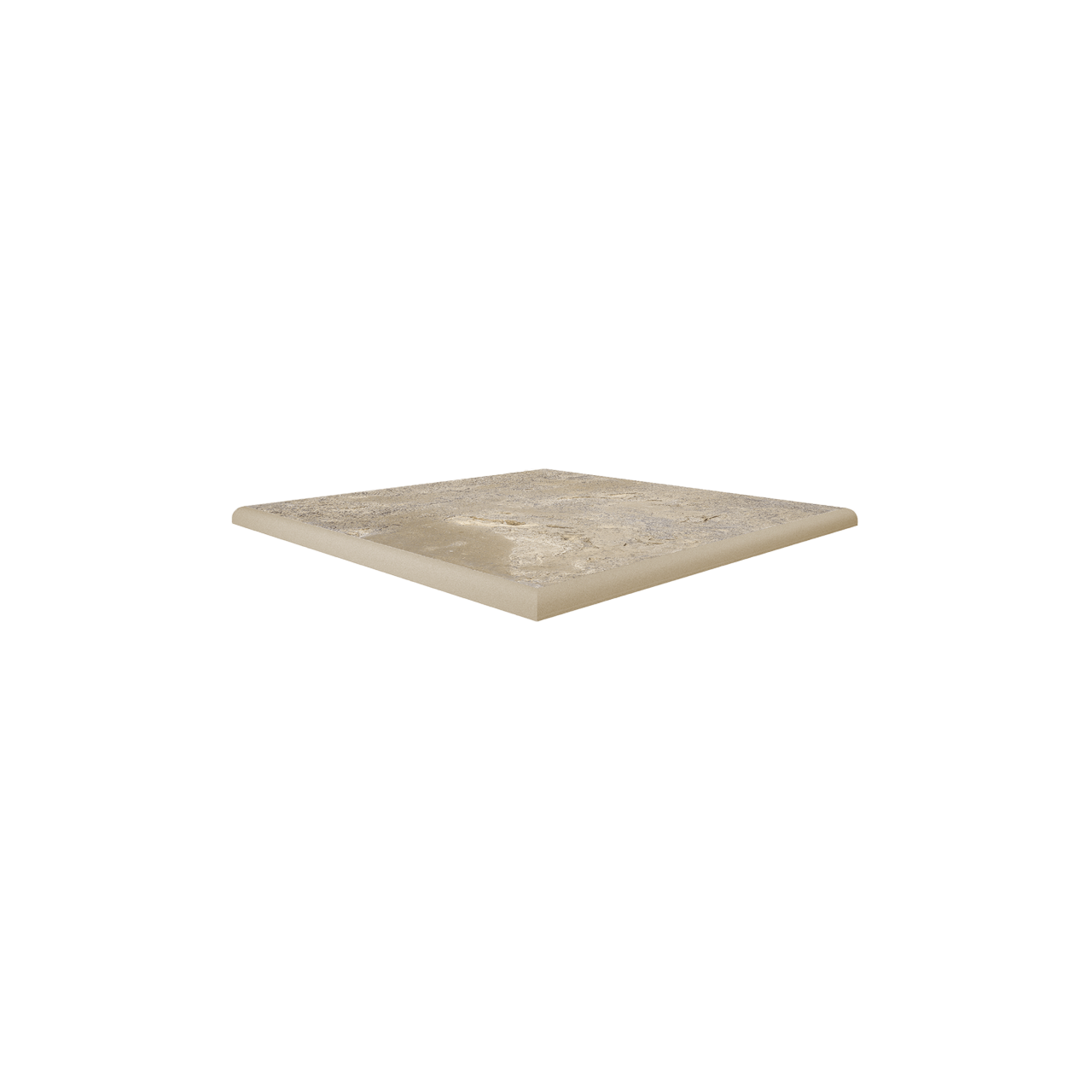

Porcelain 600x600x20 TravstoneNoce Swatch2
-
Porcelain 600x600x20 TravstoneNoce Swatch2
-

PORCELAIN

Having led the landscape industry with the best selection of manufactured hardscape products, Unilock now offers an impressive line of premium Porcelain Tile. Suitable for wood deck and concrete overlays, Unilock porcelain tile offers an array of unique colors and design options.

Colors
Applications
Pedestal or Overlay
Pedestrian e1632317129849
Residential Pedestrian
Shape and size
Sold individually

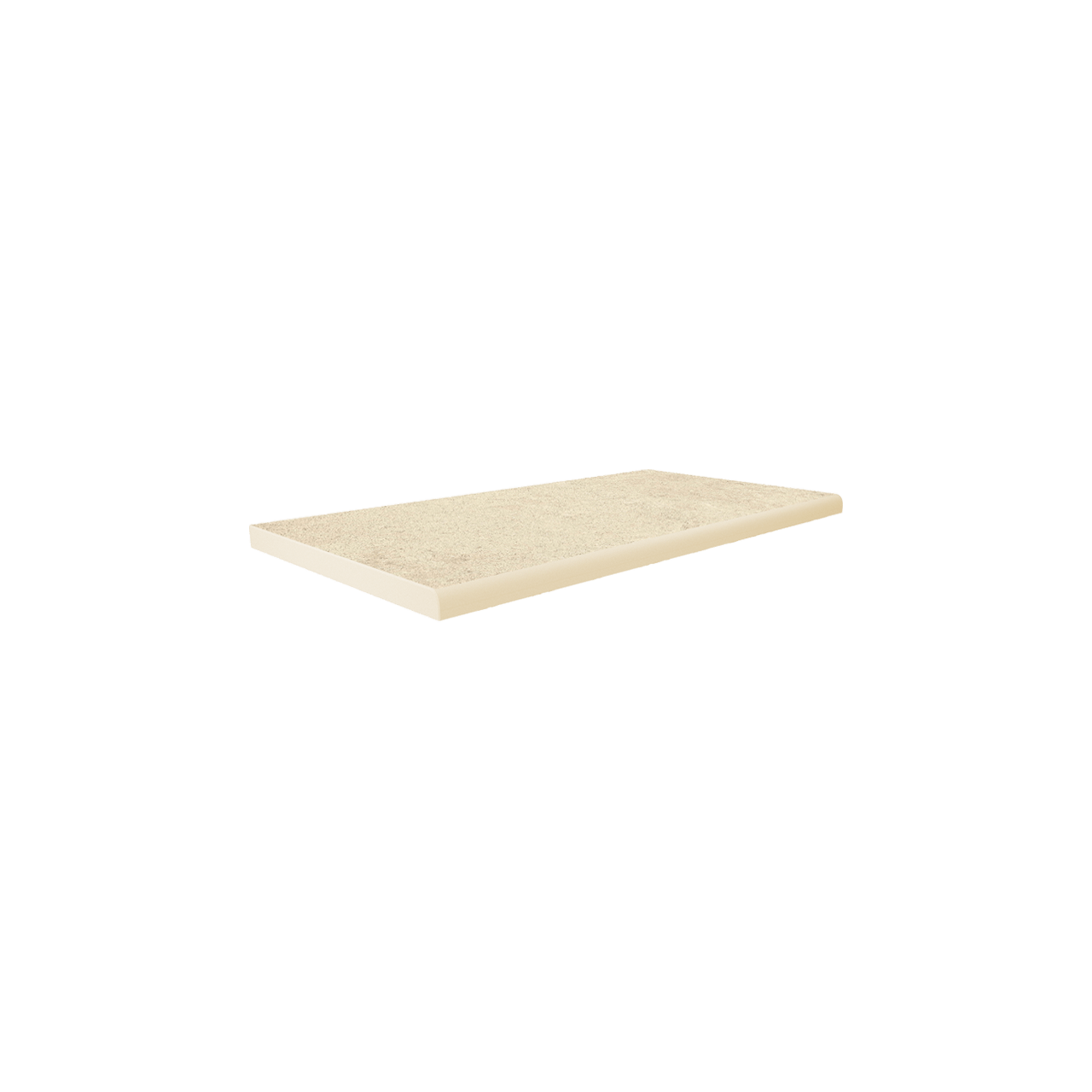

16"X32"

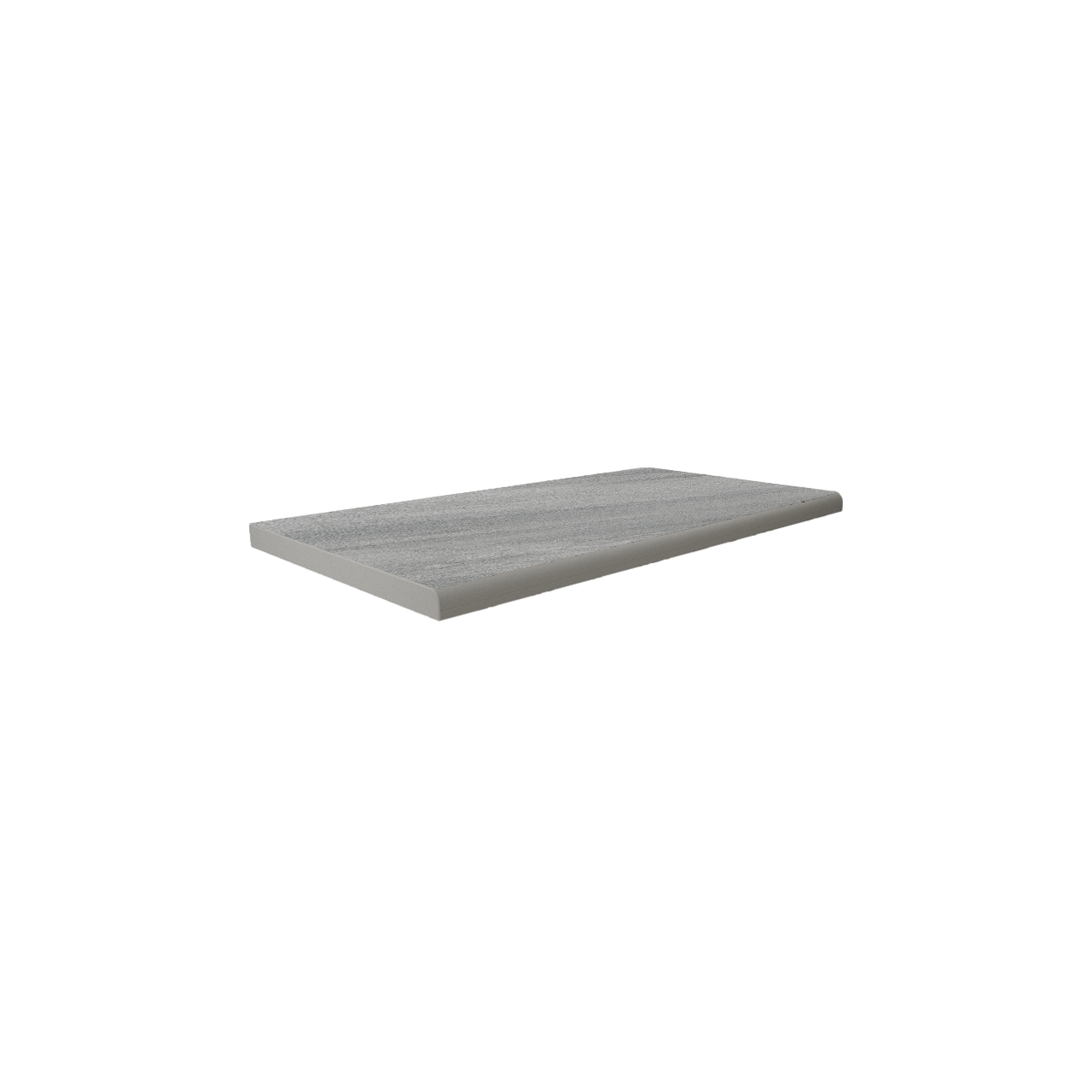

400mm x 800mm x 20mm
15 3/4" x 31 1/2" x 0 7/8"
16"X32"
400mm x 800mm x 20mm
15 3/4" x 31 1/2" x 0 7/8"
16"X32"
400mm x 800mm x 20mm
15 3/4" x 31 1/2" x 0 7/8"
16"X32"
400mm x 800mm x 20mm
15 3/4" x 31 1/2" x 0 7/8"
16"X32"
400mm x 800mm x 20mm
15 3/4" x 31 1/2" x 0 7/8"
16"X32"
400mm x 800mm x 20mm
15 3/4" x 31 1/2" x 0 7/8"
16"X32"
400mm x 800mm x 20mm
15 3/4" x 31 1/2" x 0 7/8"

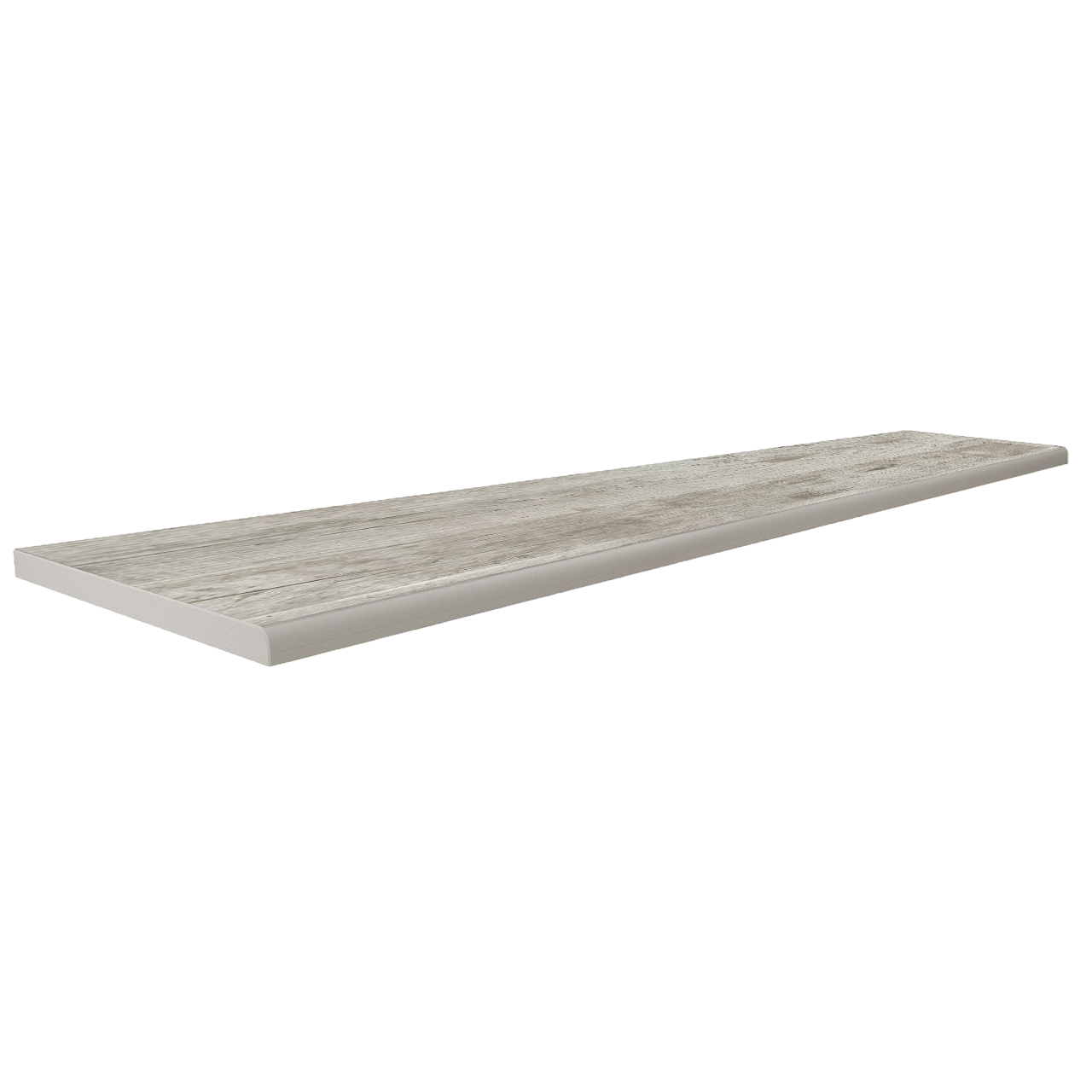

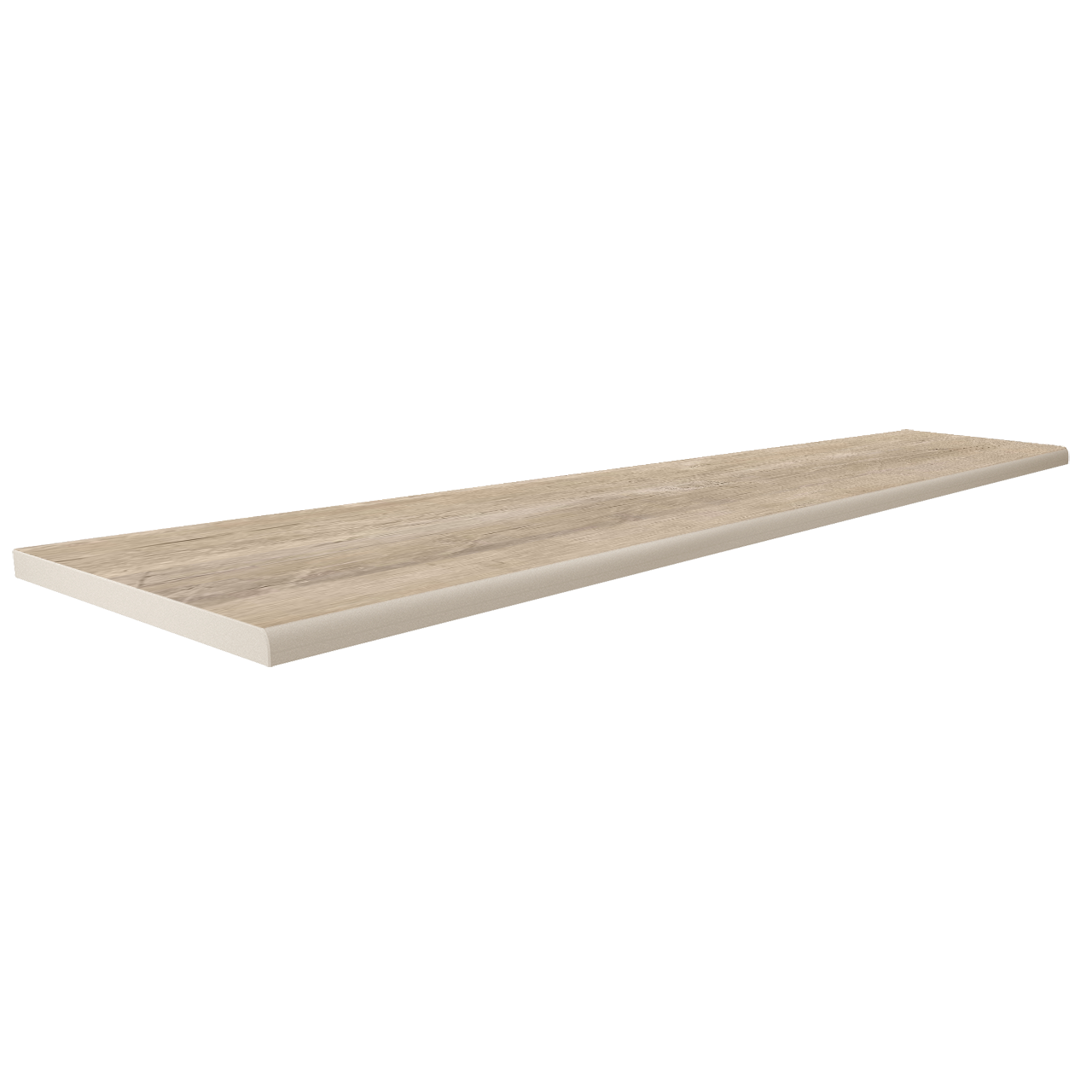

16"X48"
400mm x 1,200mm x 20mm
15 3/4" x 47 1/4" x 0 7/8"
16"X48"
400mm x 1,200mm x 20mm
15 3/4" x 47 1/4" x 0 7/8"
16"X48"
400mm x 1,200mm x 20mm
15 3/4" x 47 1/4" x 0 7/8"

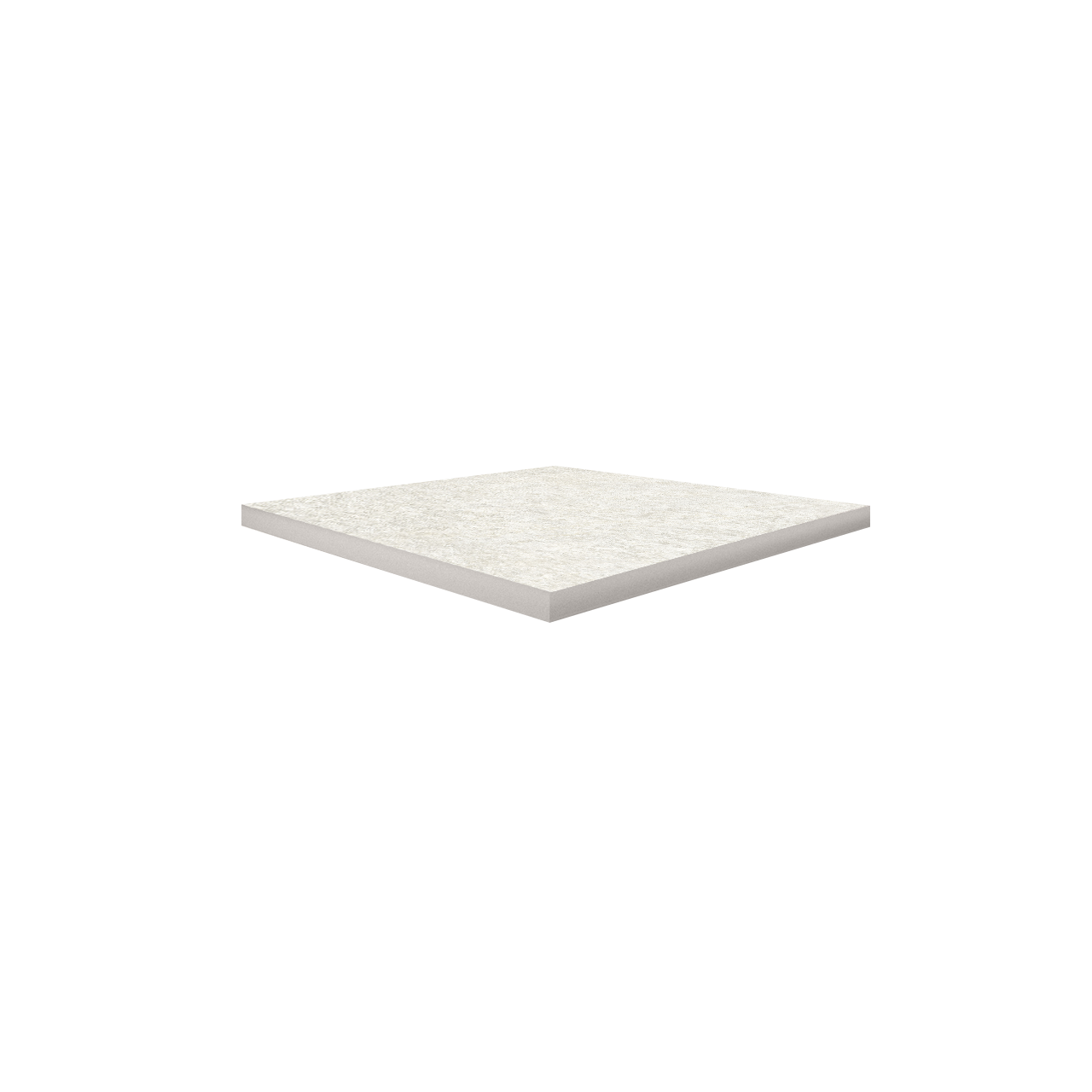

24"X24"

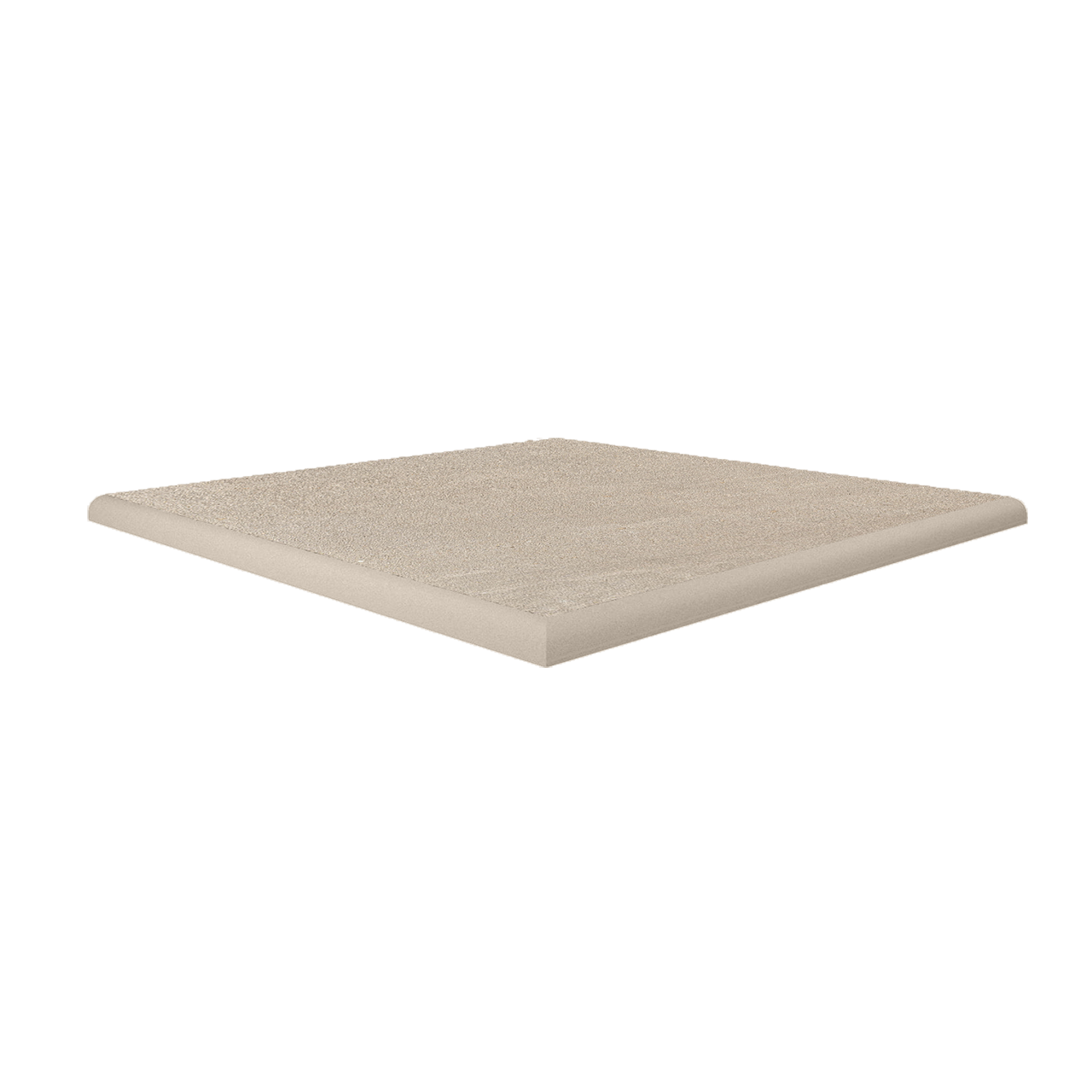

600mm x 600mm x 20mm
23 5/8" x 23 5/8" x 0 7/8"
24"X24"
600mm x 600mm x 20mm
23 5/8" x 23 5/8" x 0 7/8"
24"X24"
600mm x 600mm x 20mm
23 5/8" x 23 5/8" x 0 7/8"
24"X24"
600mm x 600mm x 20mm
23 5/8" x 23 5/8" x 0 7/8"
24"X24"
600mm x 600mm x 20mm
23 5/8" x 23 5/8" x 0 7/8"
24"X24"
600mm x 600mm x 20mm
23 5/8" x 23 5/8" x 0 7/8"
24"X24"
600mm x 600mm x 20mm
23 5/8" x 23 5/8" x 0 7/8"
24"X24"
600mm x 600mm x 20mm
23 5/8" x 23 5/8" x 0 7/8"
24"X24"
600mm x 600mm x 20mm
23 5/8" x 23 5/8" x 0 7/8"
24"X24"
600mm x 600mm x 20mm
23 5/8" x 23 5/8" x 0 7/8"
24"X24"
600mm x 600mm x 20mm
23 5/8" x 23 5/8" x 0 7/8"
24"X24"
600mm x 600mm x 20mm
23 5/8" x 23 5/8" x 0 7/8"
24"X24"
600mm x 600mm x 20mm
23 5/8" x 23 5/8" x 0 7/8"
24"X24"
600mm x 600mm x 20mm
23 5/8" x 23 5/8" x 0 7/8"
24"X24"
600mm x 600mm x 20mm
23 5/8" x 23 5/8" x 0 7/8"
24"X24"
600mm x 600mm x 20mm
23 5/8" x 23 5/8" x 0 7/8"
Random Bundle
12"X12"
300mm x 300mm x 20mm
11 7/8" x 11 7/8" x 0 7/8"
12"X24"
300mm x 600mm x 20mm
11 7/8" x 23 5/8" x 0 7/8"
24"X24"
600mm x 600mm x 20mm
23 5/8" x 23 5/8" x 0 7/8"
12"X12"
300mm x 300mm x 20mm
11 7/8" x 11 7/8" x 0 7/8"
12"X24"
300mm x 600mm x 20mm
11 7/8" x 23 5/8" x 0 7/8"
24"X24"
600mm x 600mm x 20mm
23 5/8" x 23 5/8" x 0 7/8"

Product Gallery

Porcelain Patio Travstone Noce Beige 0078
Colors
TRAVSTONE NOCE

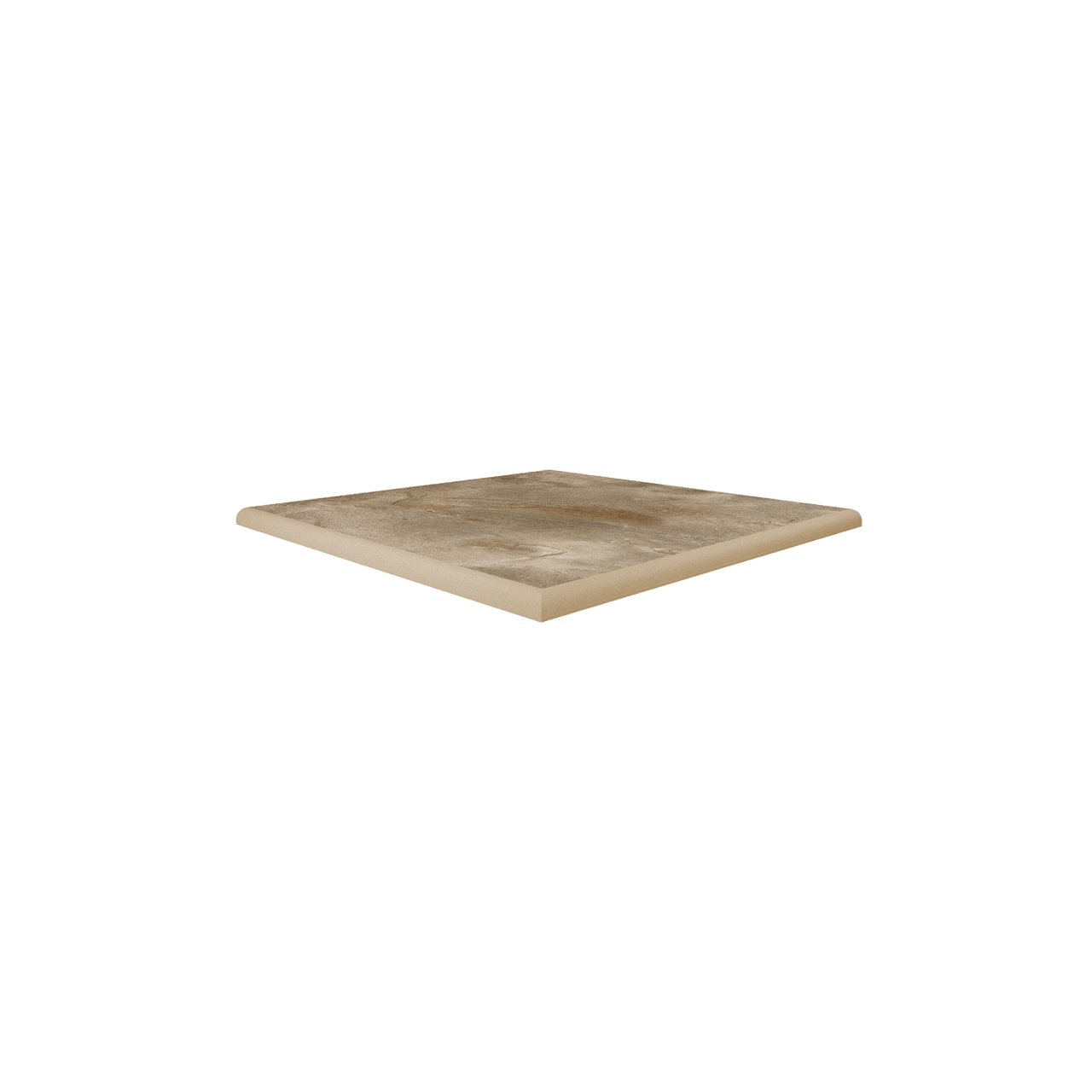

GOTHAM BEIGE

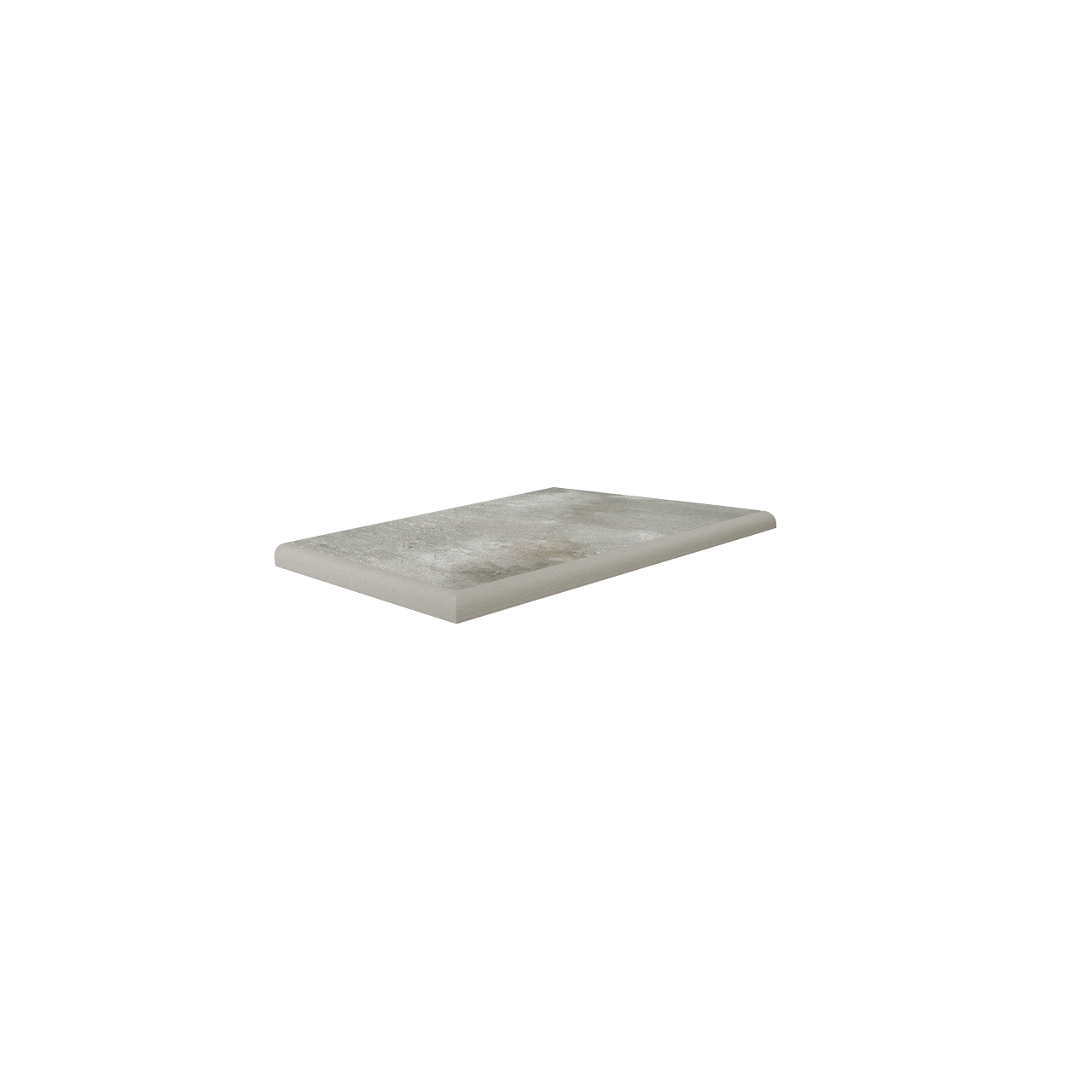

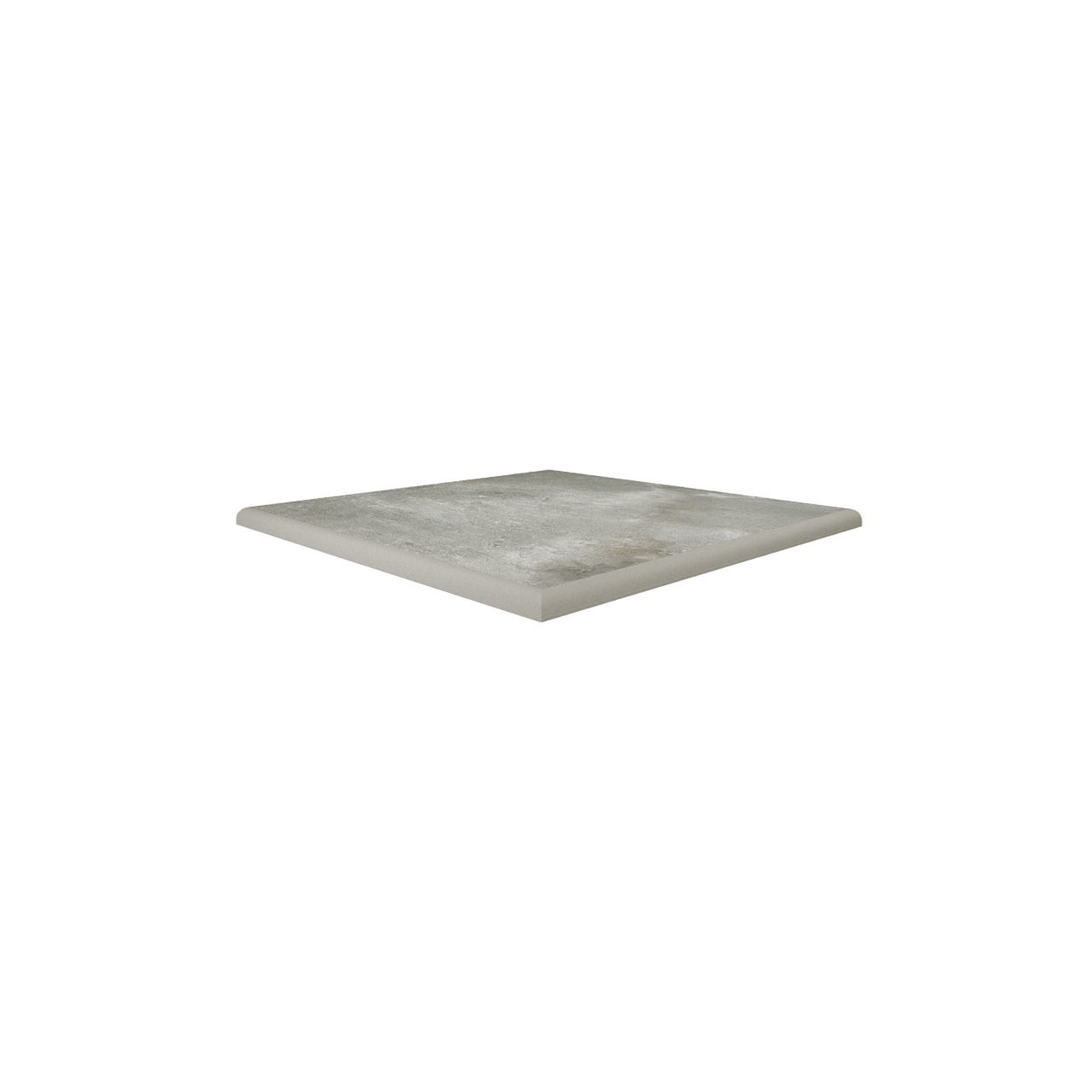

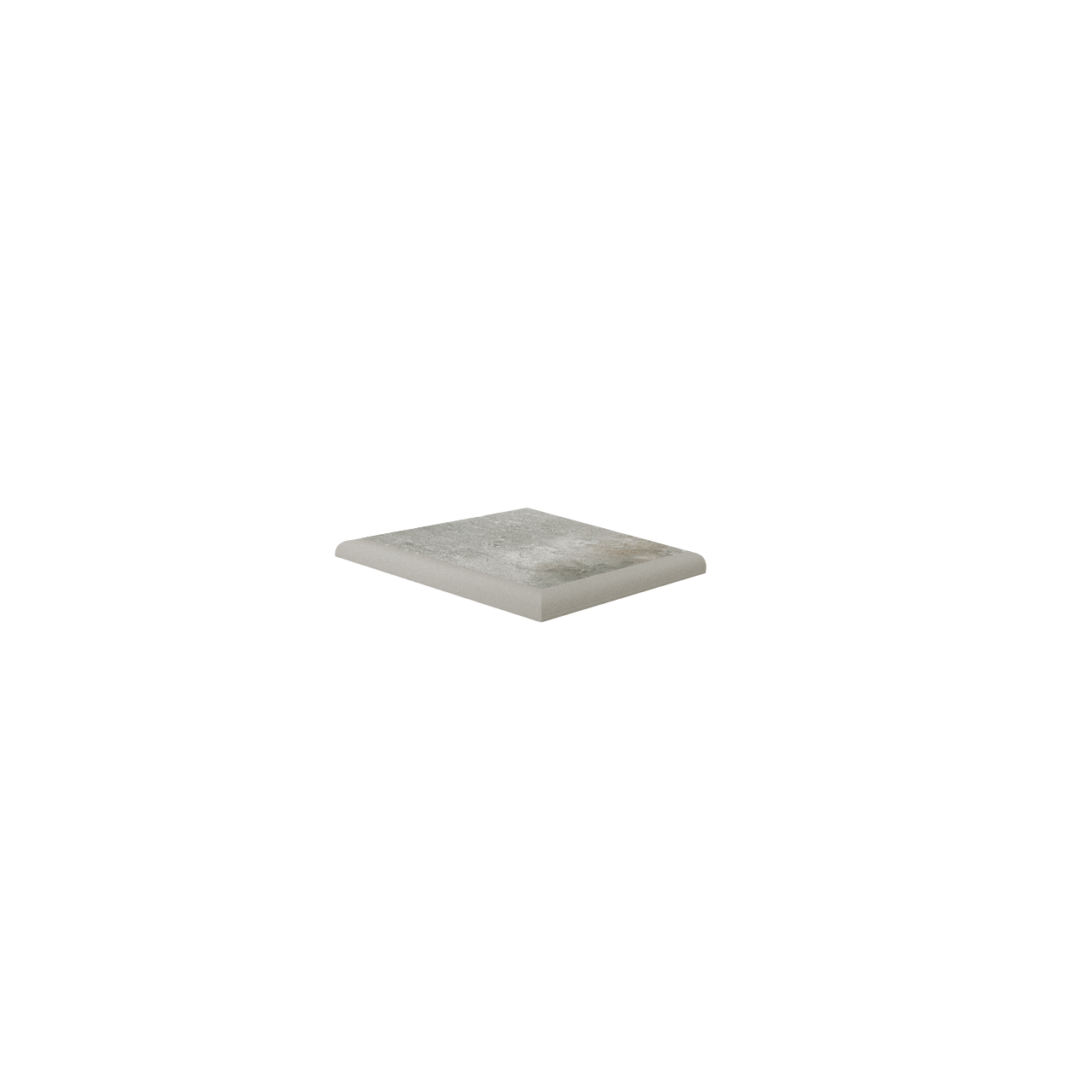

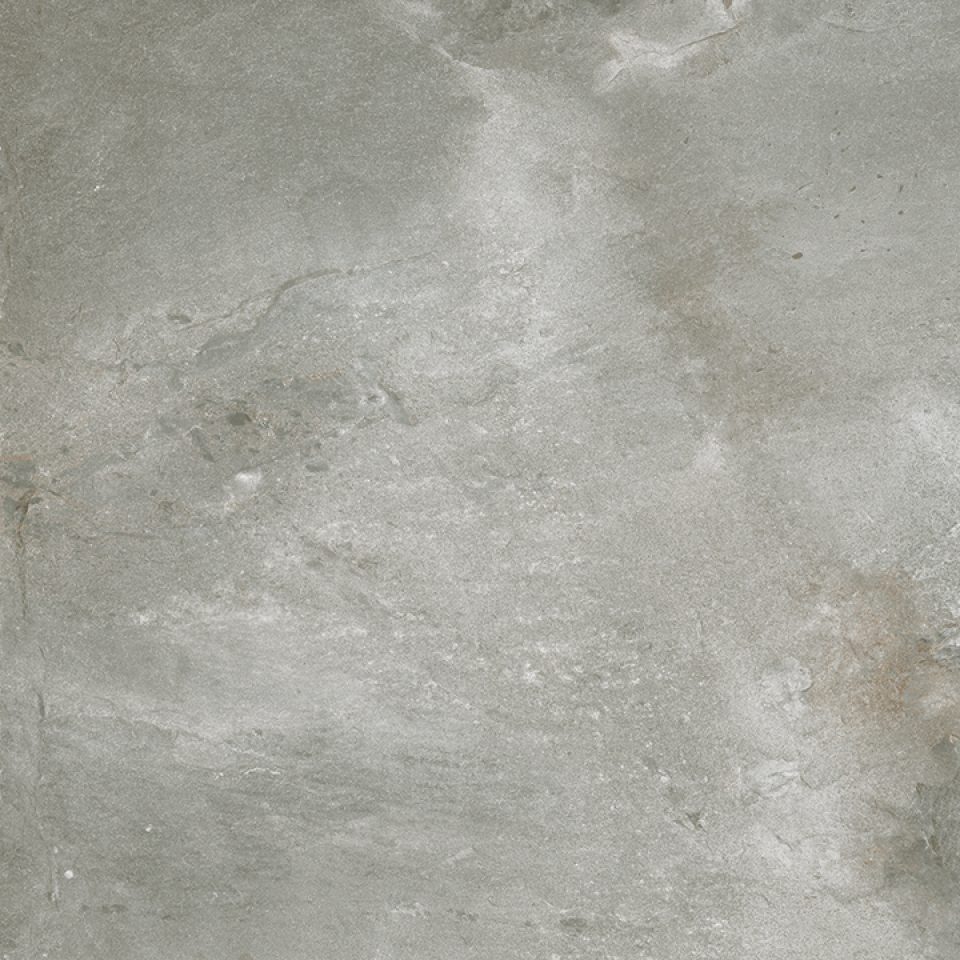

GOTHAM GREY
TRAVSTONE BEIGE

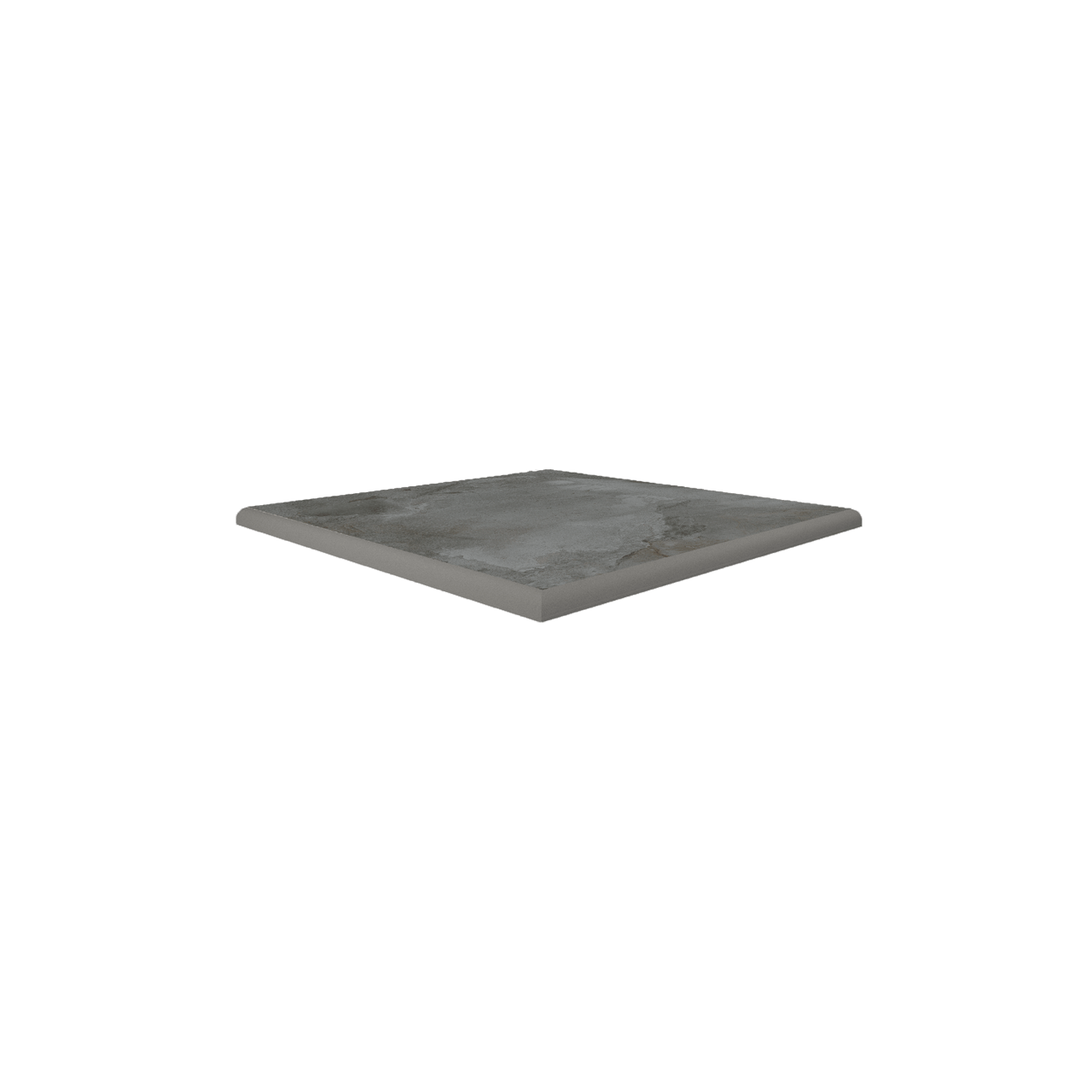

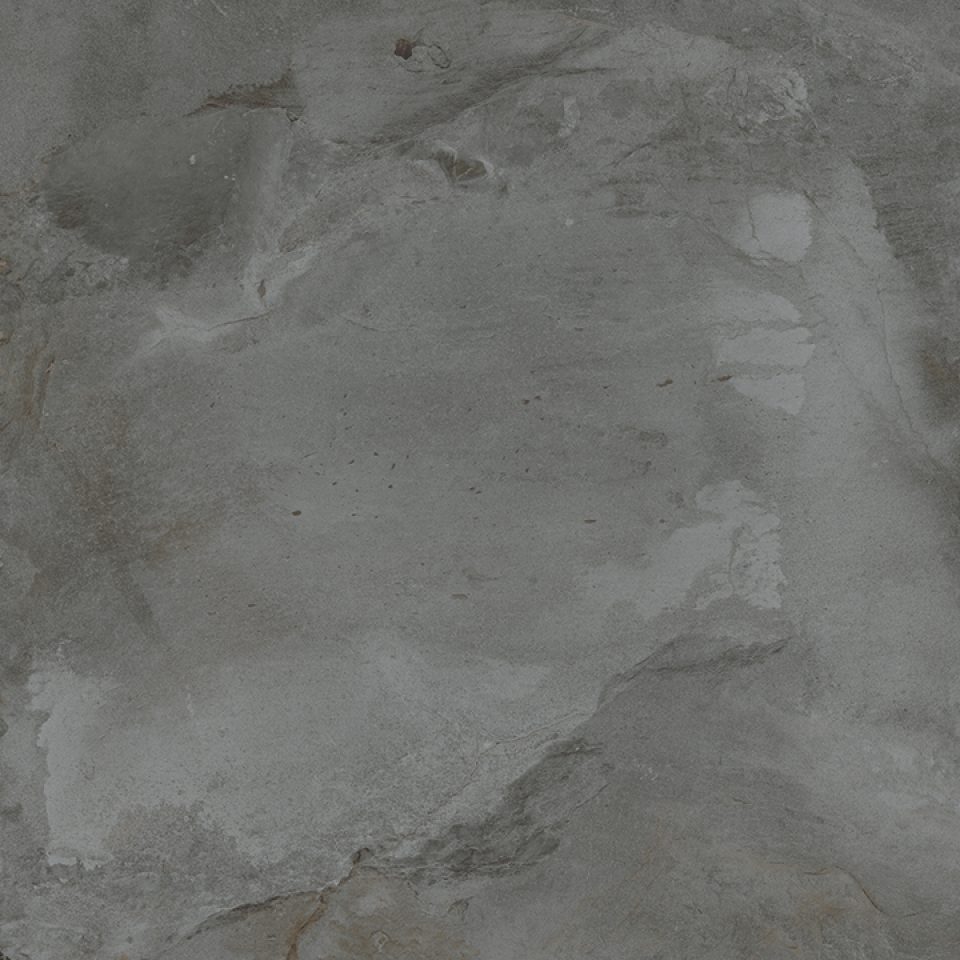

GOTHAM NERO

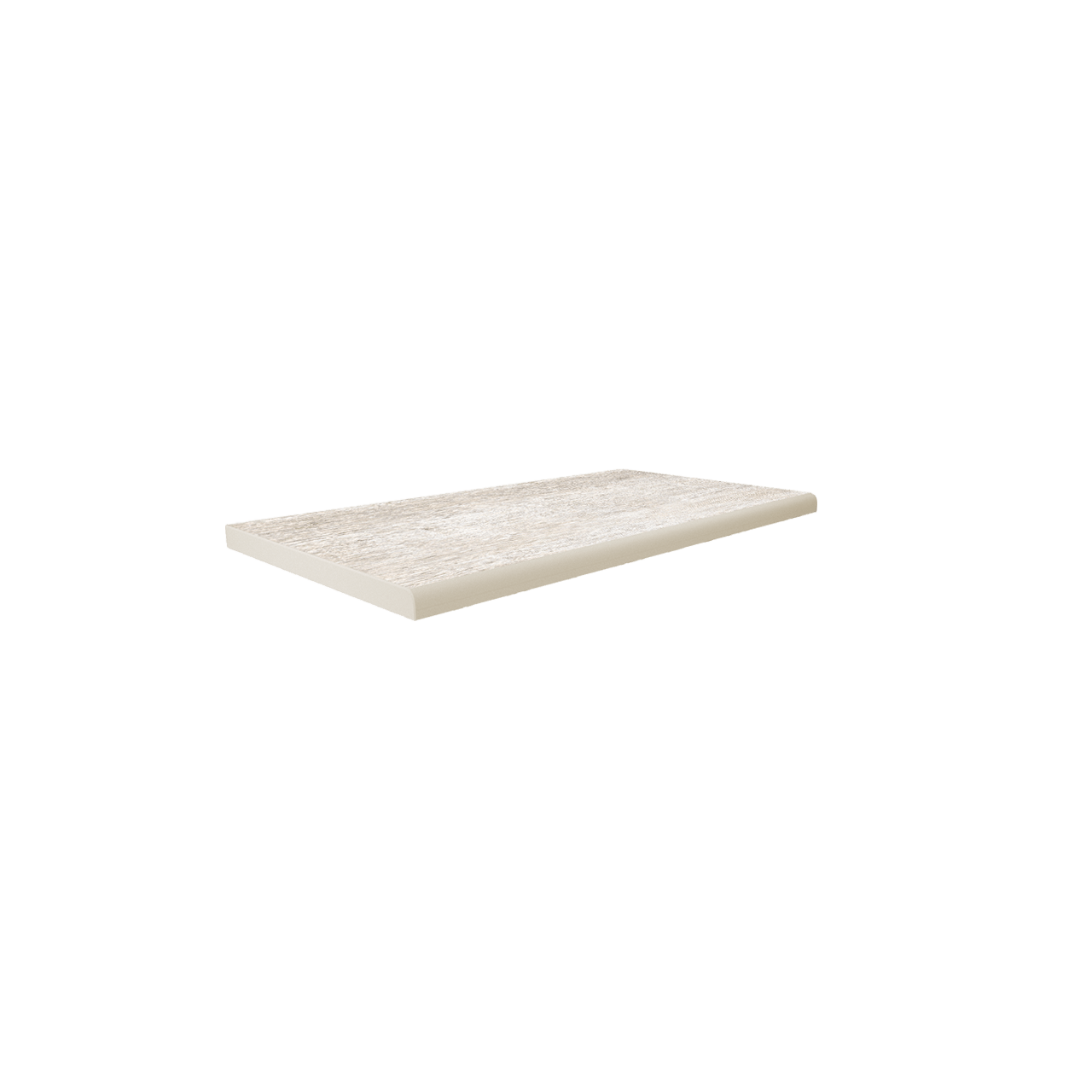

ARBOR BIANCO

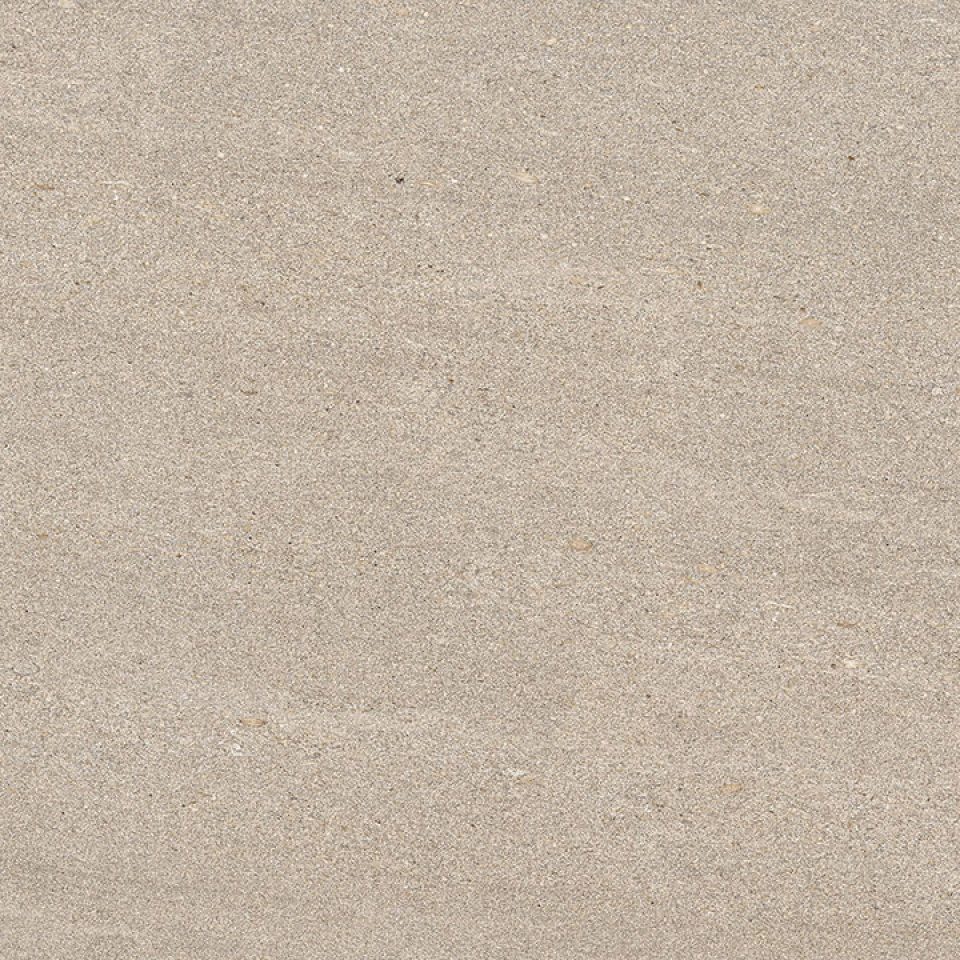

WEST 57 BEIGE
MONTEVERDE BEIGE

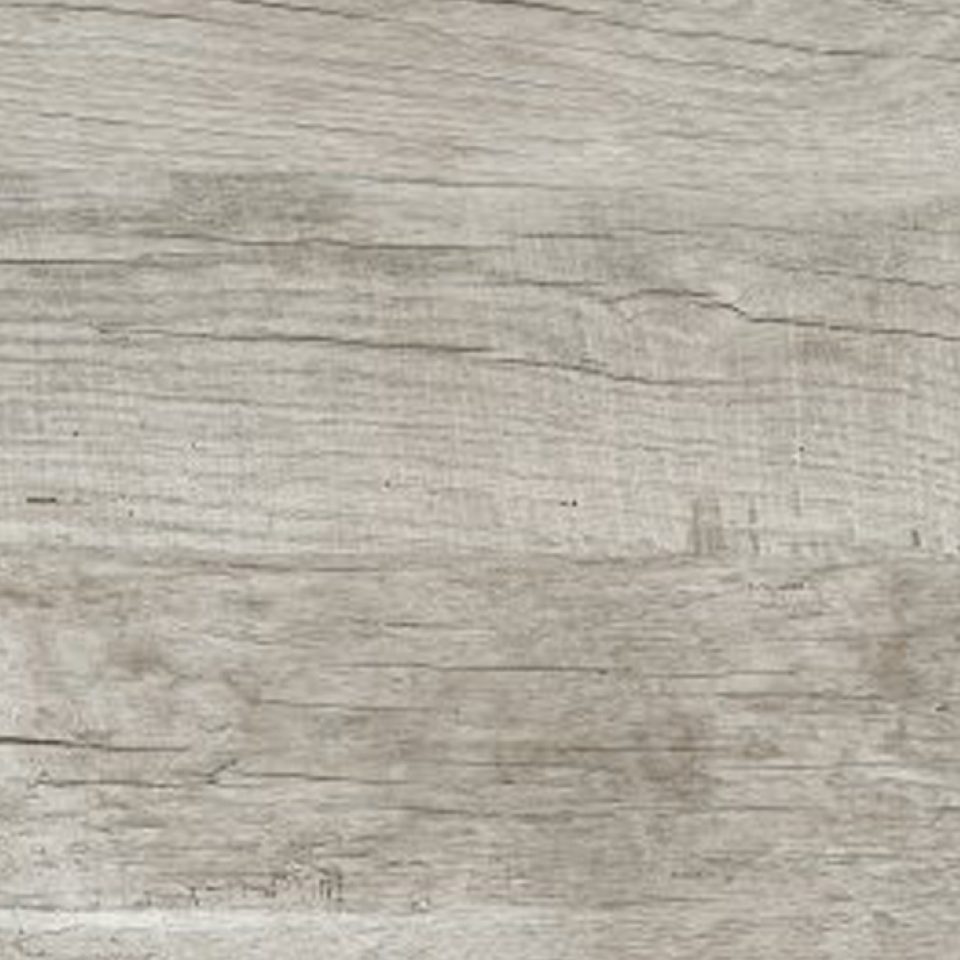

MONTEVERDE GREY

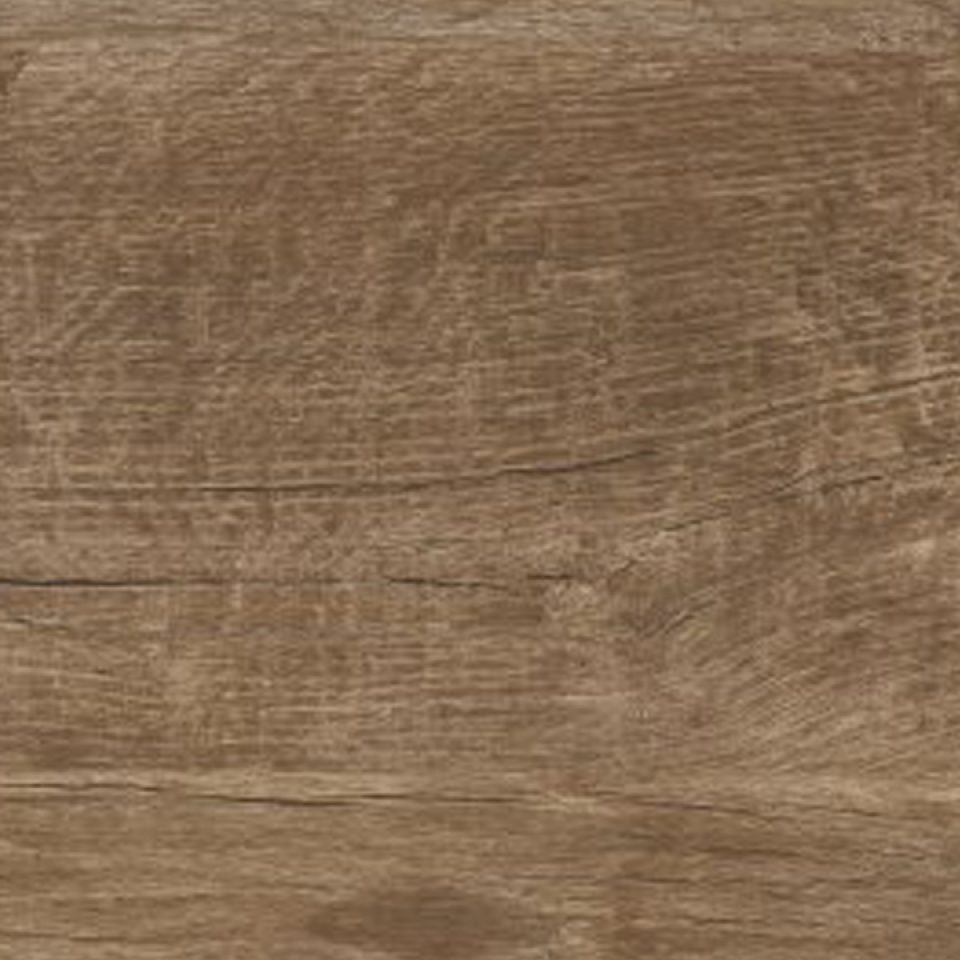

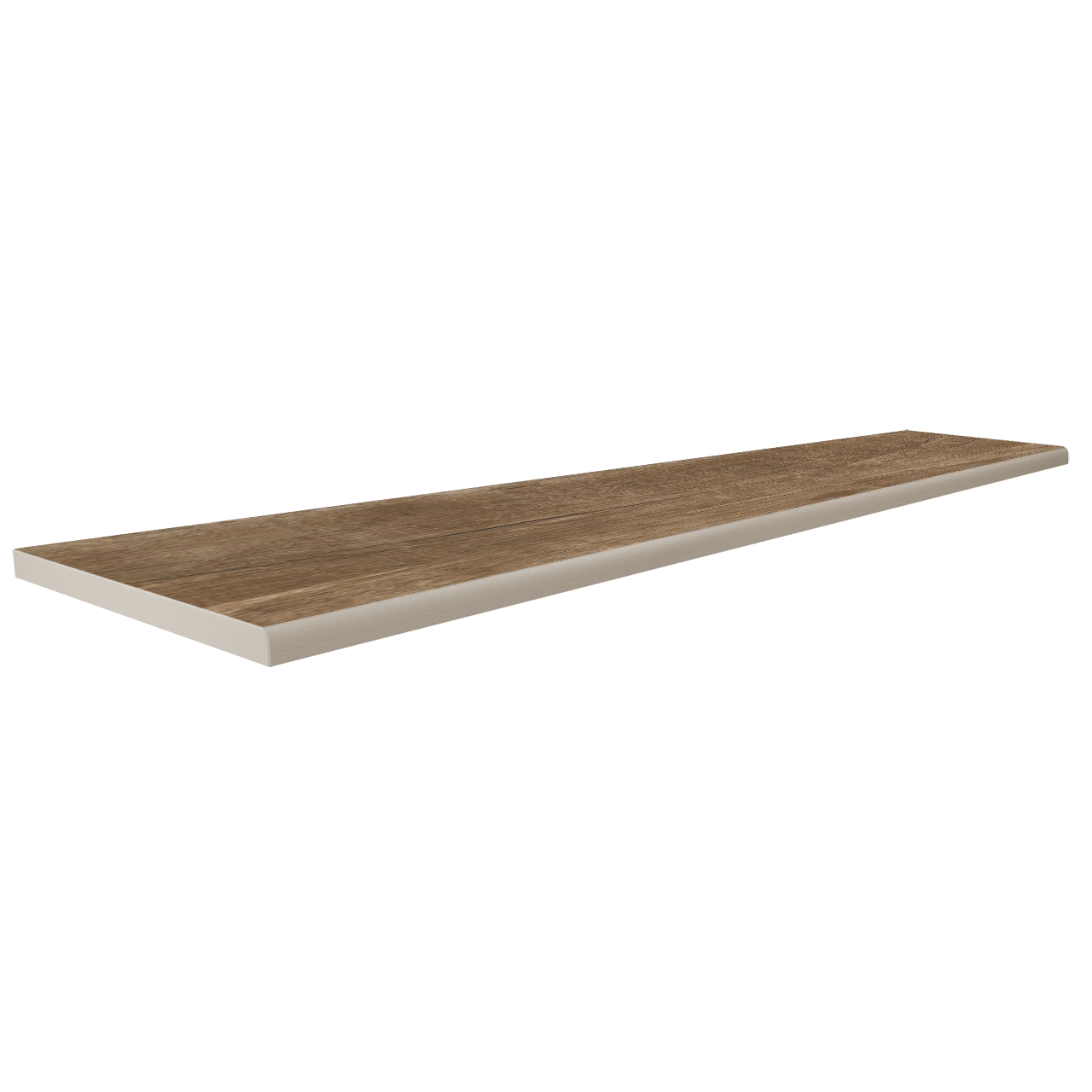

MONTEVERDE NOCE
TRAVSTONE GREY
CHAMONIX GREY
CHAMONIX BIANCO

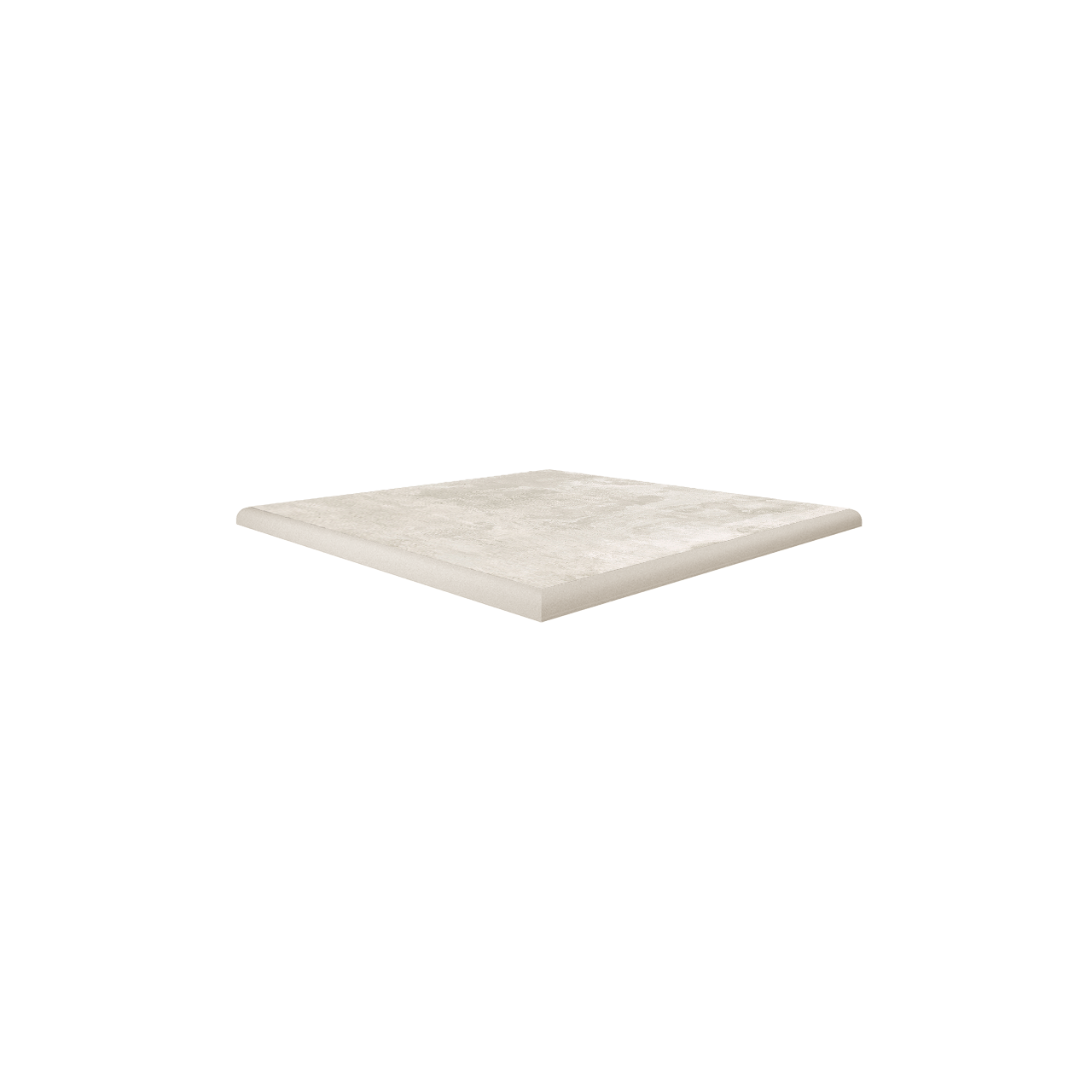

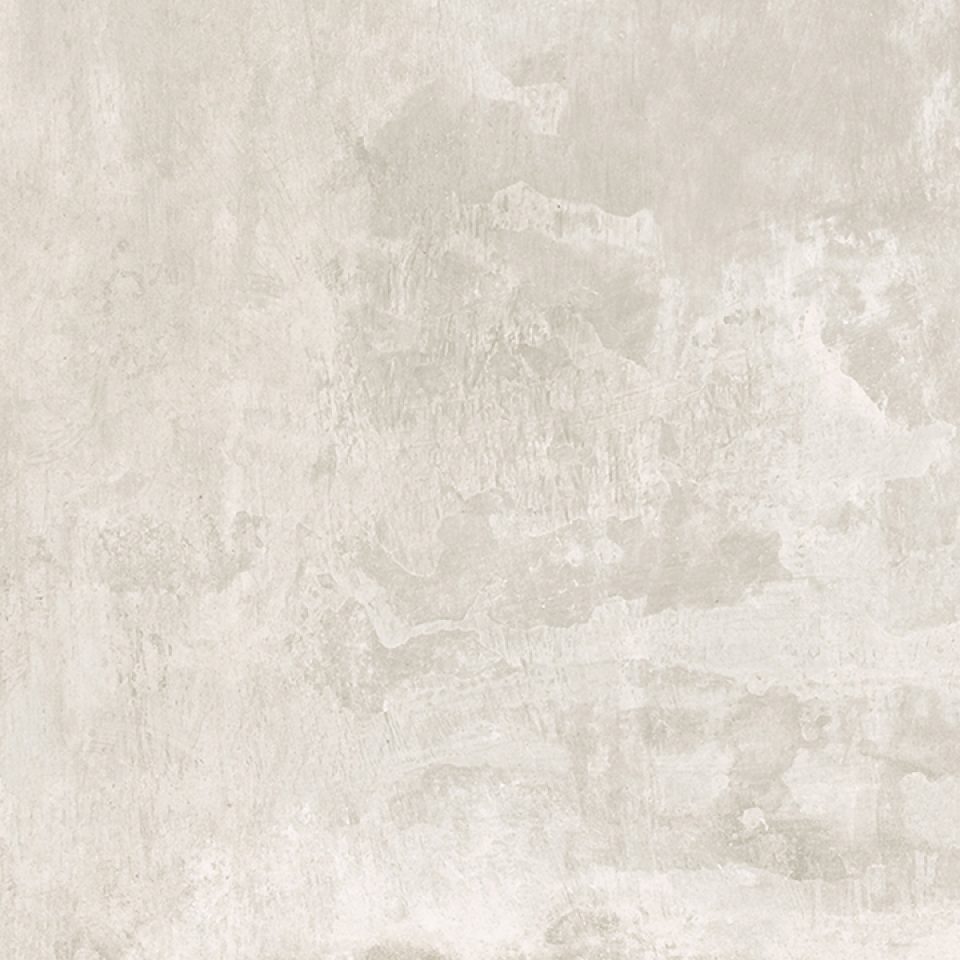

GOTHAM BIANCO

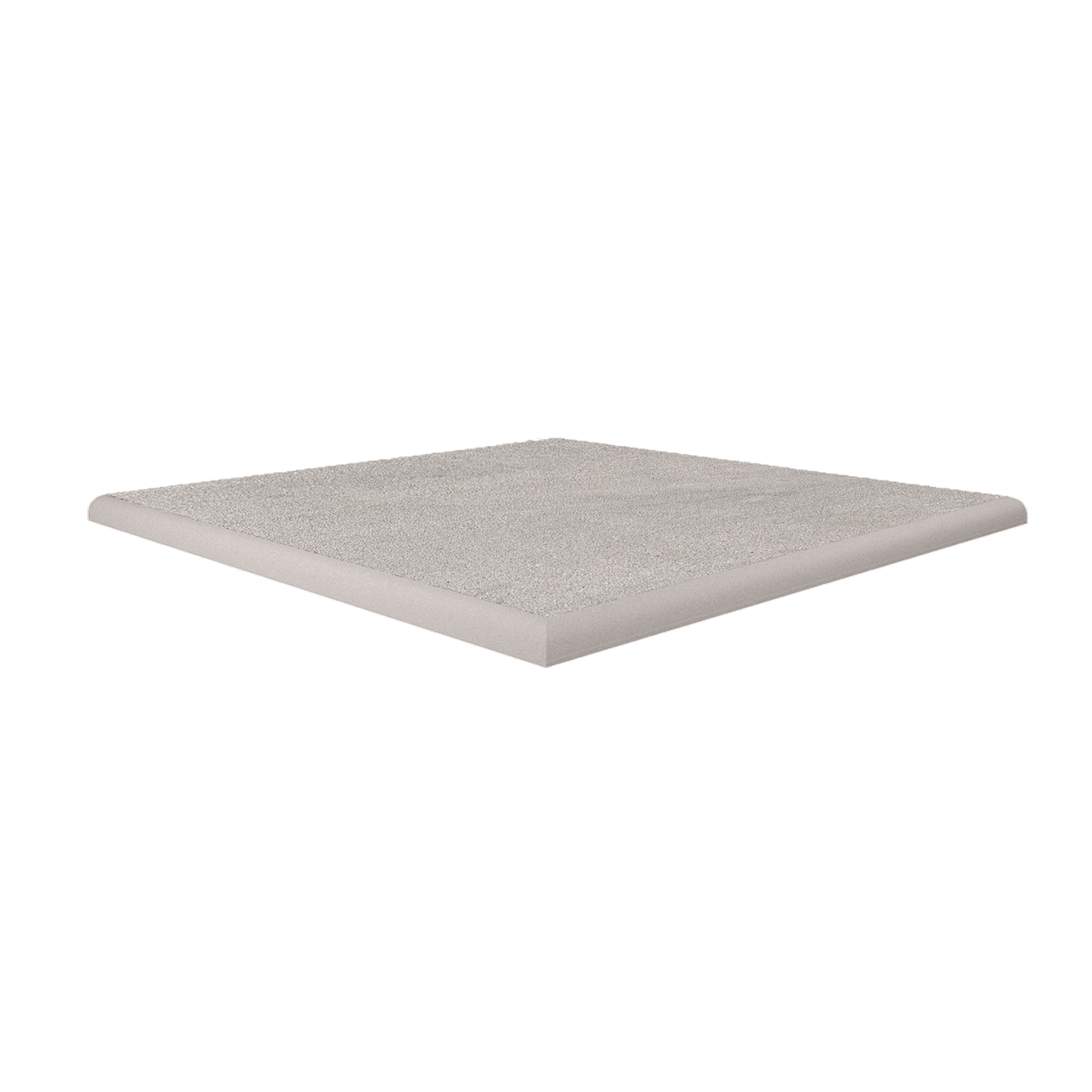

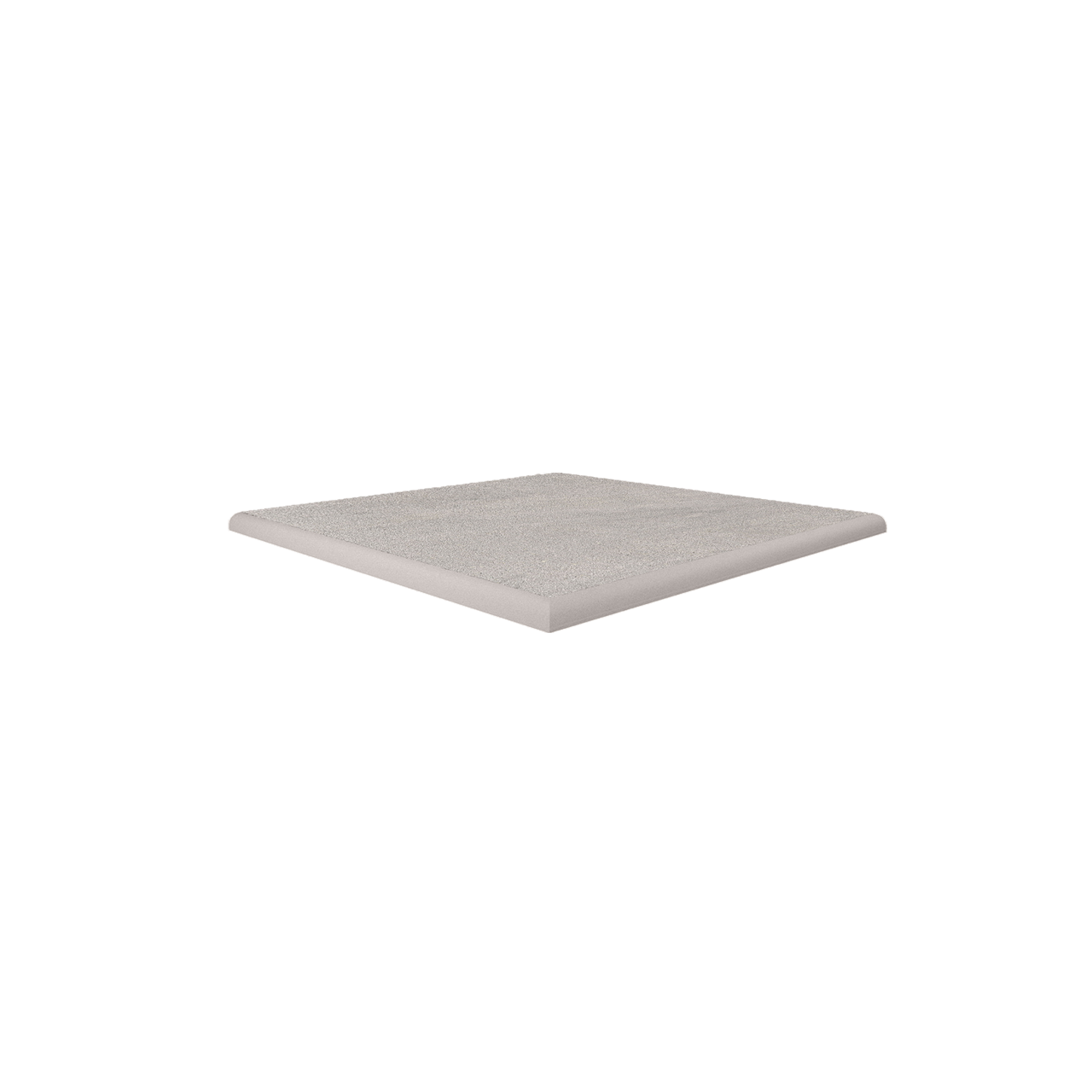

WEST 57 GRAY

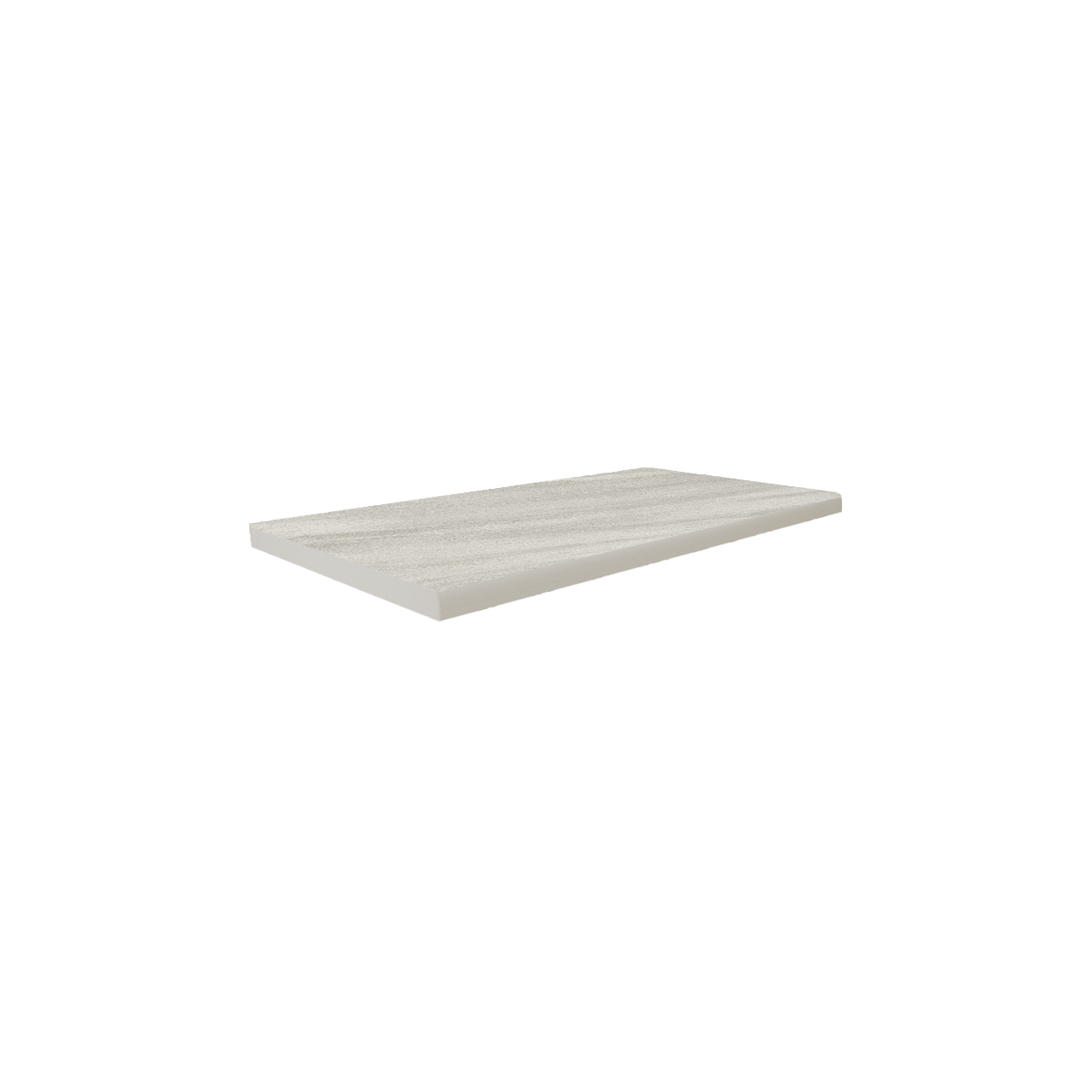

QUARTZITE BIANCO
QUARTZITE SAND
QUARTZITE GRAY
QUARTZITE DARK GRAY

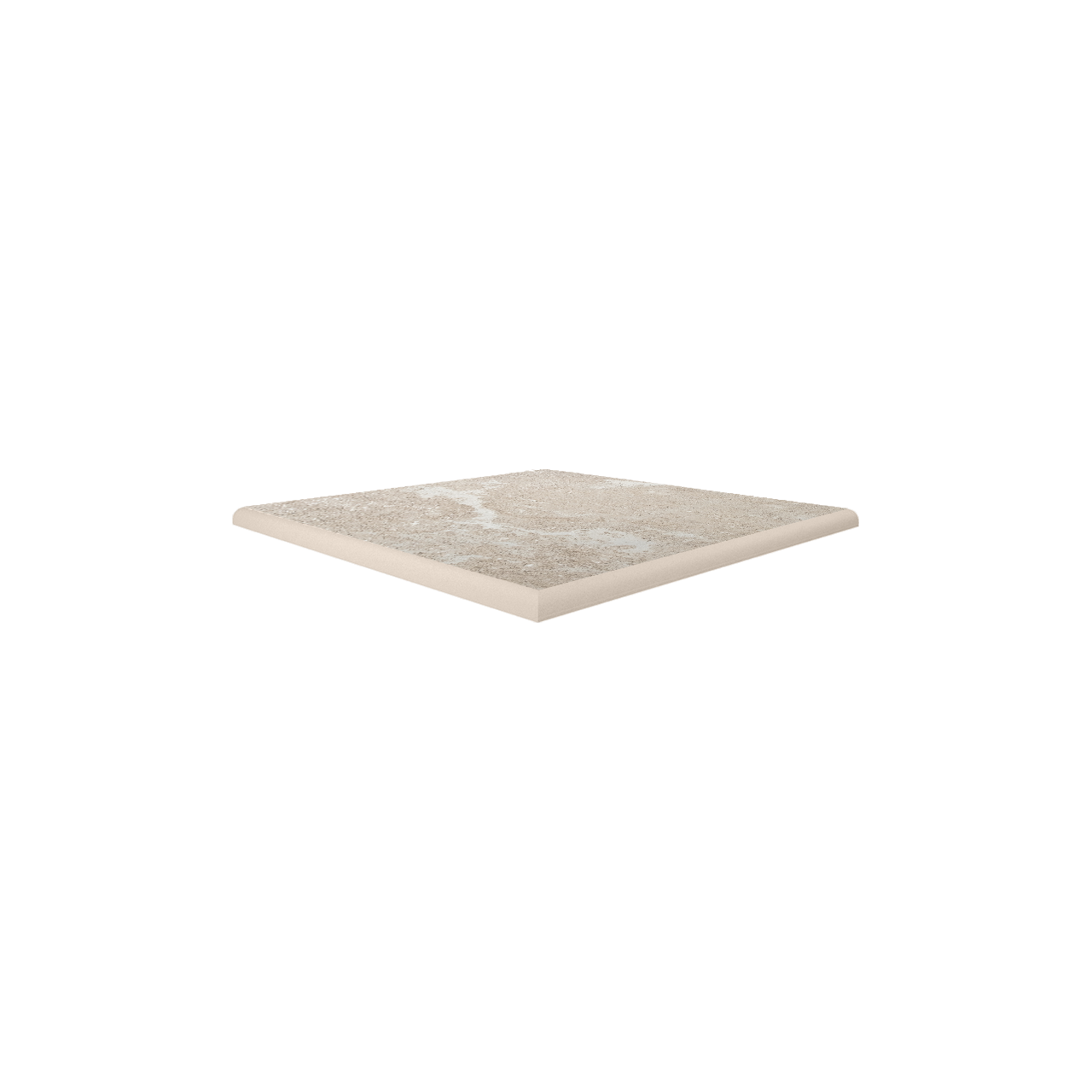

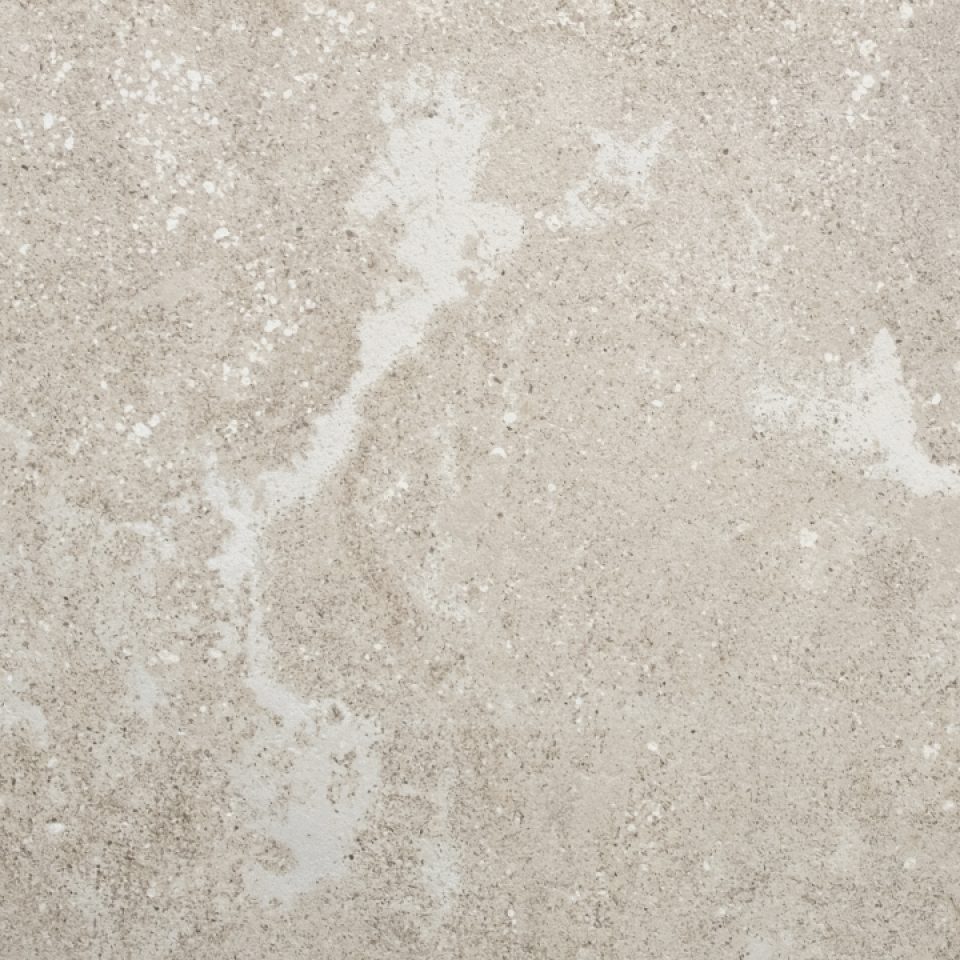

CHAMONIX BEIGE

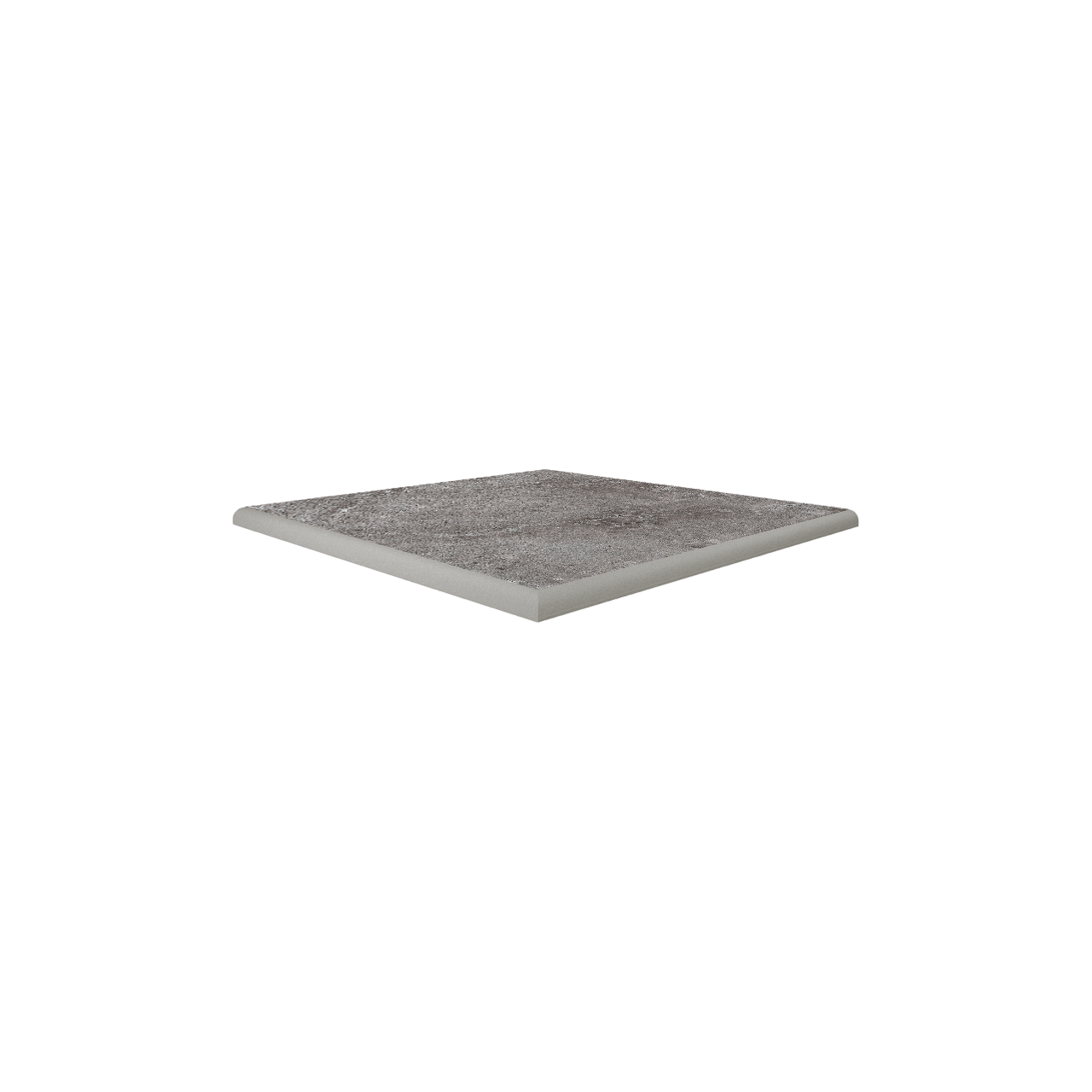

CHAMONIX DARK GREY

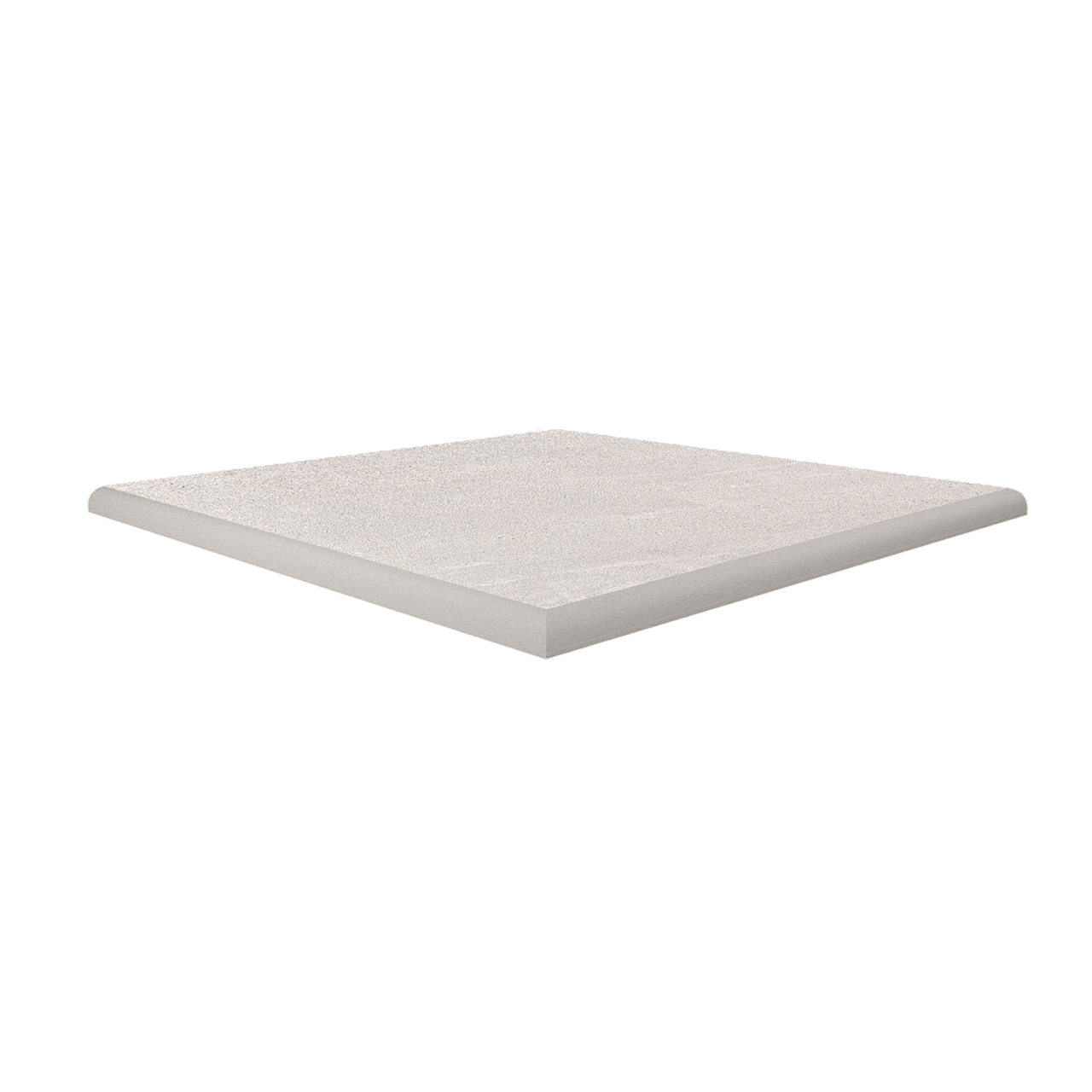

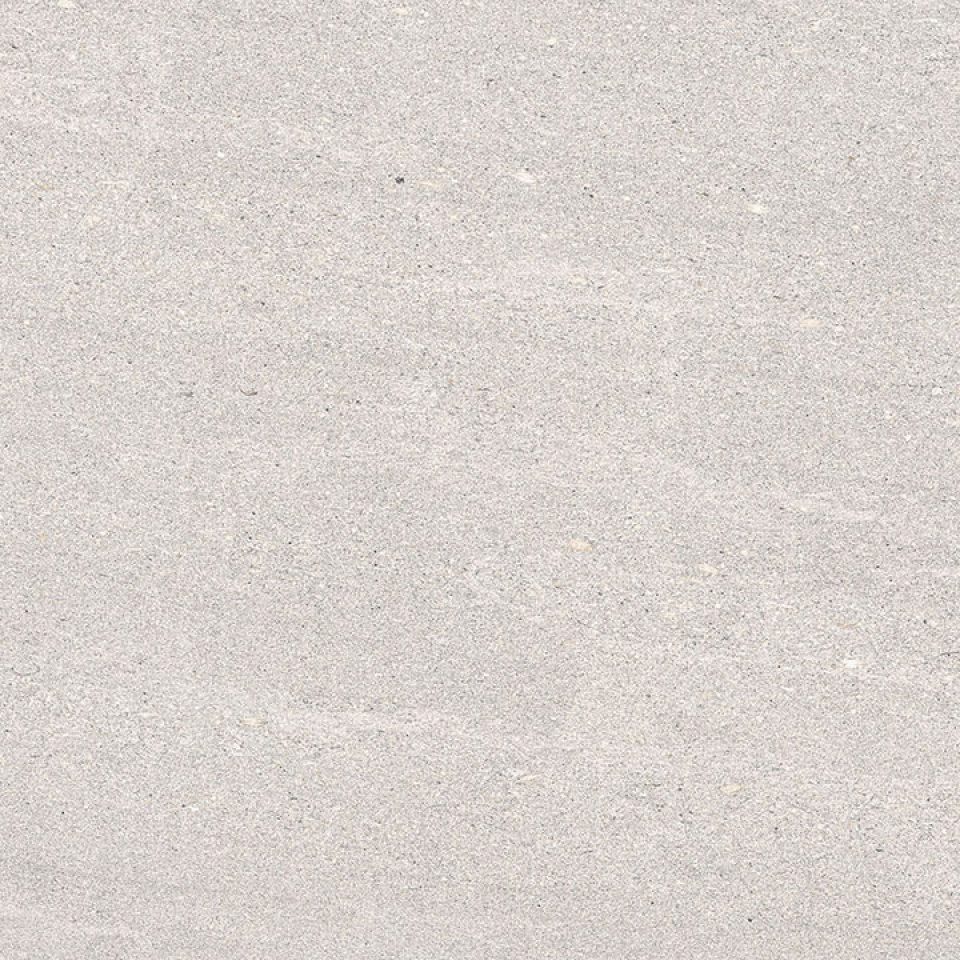

WEST 57 BIANCO

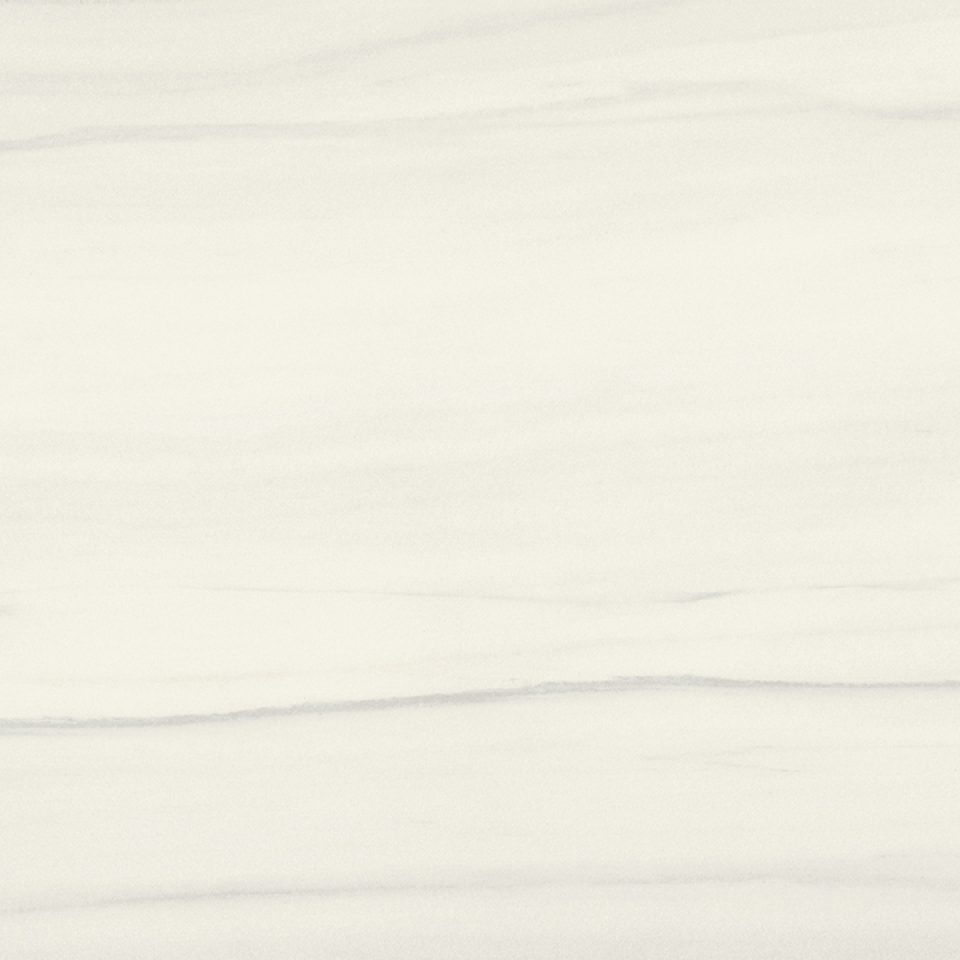

NATURE DOLOMITE
NATURE CARRARA
Pick a color
TRAVSTONE NOCE
GOTHAM BEIGE
GOTHAM GREY
TRAVSTONE BEIGE
GOTHAM NERO
ARBOR BIANCO
WEST 57 BEIGE
MONTEVERDE BEIGE
MONTEVERDE GREY
MONTEVERDE NOCE
TRAVSTONE GREY
CHAMONIX GREY
CHAMONIX BIANCO
GOTHAM BIANCO
WEST 57 GRAY
QUARTZITE BIANCO
QUARTZITE SAND
QUARTZITE GRAY
QUARTZITE DARK GRAY
CHAMONIX BEIGE
CHAMONIX DARK GREY
WEST 57 BIANCO
NATURE DOLOMITE
NATURE CARRARA
Information
Information
Packaging
Downloads

PORCELAIN TILE

Porcelain is a thinly manufactured slab with sharp zero-bevel edges. Porcelain can be used residentially or commercially, but is not suitable for any vehicular applications. Porcelain can also be used in commercial roof deck pedestal applications where a thinner/lighter module is specified. Consult the project engineer for specific installation instructions for roof deck applications.



OVER CONCRETE INSTALLATION – Porcelain must be installed on a stable base. The best way to achieve this is to mortar the units on to a poured concrete pad - preferably a new concrete pad, although existing concrete can be used. It is recommended that you have a minimum 4” of ¾” crusher run gravel under the pad for support and drainage, (use any road base gravel in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).

Special Notes: Concrete Direct Overlay –

  1. Concrete integrity – concrete must be in good condition, and not crumbling
  2. Drainage slope – concrete below must be sloped away from all buildings and structures
  3. Base drainage - the area below the concrete must not be subject to frost movement
  4. Jointing – Exterior Grade Porcelain grout.


ALTERNATIVE PERMEABLE BASE – Porcelain may also be installed on a permeable base in climates with little or no freeze-thaw ground movement.

Use a min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together.)

ALTERNATIVE PERMEABLE BEDDING COURSE – 1” thick of 1/8” clear open-graded chip stone – (ASTM No. 8 or 9) screeded over base.


 ALTERNATIVE high density foam BASE

Products such as Gatorbase or other high-density foam products designed for exterior paving applications can also be used for porcelain installation. In this instance, the tiles sit directly on the foam base material. This eliminates compaction and it eliminates the need for joint grouting a small plastic tab is used to separate the units and keep them from touching each other.

These foam products can be used to replace a substantial portion of the gravel required below the surface but not eliminate it completely.  It is recommended that you have a minimum 4” of ¾” crusher run gravel under the pad for support and drainage, (use any road base gravel in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).





HANDLING – Exercise caution when handling this product, as contact between its zero-bevel edges may cause damage.



EDGE RESTRAINT – not required when installed over concrete. Use manufacturer’s edge restraint system for high density foam installation.



CLEANERS – Porcelain cleans with simple soap and water.



caution – Porcelain can be slippery when wet.



Unit Thickness (mm)
Sq Ft per Unit
Units per Layer
Lbs per Unit
(20) Random Bundle
20
-
192
-
24"X24"
20
3.88
-
36.10
16"X32"
20
3.45
-
32.05
16"X48"
20
5.17
-
51.80
