PISA

The built-in setback design of Pisa automatically forms the correct slope, ensuring a highly stable retaining wall. Utilizing the product’s tapered components, you can form curved walls and steps.

Pisa2 300x600x75 Nevada
-
Pisa2 300x600x75 Nevada
-

PISA

The built-in setback design of Pisa automatically forms the correct slope, ensuring a highly stable retaining wall. Utilizing the product’s tapered components, you can form curved walls and steps.

Colors
Applications
Coping
Fire Feature e1632317154571
Fire Features
Garden Wall e1632317150577
Garden Walls
Non structural Wall
Outdoor Kitchen e1632317137972
Outdoor Kitchen
Pillar e1632317122239
Pillars
Structural Wall e1632317087703
Structural Wall
Water Feature e1632317028508
Water Features
Shape and size

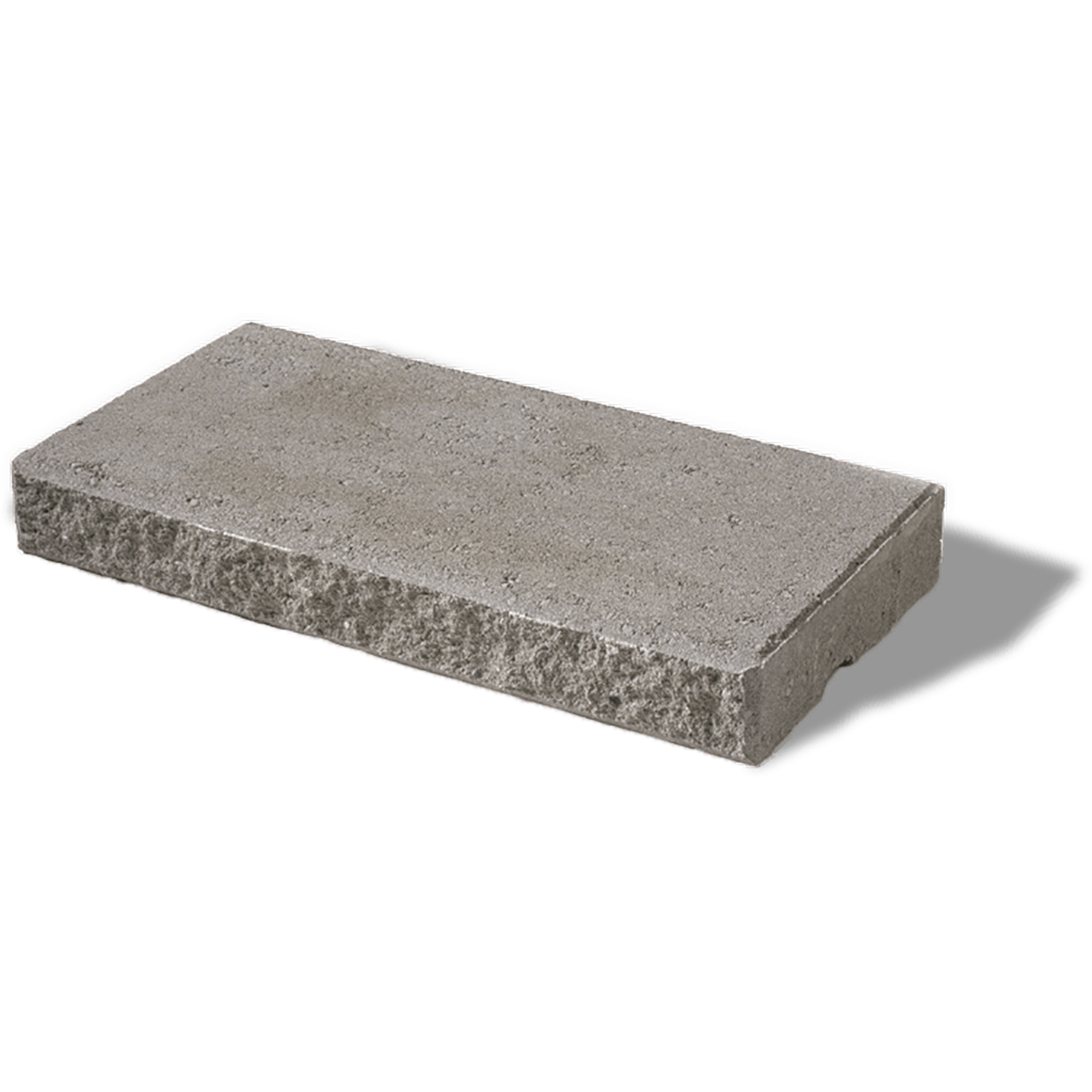

COPING 24" DOUBLE UNIT
600mm x 75mm x 300mm
23 5/8" x 3" x 11 7/8"
COPING 24" DOUBLE UNIT
600mm x 75mm x 300mm
23 5/8" x 3" x 11 7/8"
COPING 24" DOUBLE UNIT
600mm x 75mm x 300mm
23 5/8" x 3" x 11 7/8"
COPING 24" DOUBLE UNIT
600mm x 75mm x 300mm
23 5/8" x 3" x 11 7/8"
COPING 24" DOUBLE UNIT
600mm x 75mm x 300mm
23 5/8" x 3" x 11 7/8"

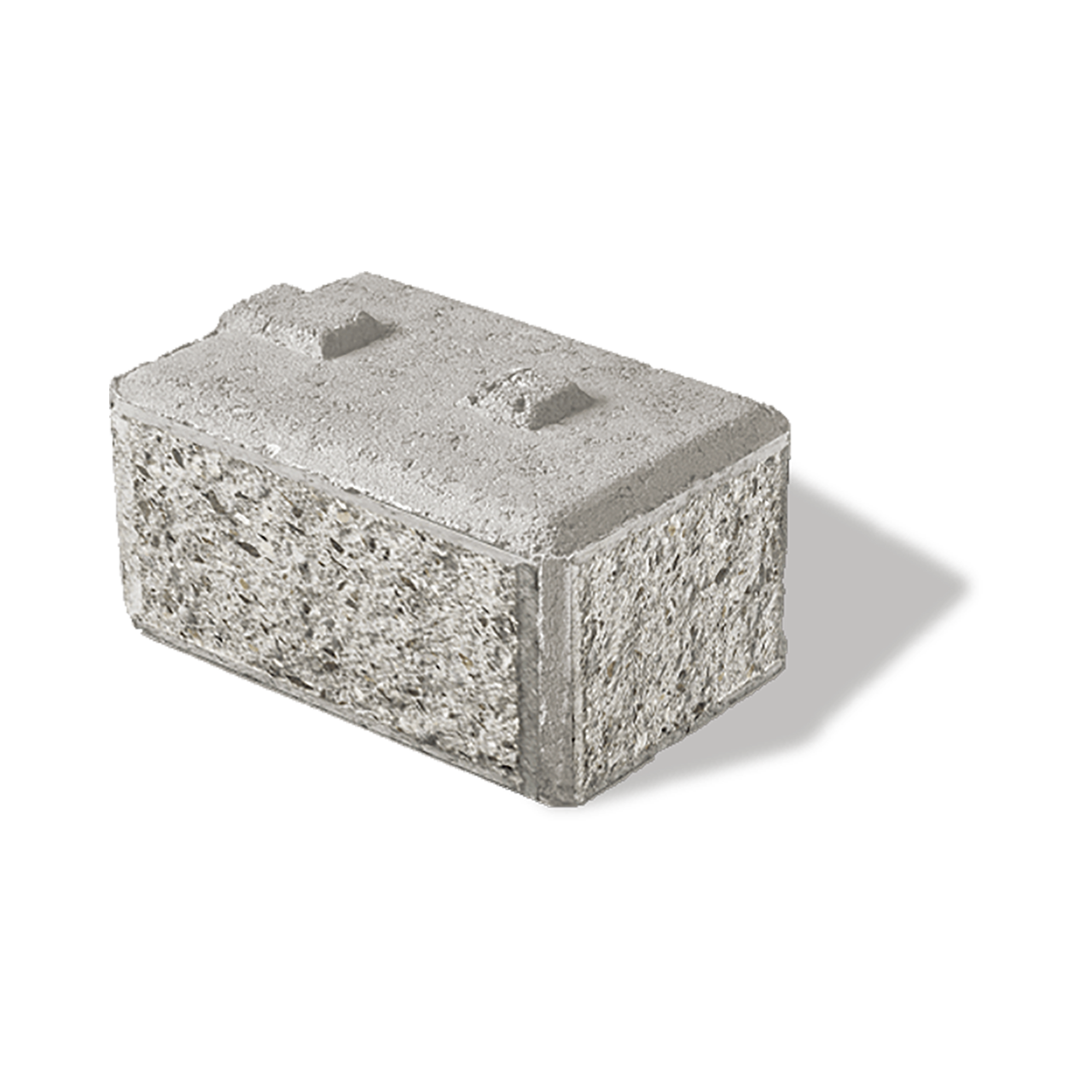

CORNER DOUBLE UNIT
200mm x 150mm x 300mm
7 7/8" x 5 7/8" x 11 7/8"
CORNER DOUBLE UNIT
200mm x 150mm x 300mm
7 7/8" x 5 7/8" x 11 7/8"
CORNER DOUBLE UNIT
200mm x 150mm x 300mm
7 7/8" x 5 7/8" x 11 7/8"
CORNER DOUBLE UNIT
200mm x 150mm x 300mm
7 7/8" x 5 7/8" x 11 7/8"

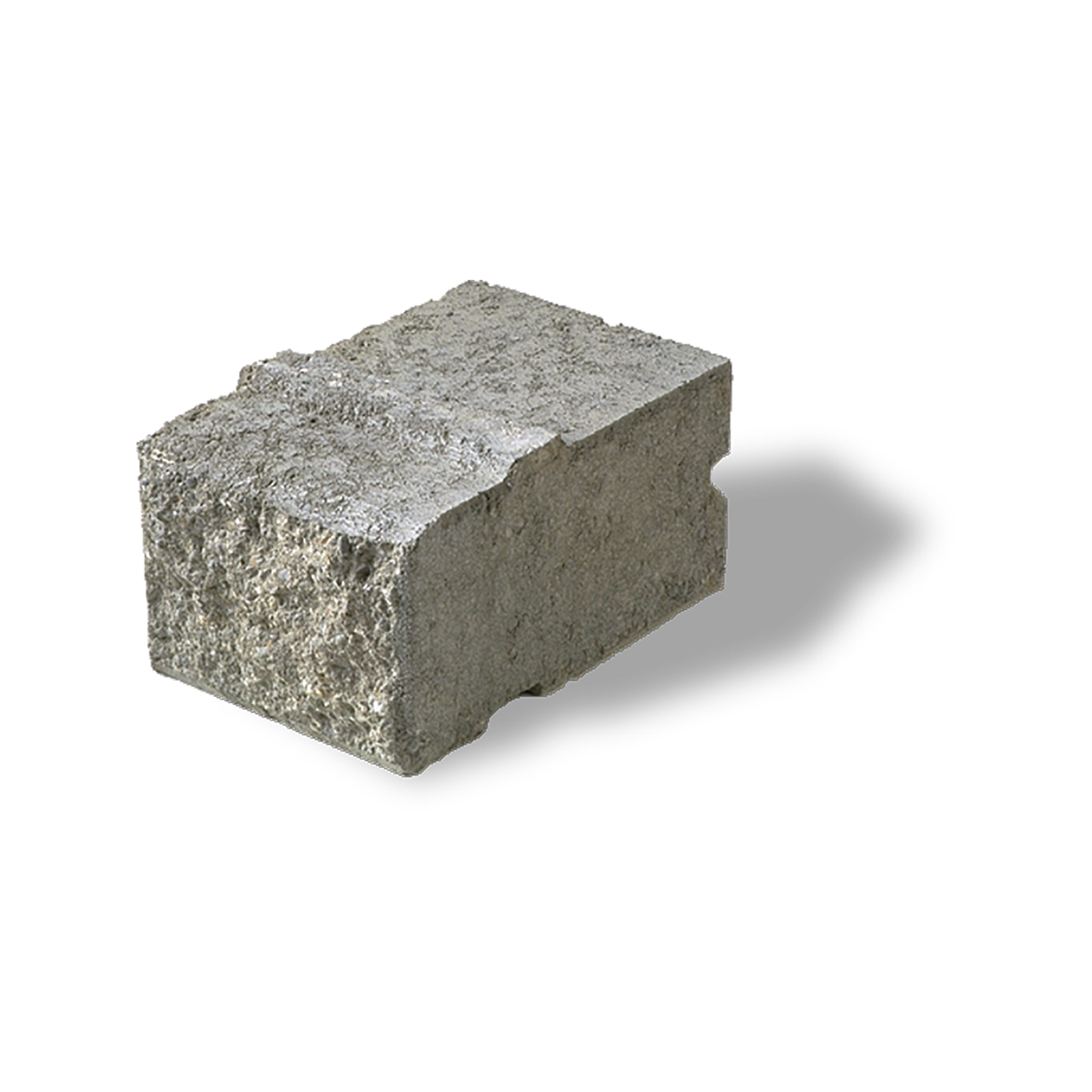

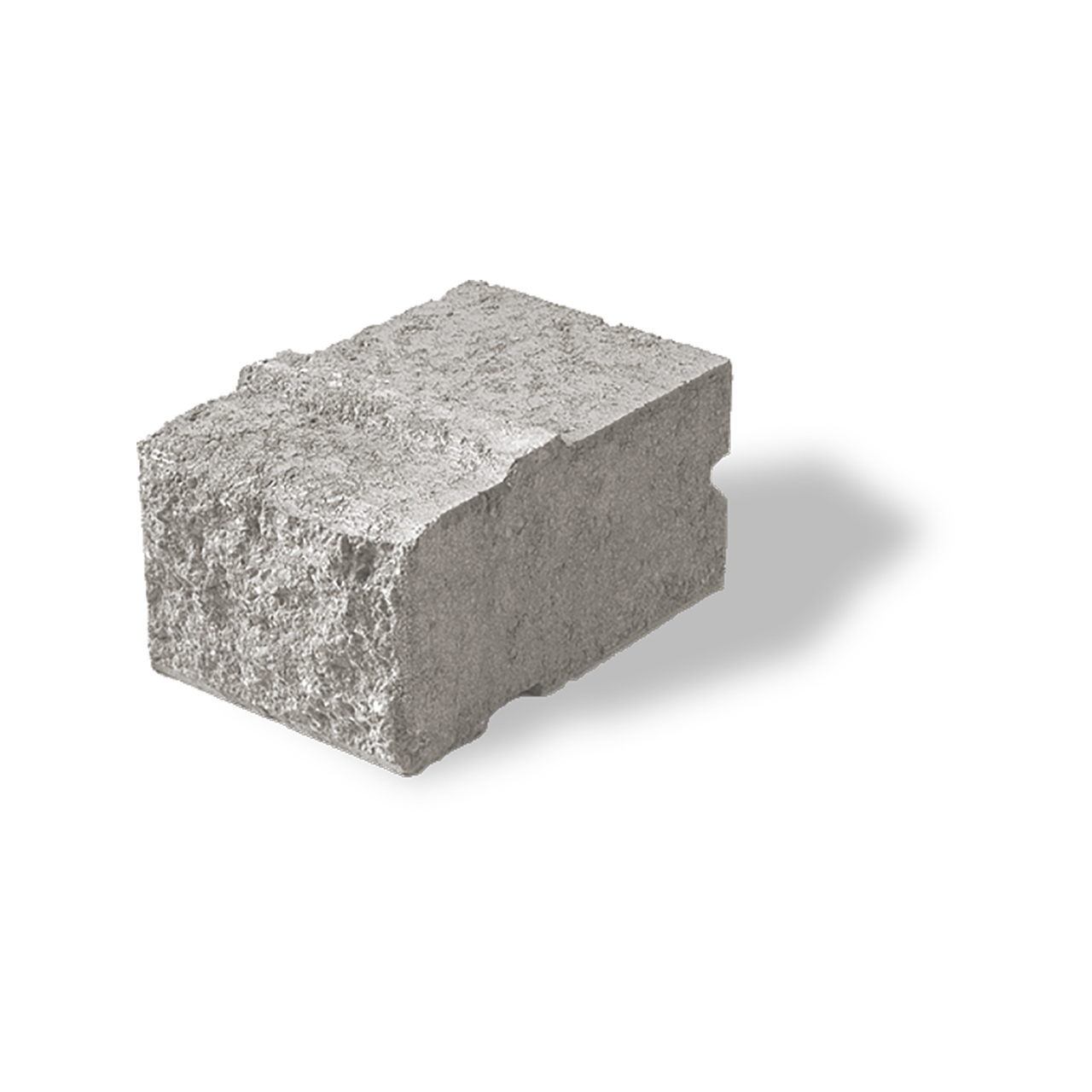

STANDARD
200mm x 150mm x 300mm
7 7/8" x 5 7/8" x 11 7/8"
STANDARD
200mm x 150mm x 300mm
7 7/8" x 5 7/8" x 11 7/8"
STANDARD
200mm x 150mm x 300mm
7 7/8" x 5 7/8" x 11 7/8"
STANDARD
200mm x 150mm x 300mm
7 7/8" x 5 7/8" x 11 7/8"

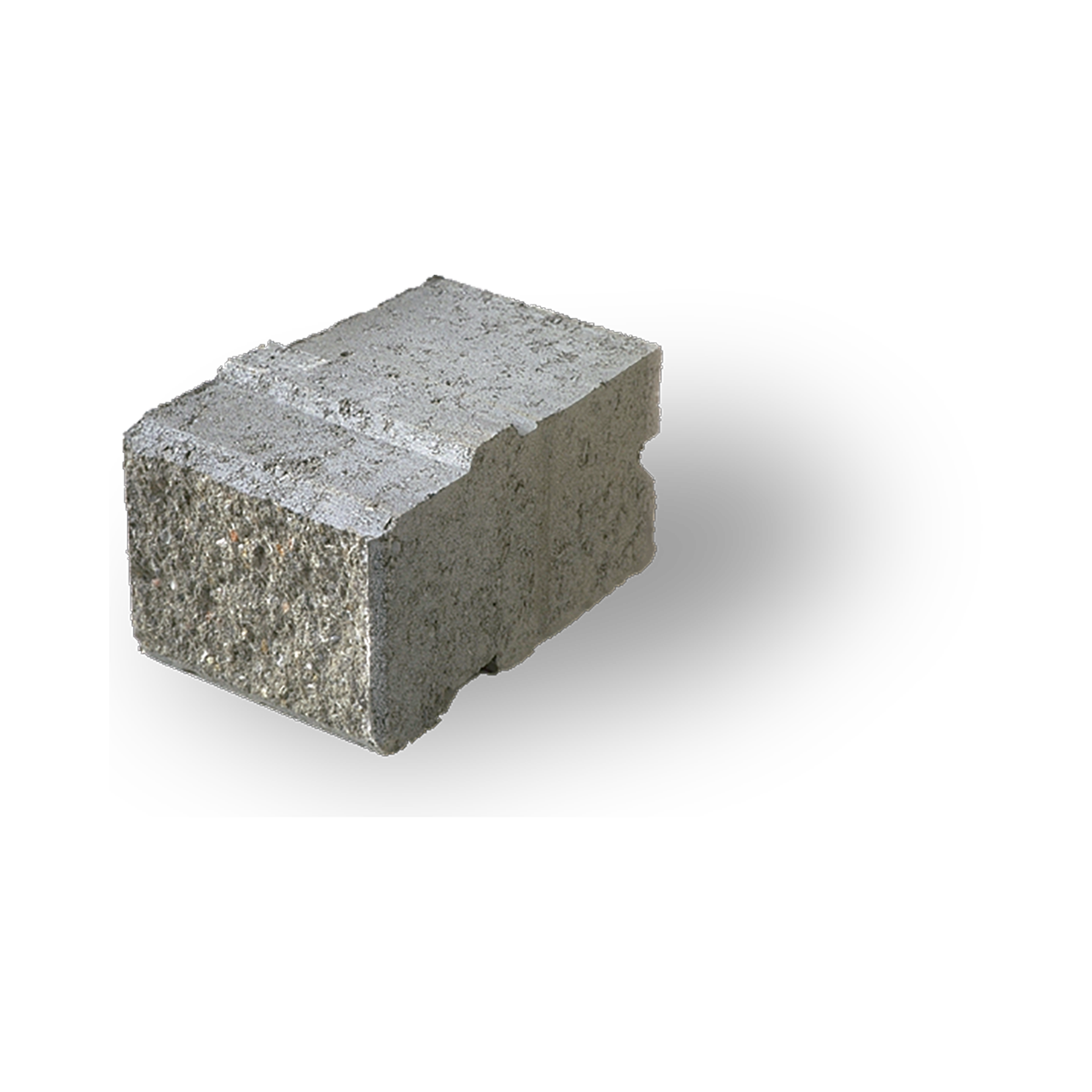

TAPERED
200mm x 150mm x 300mm
7 7/8" x 5 7/8" x 11 7/8"
TAPERED
200mm x 150mm x 300mm
7 7/8" x 5 7/8" x 11 7/8"
TAPERED
200mm x 150mm x 300mm
7 7/8" x 5 7/8" x 11 7/8"
TAPERED
200mm x 150mm x 300mm
7 7/8" x 5 7/8" x 11 7/8"
Technologies
Technologies
Classic

Classic

Classic Coat helps protect the surface texture and enhances the color of Classic products. For purchasers who prefer the look of a sealed project, these factory-sealed products save the time and expense of after-market sealing.

Our technologies
Colors
NEVADA
NATURAL
SIERRA
MAHOGANY
GRANITE
Pick a color
NEVADA
NATURAL
SIERRA
MAHOGANY
GRANITE
Information
Information
Packaging
Downloads

Pisa

Pisa is the most versatile residential and commercial retaining wall block on the market today. Use Pisa to construct projects from low walls to high walls.

Applications – Design and build projects such as planters, steps, grill islands, pillars, seat walls and water features. Can be used for straight and curved installations (Radius 5’ is the tightest radius).

Capacity – Gravity walls up to 39” (1m). Geogrid reinforced walls up to 20 ft. (6.1m).

Recommended Base Stabilization – one layer of DriveGrid stabilization grid between subgrade and base material. Use under Standard Base or Permeable Base.

Standard Base – Min. 6” – 8” of ¾” Crusher Run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).

Alternative Permeable Base – Min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together.)

Leveling – Leveling retaining wall blocks directly on top of gravel is tedious and generally does not yield the best results. U-Grip Base units or universal base pads are recommended under all Unilock walls for improved accuracy and speedier installation. Additional benefits include long term structural integrity and an overall better appearance. Poured concrete leveling pads, reinforced with rebar, are also a great way to accomplish leveling, particularly for larger installations. You must ensure that the concrete is poured and finished perfectly in order to achieve a good visual appearance.

Connection – features a tongue and groove connection. Use appropriate concrete adhesive for connection between units where the key has been removed or for corners. Always read adhesive manufacturers’ directions prior to gluing.

Handling – No specific handling instructions.

Coping - This wall requires coping. Choose a manufactured coping such as Unilock Universal Coping or any of our natural stone coping options. Install with tight joints or 3/16” gap between units and amend with an exterior latex caulking. Cutting may be required; a diamond blade saw is required to cut coping properly. Glue all coping using a specially formulated concrete adhesive that is strong and will not break down over time. Always read adhesive manufacturers’ directions prior to gluing.

Layers per BundlePer Bundle SectionLin Ft per Bundle - SailorUnits Per SectionUnits per BundleUnits per LayerUnits per FcFtLbs per LayerLbs Per SectionLbs per BundleLbs per UnitLin Ft per Layer - SailorFcFt per LayerFcFt per BundleFcFt per UnitSoldier LnFt Per SectionLin Ft per Bundle - SoldierLin Ft per Layer - SoldierLin Ft per Unit - Soldier
COPING 24" DOUBLE UNITTAPEREDTAPEREDCORNER DOUBLE UNITTAPEREDCORNER DOUBLE UNITCOPING 24" DOUBLE UNITSTANDARDCOPING 24" DOUBLE UNITCORNER DOUBLE UNITSTANDARDCOPING 24" DOUBLE UNITSTANDARDTAPEREDCOPING 24" DOUBLE UNITSTANDARDCORNER DOUBLE UNIT
Layers per Bundle83323283823833832
Per Bundle Section22222224224242242
Lin Ft per Bundle - Sailor64 - - - - - 64 - 64 - - 64 - - 64 - -
Units Per Section8151561568188618818158186
Units per Bundle1630301230121672161272167230167212
Units per Layer2101061062242624224102246
Units per FcFt11.501.500.601.500.601310.603131.50130.60
Lbs per Layer2909259255769255762901152290576115229011529252901152576
Lbs Per Section11601,387.501,387.505761,387.505761160864116057686411608641,387.501160864576
Lbs per Bundle23202775277511522775115223203456232011523456232034562775232034561152
Lbs per Unit14592.5092.509692.50961454814596481454892.501454896
Lin Ft per Layer - Sailor8 - - - - - 8 - 8 - - 8 - - 8 - -
FcFt per Layer26.676.6710.006.6710.0028210.008286.672810.00
FcFt per Bundle1620.0020.0020.0020.0020.0016241620.0024162420.00162420.00
FcFt per Unit10.670.671.670.671.6710.3311.670.3310.330.6710.331.67
Soldier LnFt Per Section - 20.0020.00 - 20.00 - - 11.98 - - 11.98 - 11.9820.00 - 11.98 -
Lin Ft per Bundle - Soldier - 40.0040.00 - 40.00 - - 47.90 - - 47.90 - 47.9040.00 - 47.90 -
Lin Ft per Layer - Soldier - 13.3313.33 - 13.33 - - 15.97 - - 15.97 - 15.9713.33 - 15.97 -
Lin Ft per Unit - Soldier - 1.331.33 - 1.33 - - 0.67 - - 0.67 - 0.671.33 - 0.67 -
