OLDE QUARRY®

With an antiqued patina similar to Brussels Dimensional Stone, but in a larger scale format, Olde Quarry reflects the cues of quarried stone, and brings timeless warmth to any project. With plastic connectors that create interlocking between rows, the 3-stone random bundle can be used to build straight or curved walls, planters, steps, pillars, fire features, grill islands and more.

Olde Quarry 300x114x230 Sierra
-
Olde Quarry 300x114x230 Sierra
-

OLDE QUARRY®

With an antiqued patina similar to Brussels Dimensional Stone, but in a larger scale format, Olde Quarry reflects the cues of quarried stone, and brings timeless warmth to any project. With plastic connectors that create interlocking between rows, the 3-stone random bundle can be used to build straight or curved walls, planters, steps, pillars, fire features, grill islands and more.

Colors
Applications
Fire Feature e1632317154571
Fire Features
Garden Wall e1632317150577
Garden Walls
Non structural Wall
Outdoor Kitchen e1632317137972
Outdoor Kitchen
Pillar e1632317122239
Pillars
Water Feature e1632317028508
Water Features
Shape and size
Sold individually
COPING TAPERED
305mm x 75mm x 305mm
12" x 3" x 12"
COPING TAPERED
305mm x 75mm x 305mm
12" x 3" x 12"
COPING TAPERED
305mm x 75mm x 305mm
12" x 3" x 12"
COPING TAPERED
305mm x 75mm x 305mm
12" x 3" x 12"
CORNER
300mm x 114mm x 230mm
11 7/8" x 4 1/2" x 9"
CORNER
300mm x 114mm x 230mm
11 7/8" x 4 1/2" x 9"
CORNER
300mm x 114mm x 230mm
11 7/8" x 4 1/2" x 9"
CORNER
300mm x 114mm x 230mm
11 7/8" x 4 1/2" x 9"
Random Bundle
15" UNIT
380mm x 115mm x 230mm
15" x 4 5/8" x 9"
12" UNIT
305mm x 115mm x 230mm
12" x 4 5/8" x 9"

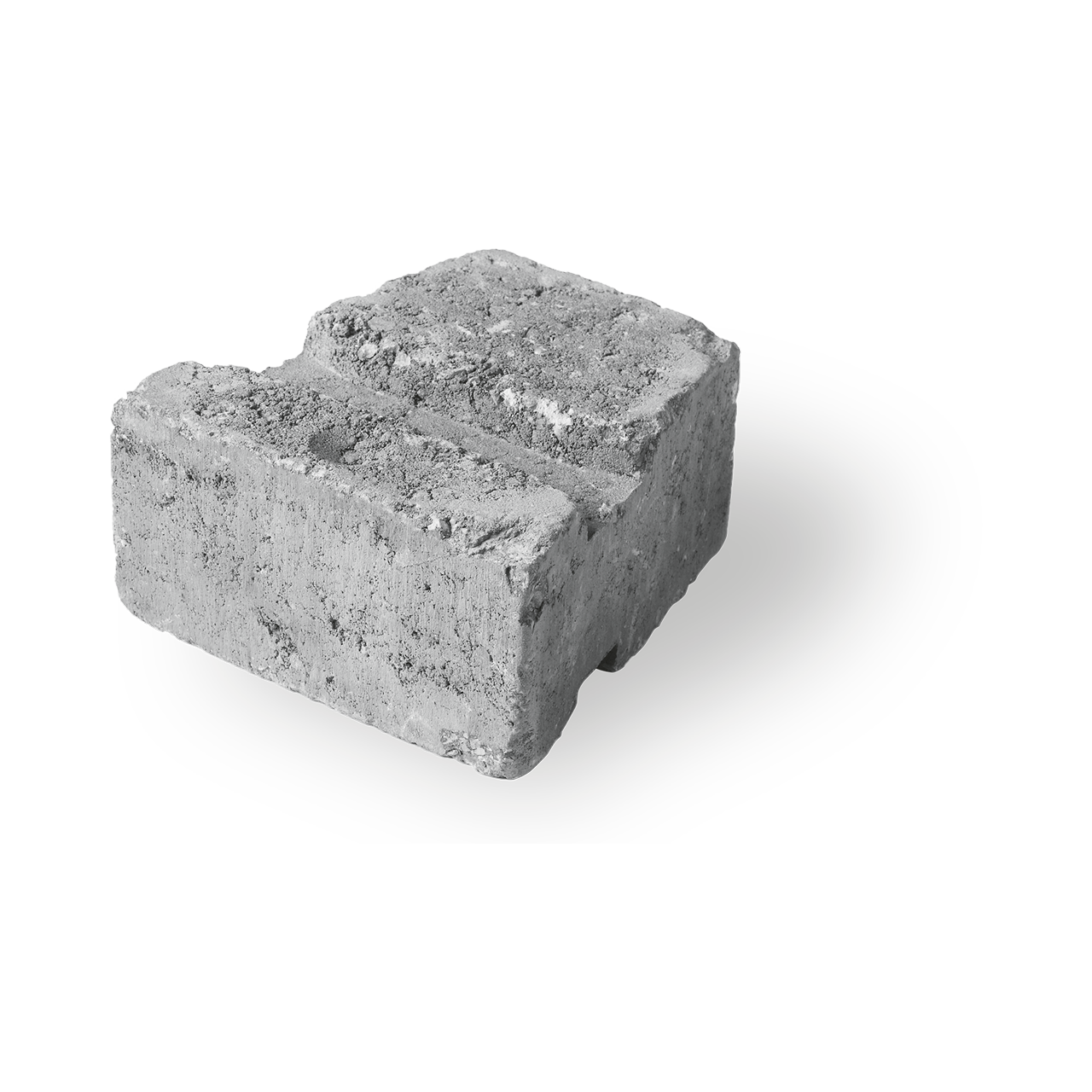

9" UNIT
230mm x 115mm x 230mm
9" x 4 5/8" x 9"
15" UNIT
380mm x 115mm x 230mm
15" x 4 5/8" x 9"
12" UNIT
305mm x 115mm x 230mm
12" x 4 5/8" x 9"
9" UNIT
230mm x 115mm x 230mm
9" x 4 5/8" x 9"
15" UNIT
380mm x 115mm x 230mm
15" x 4 5/8" x 9"
12" UNIT
305mm x 115mm x 230mm
12" x 4 5/8" x 9"
9" UNIT
230mm x 115mm x 230mm
9" x 4 5/8" x 9"

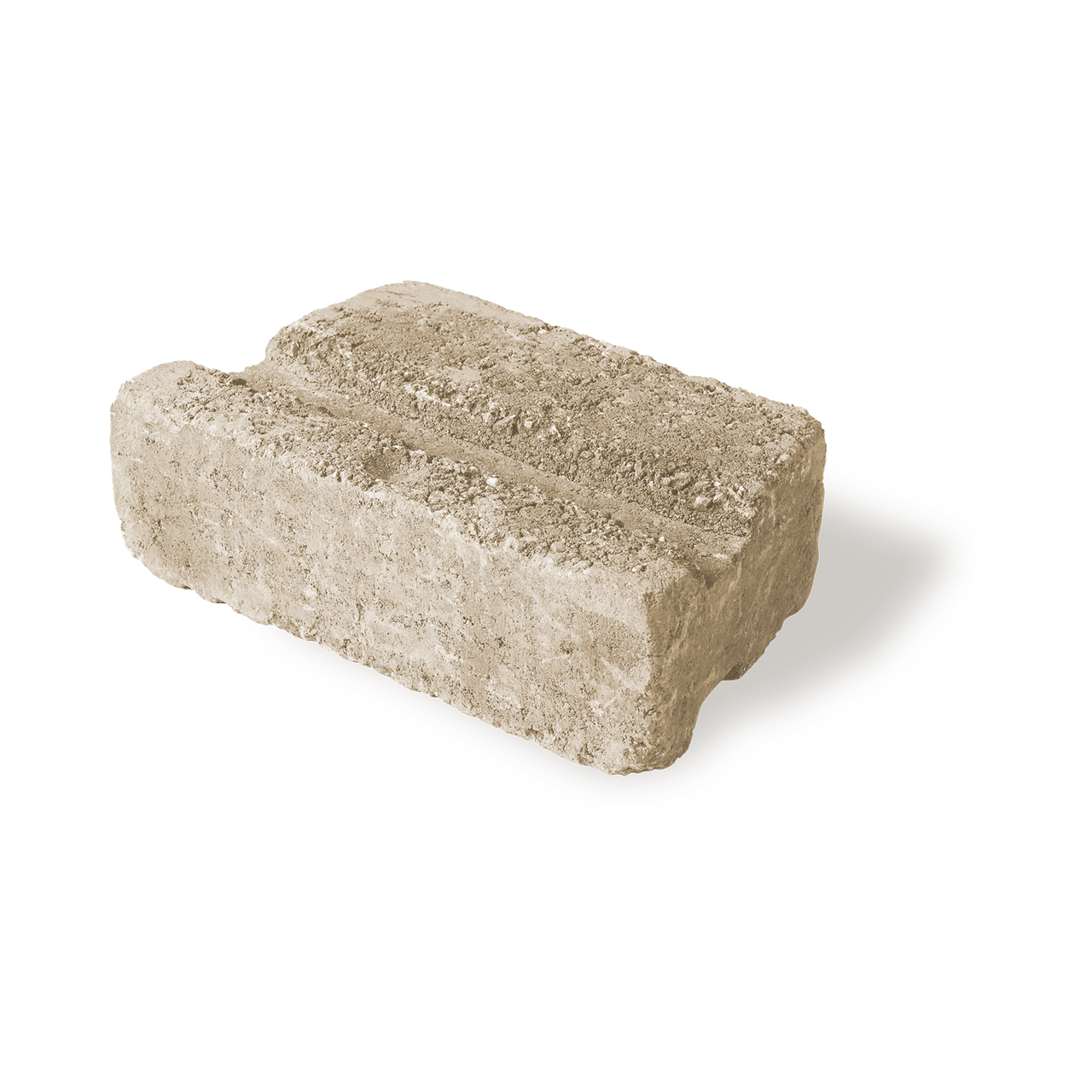

15" UNIT
380mm x 115mm x 230mm
15" x 4 5/8" x 9"
12" UNIT
305mm x 115mm x 230mm
12" x 4 5/8" x 9"
9" UNIT
230mm x 115mm x 230mm
9" x 4 5/8" x 9"

Product Gallery

Olde Quarry Fire Water Feature Granite 4196
Olde Quarry Outdoor Kitchen Sierra 4969
Olde Quarry Walls Coffee Creek 0326
Olde Quarry Walls Coffee Creek 1046
Olde Quarry Walls Sandstone 9756
Olde Quarry Walls Sierra 4827
Olde Quarry Walls Sierra 5237
Technologies
Technologies
Classic

Classic

Classic Coat helps protect the surface texture and enhances the color of Classic products. For purchasers who prefer the look of a sealed project, these factory-sealed products save the time and expense of after-market sealing.

Our technologies
Colors
SIERRA
GRANITE
RIVER
SANDSTONE
Pick a color
SIERRA
GRANITE
RIVER
SANDSTONE
Information
Information
Packaging
Downloads

olde quarry

The unusual weathered appearance of Olde Quarry makes it the ideal alternative to expensive natural stone products. Whether your plans call for constructing a curved wall, seat wall, planters, steps, edging or even an outdoor kitchen, the look will be commanding and impressive with the antiqued finish of Olde Quarry.

Applications – Design and build projects such as planters, steps, grill islands, pillars, seat walls and water features. Olde Quarry allows for the construction of both straight and curved applications.

Capacity – walls up to 2 ft. (60 cm) in height and hardscape features up to 4 ft. (1.2m)

Recommended Base Stabilization – one layer of DriveGrid™ stabilization grid between subgrade and base material. Use under Standard Base or Permeable Base.

Standard Base – Min. 6” – 8” of ¾” Crusher Run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).

Alternative Permeable Base – Min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together.)

Leveling – Leveling retaining wall blocks directly on top of gravel is tedious and generally does not yield the best results. U-Grip Base units or universal base pads are recommended under all Unilock walls for improved accuracy and speedier installation. Additional benefits include long term structural integrity and an overall better appearance. Poured concrete leveling pads, reinforced with rebar, are also a great way to accomplish leveling, particularly for larger installations. You must ensure that the concrete is poured and finished perfectly in order to achieve a good visual appearance.

Connection – Mechanical (use plastic insert provided) or adhesive. Make sure surface is clear of dust before gluing. Always read adhesive manufacturers’ directions.

Handling – No specific handling instructions.

Coping - This wall does not require coping, but coping is generally used to complete the installation visually. Choose a manufactured coping such as Unilock Universal Coping or any of our natural stone coping options. Install with tight joints or 3/16” gap between units and amend with an exterior latex caulking. Cutting may be required; a diamond blade saw is required to cut coping properly. Glue all coping using a specially formulated concrete adhesive that is strong and will not break down over time. Always read adhesive manufacturers’ directions prior to gluing.

Layers per BundlePer Bundle SectionSoldier LnFt Per SectionLin Ft per Bundle - SoldierUnits Per SectionUnits per BundleUnits per LayerUnits per FcFtLbs per LayerLbs Per SectionLbs per BundleLbs per UnitLin Ft per Layer - SoldierLin Ft per Unit - SoldierFcFt per LayerFcFt per BundleFcFt per UnitLin Ft per Bundle - SailorLin Ft per Layer - Sailorheight_1
CORNERCOPING TAPEREDCOPING TAPEREDRandom BundleCORNERCOPING TAPEREDCORNERCORNERCOPING TAPERED
Layers per Bundle588658558
Per Bundle Section444544444
Soldier LnFt Per Section20.60 - - 1820.60 - 20.6020.60 -
Lin Ft per Bundle - Soldier82.40 - - 9082.40 - 82.4082.40 -
Units Per Section202424182024202024
Units per Bundle809696908096808096
Units per Layer161212151612161612
Units per FcFt2.59442.672.5942.592.594
Lbs per Layer630.08379.92379.92520.83630.08379.92630.08630.08379.92
Lbs Per Section787.60759.84759.84625.00787.60759.84787.60787.60759.84
Lbs per Bundle3,150.403,039.363,039.363,125.003,150.403,039.363,150.403,150.403,039.36
Lbs per Unit39.3831.6631.6634.7239.3831.6639.3839.3831.66
Lin Ft per Layer - Soldier16.48 - - 1516.48 - 16.4816.48 -
Lin Ft per Unit - Soldier1.03 - - 11.03 - 1.031.03 -
FcFt per Layer6.18335.636.1836.186.183
FcFt per Bundle30.89242433.7530.892430.8930.8924
FcFt per Unit0.390.250.250.380.390.250.390.390.25
Lin Ft per Bundle - Sailor - 9696 - - 96 - - 96
Lin Ft per Layer - Sailor - 1212 - - 12 - - 12
