fbpx LINEO™ DIMENSIONAL STONE Garden Walls, Outdoor Kitchens, Retaining Walls, Walls | Unilock New York
EN

LINEO DIMENSIONAL STONE

The simple design of Lineo Dimensional Stone makes it a popular choice for contemporary walls, pillars, fire features, grill islands and other vertical features.  Sold in a 4-stone random bundle, with the largest unit 24” (61cm) in length, all the sizes contribute to the long, linear look.  Spacer strips, sold with the random bundle, ensure even separation between each unit and create shadows that help define each stone.  Ledgestone™ or Unilock Natural Stone are both excellent choices to complete the look with coping and pillar caps.

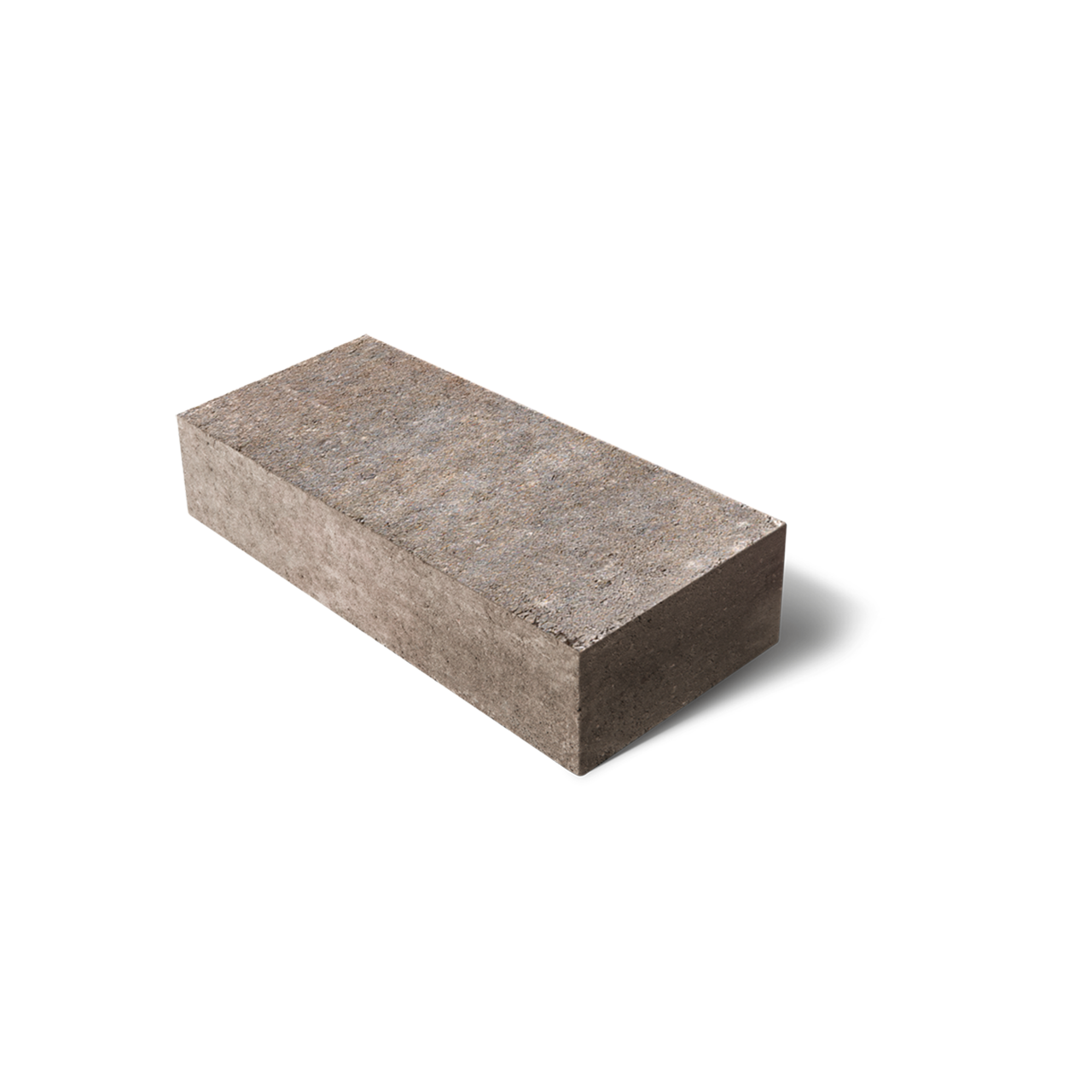

Lineo Dimensional Wall 100x600x200 Almond Grove
-
Lineo Dimensional Wall 100x600x200 Almond Grove
-

LINEO DIMENSIONAL STONE

The simple design of Lineo Dimensional Stone makes it a popular choice for contemporary walls, pillars, fire features, grill islands and other vertical features.  Sold in a 4-stone random bundle, with the largest unit 24” (61cm) in length, all the sizes contribute to the long, linear look.  Spacer strips, sold with the random bundle, ensure even separation between each unit and create shadows that help define each stone.  Ledgestone™ or Unilock Natural Stone are both excellent choices to complete the look with coping and pillar caps.

Colors
Applications
Fire Feature
Garden Wall
Outdoor Kitchen
Pillars
Retaining Wall
Seat Wall
Water Features
Shape and size
Sold individually

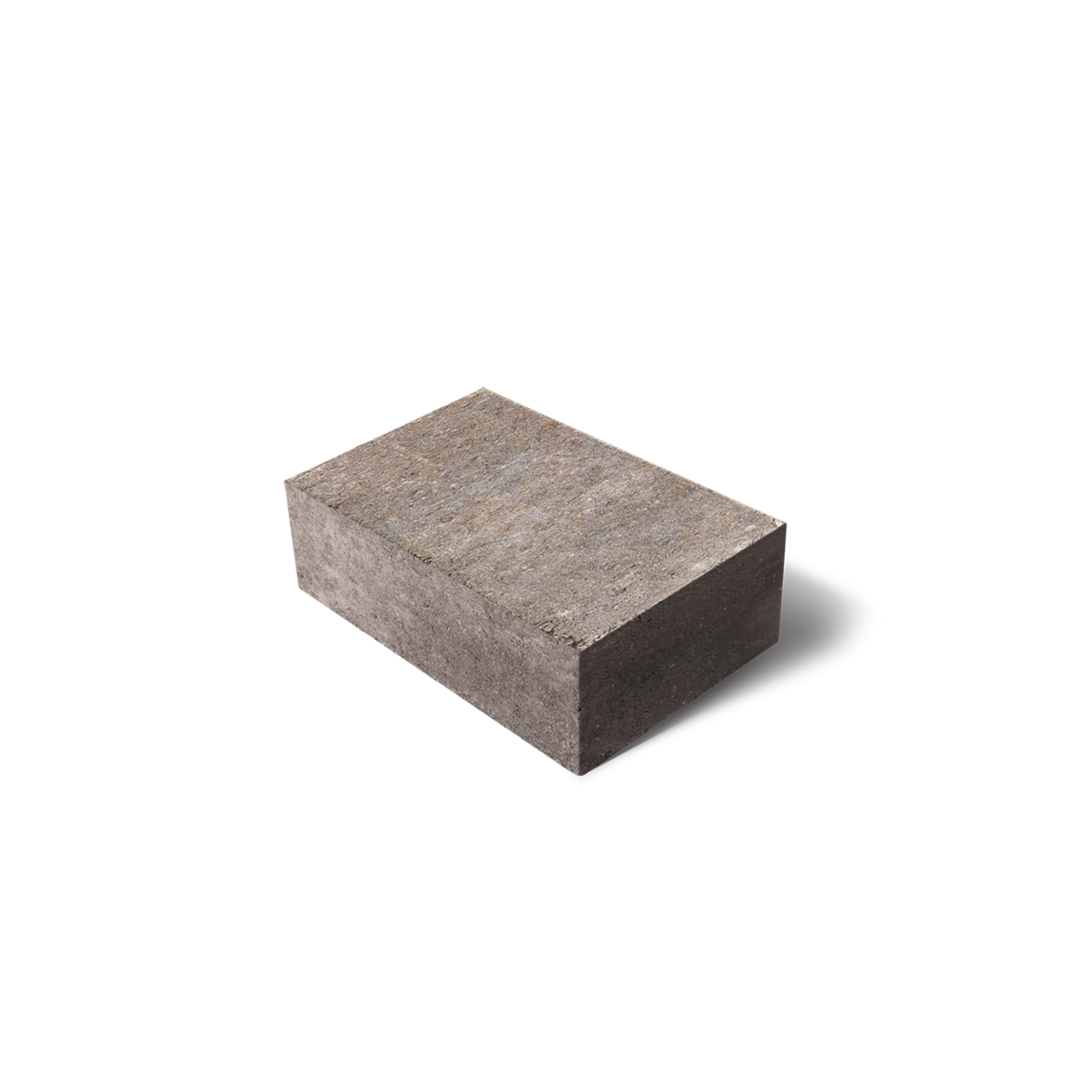

PILLAR UNIT
400mm x 100mm x 200mm
15 3/4" x 3 7/8" x 7 7/8"
PILLAR UNIT
400mm x 100mm x 200mm
15 3/4" x 3 7/8" x 7 7/8"
PILLAR UNIT
400mm x 100mm x 200mm
15 3/4" x 3 7/8" x 7 7/8"
Random Bundle
XL RECTANGLE
600mm x 100mm x 200mm
23 5/8" x 3 7/8" x 7 7/8"

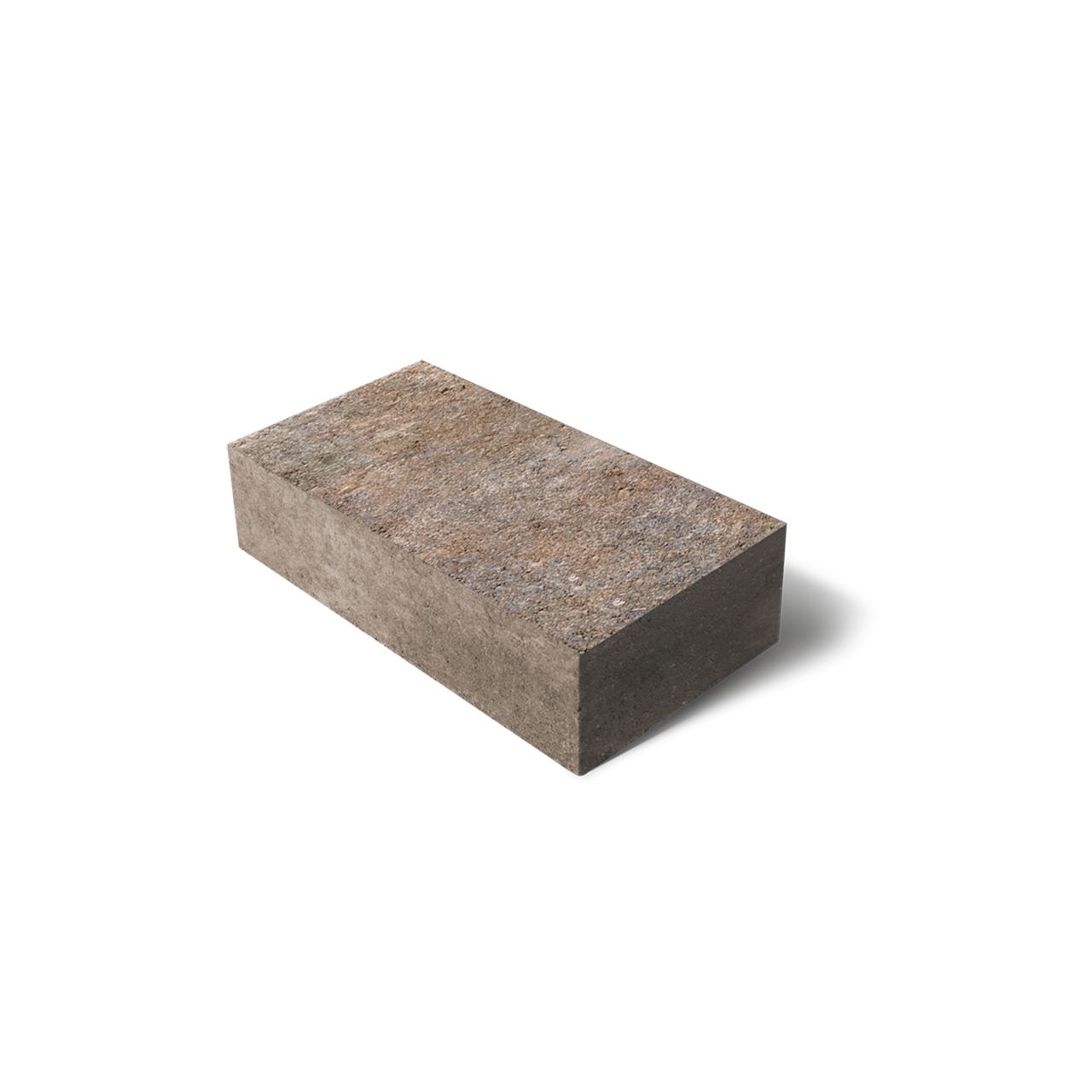

LARGE RECTANGLE
500mm x 100mm x 200mm
19 3/4" x 3 7/8" x 7 7/8"
RECTANGLE
400mm x 100mm x 200mm
15 3/4" x 3 7/8" x 7 7/8"

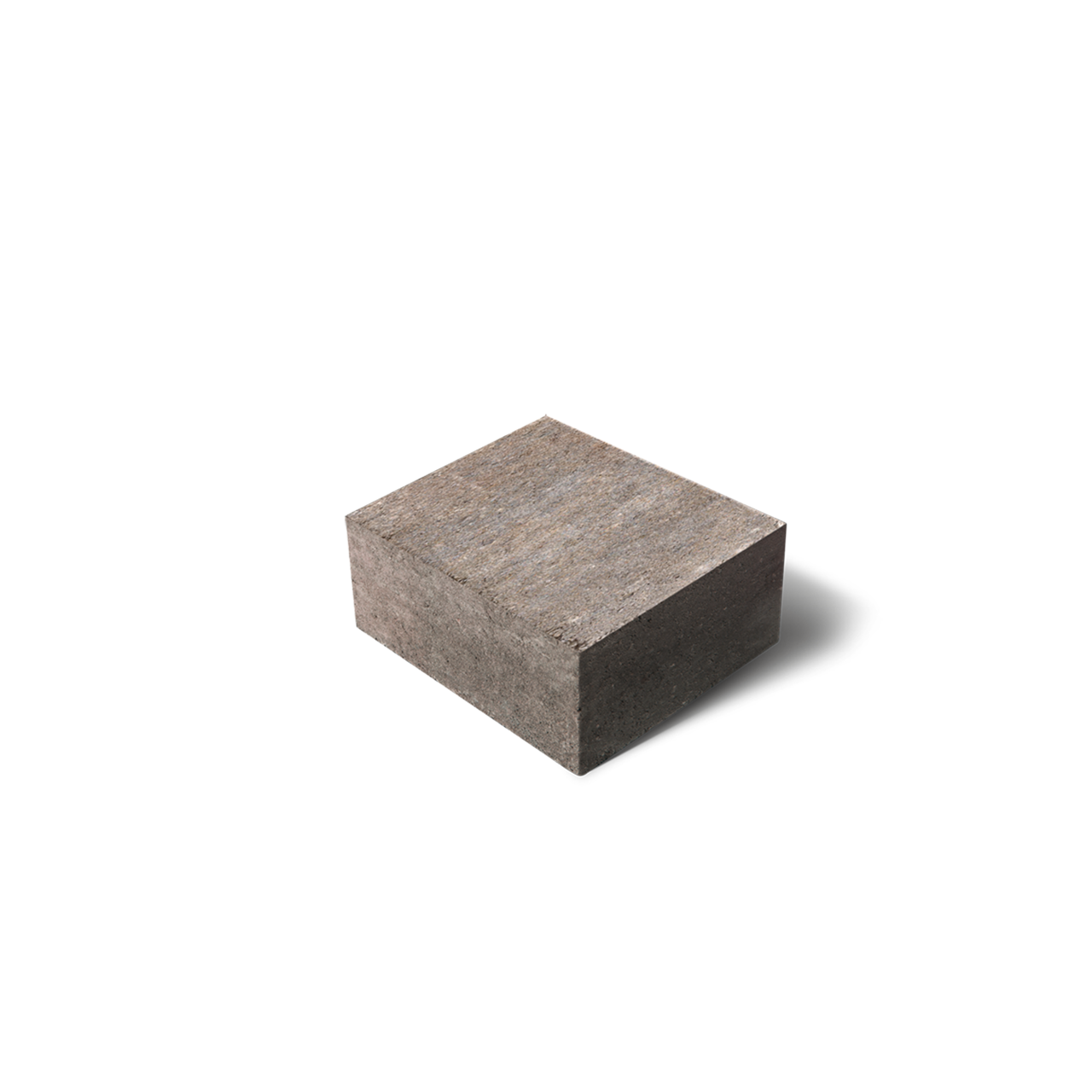

SMALL RECTANGLE
300mm x 100mm x 200mm
11 7/8" x 3 7/8" x 7 7/8"
XL RECTANGLE
600mm x 100mm x 200mm
23 5/8" x 3 7/8" x 7 7/8"
LARGE RECTANGLE
500mm x 100mm x 200mm
19 3/4" x 3 7/8" x 7 7/8"
RECTANGLE
400mm x 100mm x 200mm
15 3/4" x 3 7/8" x 7 7/8"
SMALL RECTANGLE
300mm x 100mm x 200mm
11 7/8" x 3 7/8" x 7 7/8"
XL RECTANGLE
600mm x 100mm x 200mm
23 5/8" x 3 7/8" x 7 7/8"
LARGE RECTANGLE
500mm x 100mm x 200mm
19 3/4" x 3 7/8" x 7 7/8"
RECTANGLE
400mm x 100mm x 200mm
15 3/4" x 3 7/8" x 7 7/8"
SMALL RECTANGLE
300mm x 100mm x 200mm
11 7/8" x 3 7/8" x 7 7/8"
Technologies
Technologies
Classic

Classic

Our budget-friendly, Unilock Classic pavers and walls are manufactured to exceed as ASTM standards for quality and strength. Available in classic shapes and styles, these products utilize a traditional product mix of large and small aggregates, that is consistent from top to bottom, with color mixed throughout.

Our technologies
Colors
ALMOND GROVE
SIERRA
GRANITE
Pick a color
ALMOND GROVE
SIERRA
GRANITE
Information
Information
Packaging

LINEO™ DIMENSIONAL STONE

Lineo Dimensional Stone is a modern version of the well known Brussels Dimensional Stone family. Lineo is the un-tumbled version with uniquely modern features.

Applications – Design and build projects such as planters, steps, grill islands, pillars, seat walls and water features. Recommended for straight applications only.

Capacity – walls up to 2 ft. (60 cm) in height and hardscape features up to 4 ft. (1.2m)

Recommended Base Stabilization – one layer of DriveGrid™ stabilization grid between subgrade and base material. Use under Standard Base or Permeable Base.

Standard Base – Min. 6” – 8” of ¾” Crusher Run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).

Alternative Permeable Base – Min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together).

Leveling – Leveling retaining wall blocks directly on top of gravel is tedious and generally does not yield the best results. U-Grip Base units or universal base pads are recommended under all Unilock walls for improved accuracy and speedier installation. Additional benefits include long term structural integrity and an overall better appearance. Poured concrete leveling pads, reinforced with rebar, are also a great way to accomplish leveling, particularly for larger installations. You must ensure that the concrete is poured and finished perfectly in order to achieve a good visual appearance.

Connection – Lineo has small spacer strips that are placed between the blocks during construction to create a 3/16” (4mm) gap between units. Lineo relies on a concrete adhesive for connection between units. In order to make a connection between blocks, the adhesive must be “mounded” higher than 3/16” (4mm) in evenly spaced blobs so that it adheres the units together. Always read adhesive manufacturers’ directions prior to gluing.

Handling – Handle carefully so you don’t chip the nice crisp edges.

Coping - This wall does not require coping, but coping is generally used to complete the installation visually. Choose a manufactured coping such as Unilock Universal Coping or any of our natural stone coping options. Install with tight joints or 3/16” gap between units and amend with an exterior latex caulking. Cutting may be required; a diamond blade saw is required to cut coping properly. Glue all coping using a specially formulated concrete adhesive that is strong and will not break down over time. Always read adhesive manufacturers’ directions prior to gluing.

Unit Thickness (mm)
Layers per Bundle
FcFt per Bundle
FcFt per Layer
FcFt per Unit
Units per Bundle
Units per Layer
Lbs per Bundle
Lbs per Layer
Lbs per Unit
(100) RANDOM
Random Bundle
100
3
29.92
9.97
0.50
60
20
2,642.80
880.93
44.05
PILLAR UNIT
100
3
48.24
16.08
0.67
72
24
2,820.90
940.30
39.18
