ESTATE WALL

The antique-textured finish of Estate Wall creates the appearance of timeworn, natural rock.  Choose  3-stone random bundles that are 6” (15cm) high to create straight or curved walls, planters, steps, pillars, fire features, grill islands and more.  Plastic connectors create interlocking between rows and are supplied with the product.

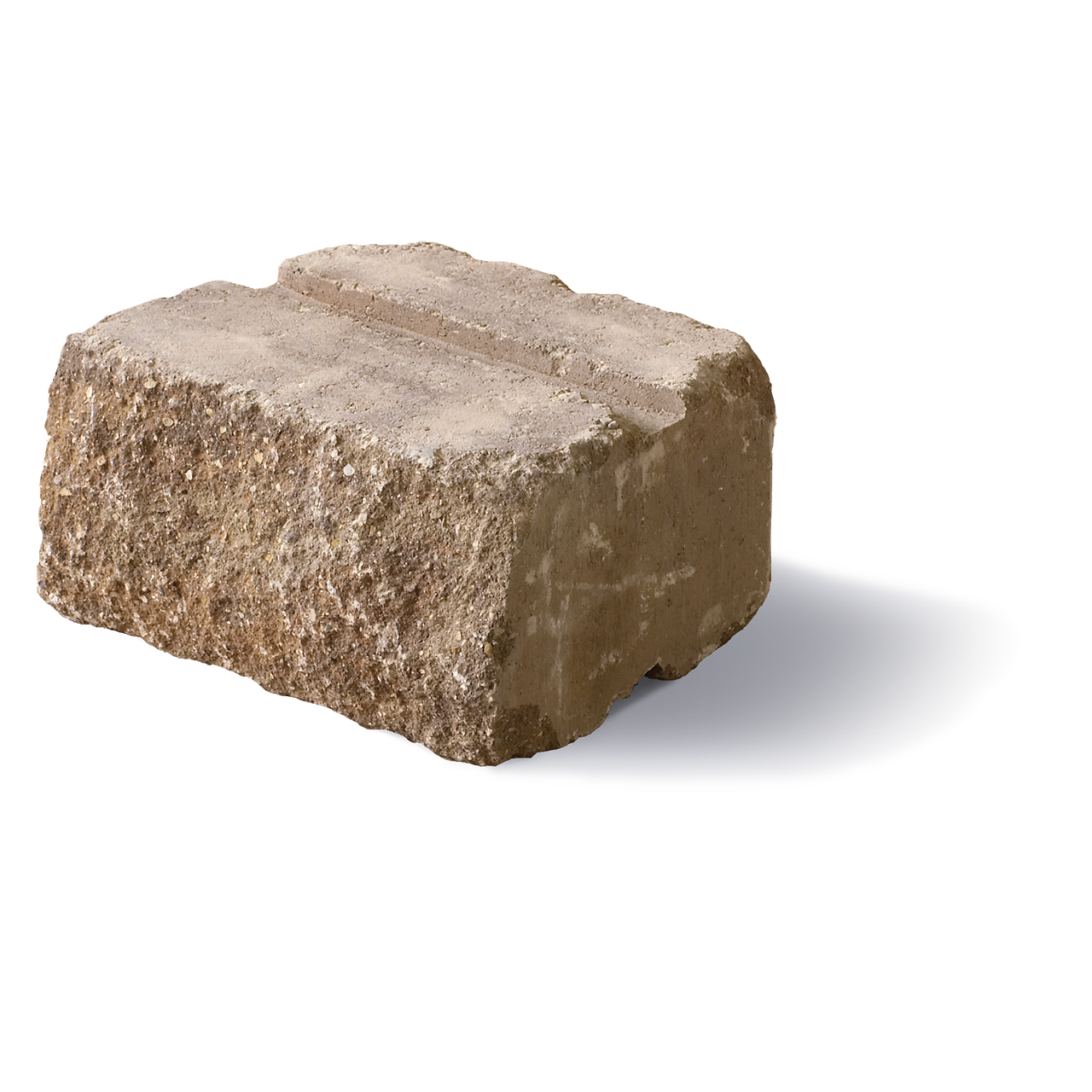

Estate Wall 150x380x230 Sierra
-
Estate Wall 150x380x230 Sierra
-

ESTATE WALL

The antique-textured finish of Estate Wall creates the appearance of timeworn, natural rock.  Choose  3-stone random bundles that are 6” (15cm) high to create straight or curved walls, planters, steps, pillars, fire features, grill islands and more.  Plastic connectors create interlocking between rows and are supplied with the product.

Colors
Applications
Fire Feature
Garden Wall
Outdoor Kitchen
Pillars
Retaining Wall
Seat Wall
Water Features
Shape and size
Sold individually

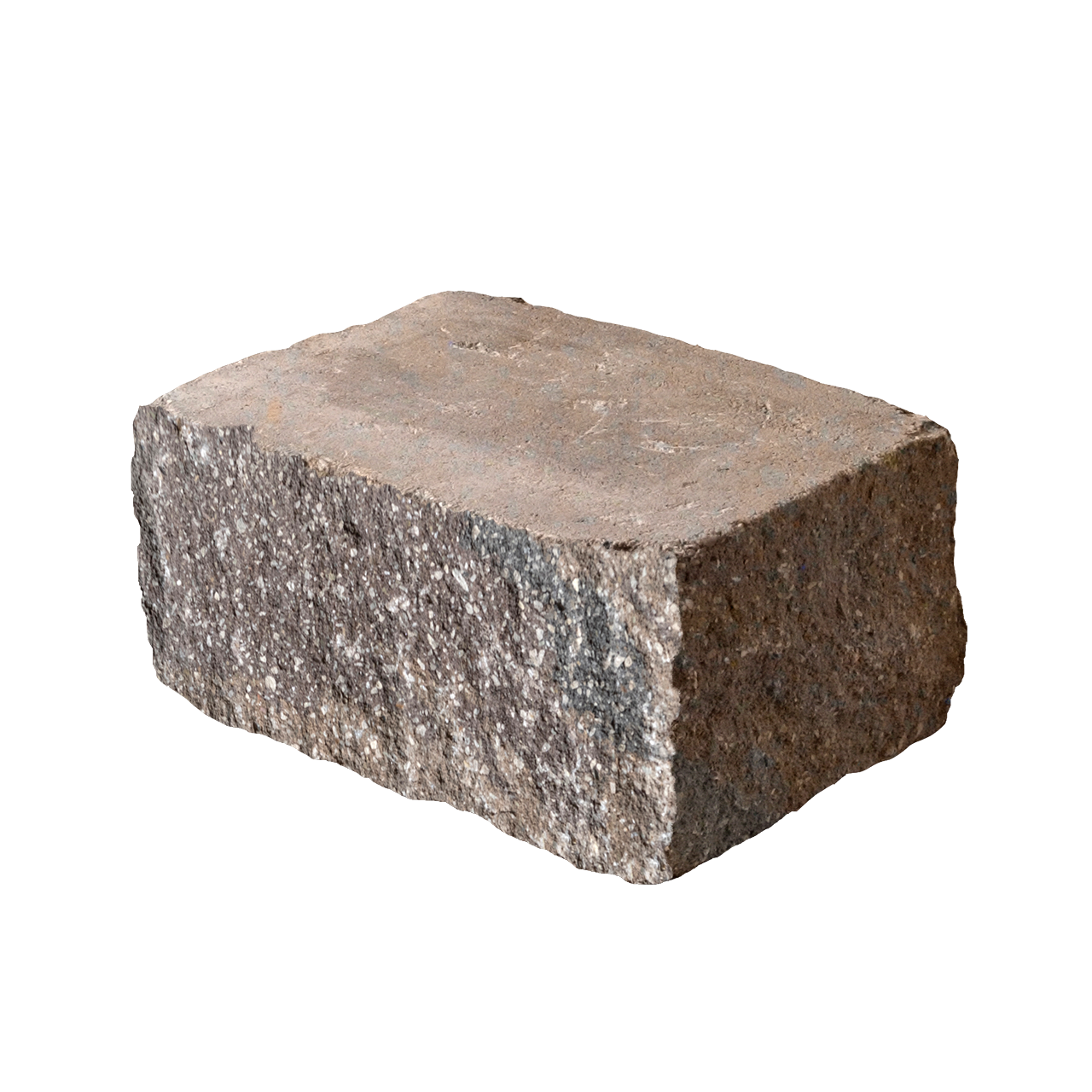

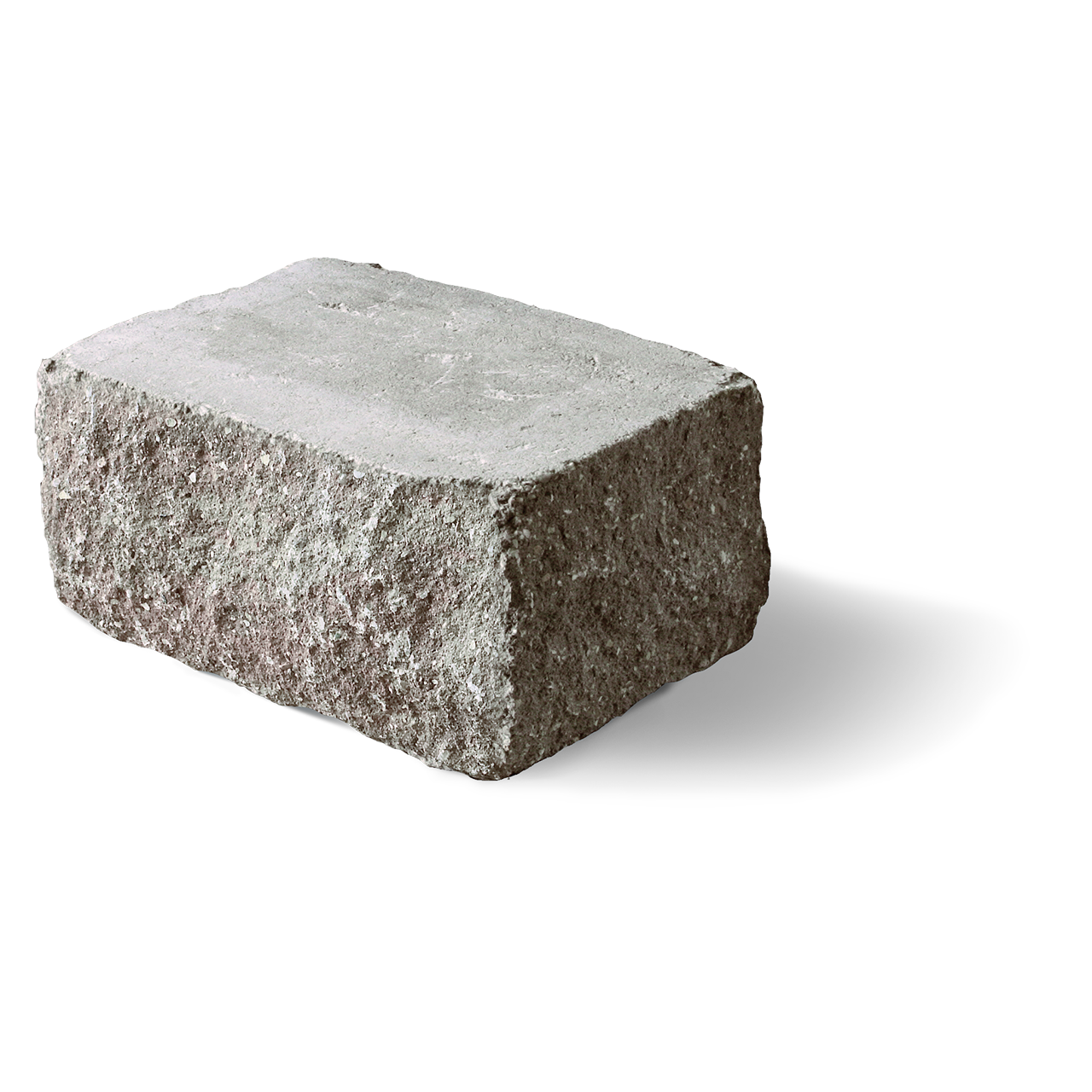

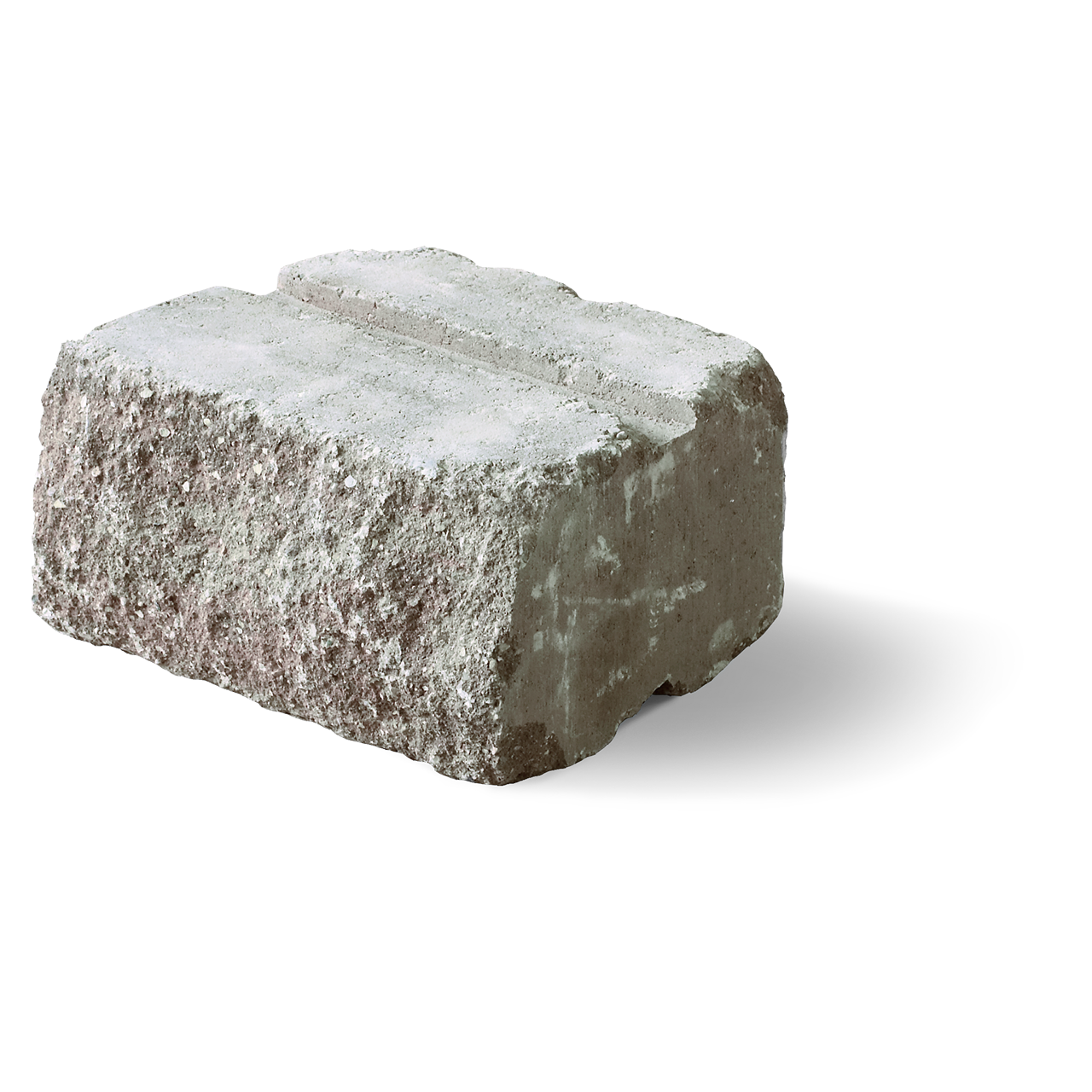

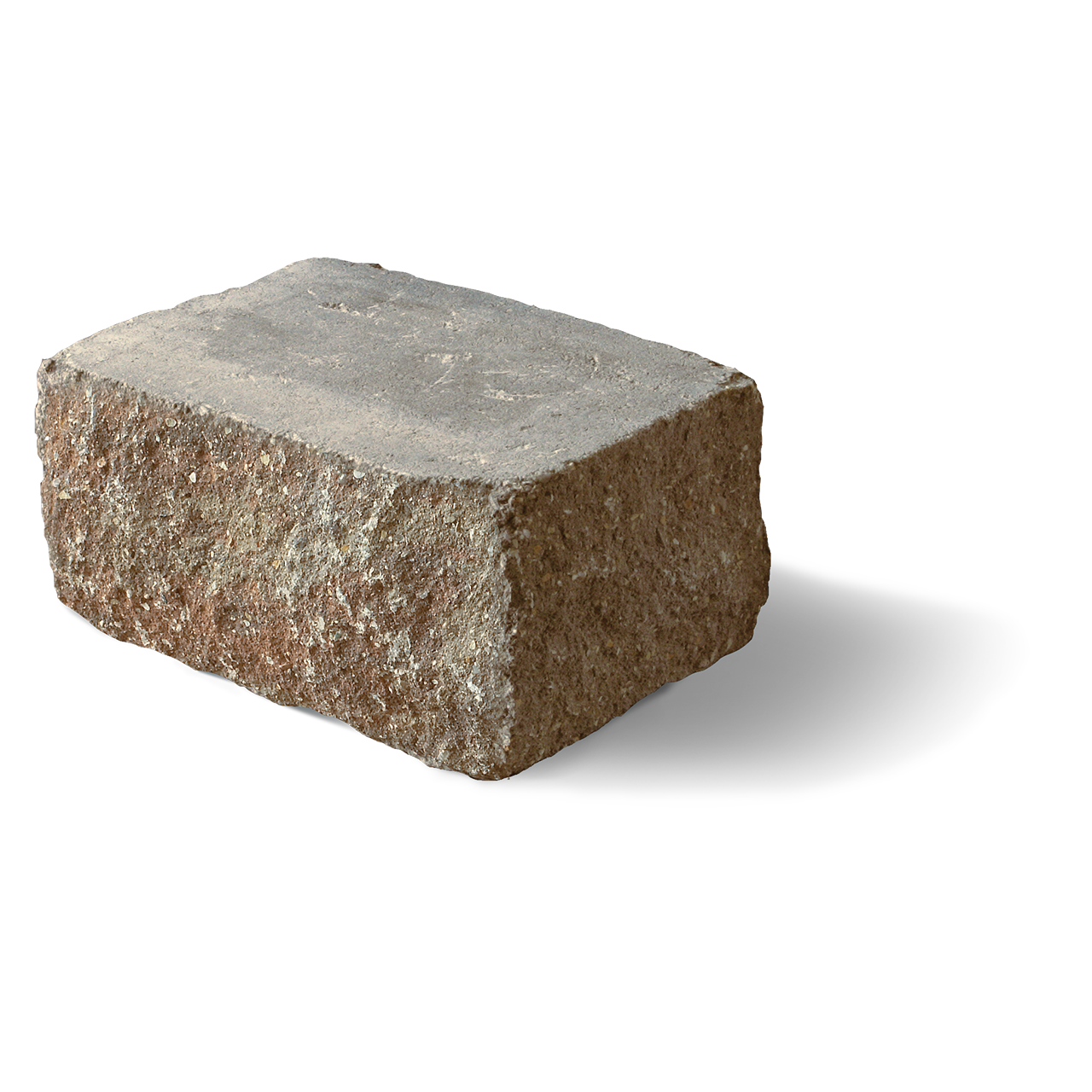

CORNER 6"
320mm x 150mm x 230mm
12 5/8" x 5 7/8" x 9"
CORNER 6"
320mm x 150mm x 230mm
12 5/8" x 5 7/8" x 9"
CORNER 6"
320mm x 150mm x 230mm
12 5/8" x 5 7/8" x 9"
Random Bundle
LARGE 6"
375mm x 150mm x 230mm
14 7/8" x 5 7/8" x 9"
MEDIUM 6"
300mm x 150mm x 230mm
11 7/8" x 5 7/8" x 9"
SMALL 6"
228mm x 150mm x 230mm
9" x 5 7/8" x 9"
LARGE 6"
375mm x 150mm x 230mm
14 7/8" x 5 7/8" x 9"
MEDIUM 6"
300mm x 150mm x 230mm
11 7/8" x 5 7/8" x 9"
SMALL 6"
228mm x 150mm x 230mm
9" x 5 7/8" x 9"
LARGE 6"
375mm x 150mm x 230mm
14 7/8" x 5 7/8" x 9"
MEDIUM 6"
300mm x 150mm x 230mm
11 7/8" x 5 7/8" x 9"
SMALL 6"
228mm x 150mm x 230mm
9" x 5 7/8" x 9"

Product Gallery

Estate Wall Fire Water Feature Sierra 8684
Estate Wall Outdoor Kitchen River 8665
Estate Wall Walls Sierra 0776
Estate Wall Outdoor Kitchen Sierra 8666
Technologies
Technologies
Classic

Classic

Our budget-friendly, Unilock Classic pavers and walls are manufactured to exceed as ASTM standards for quality and strength. Available in classic shapes and styles, these products utilize a traditional product mix of large and small aggregates, that is consistent from top to bottom, with color mixed throughout.

Our technologies
Colors

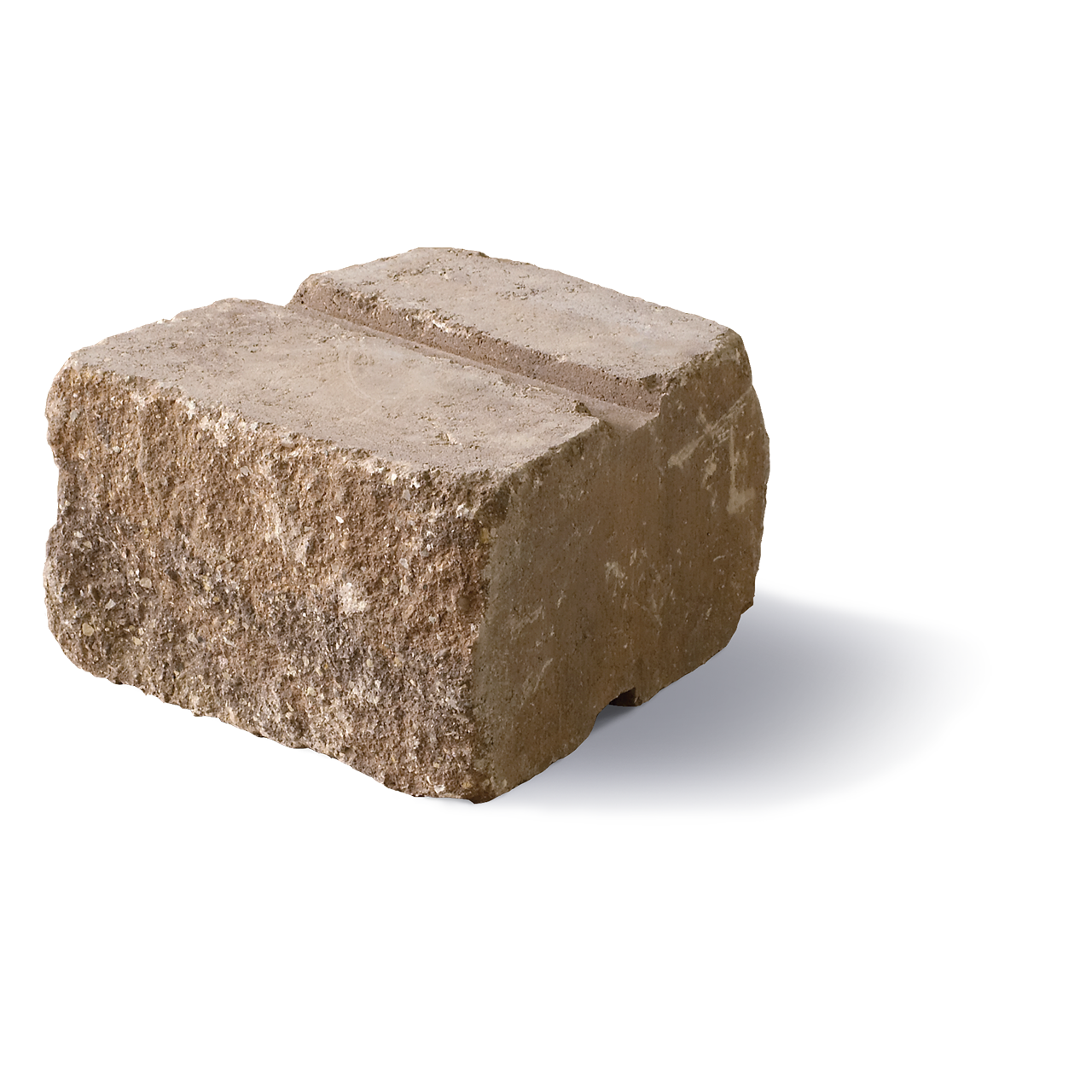

SIERRA

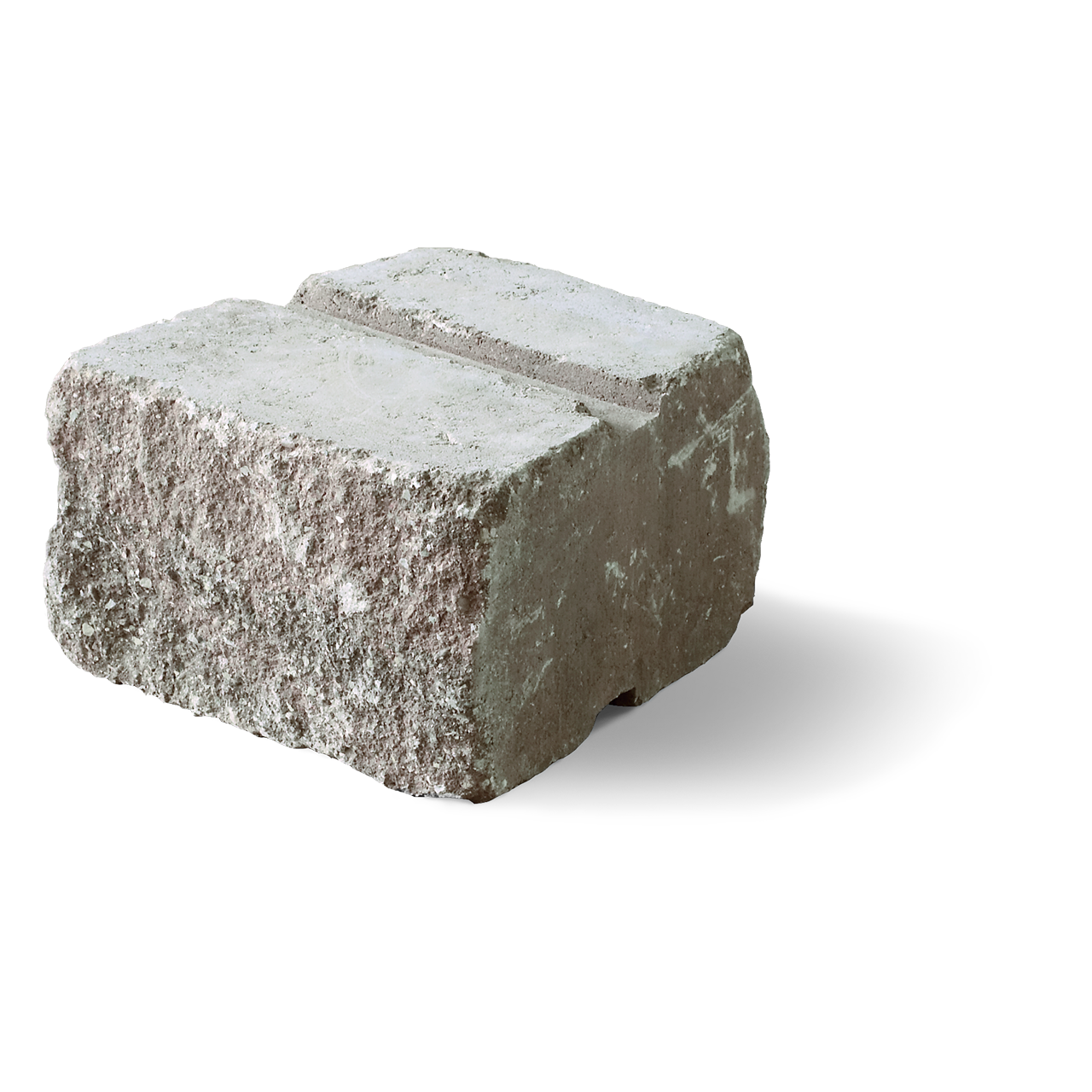

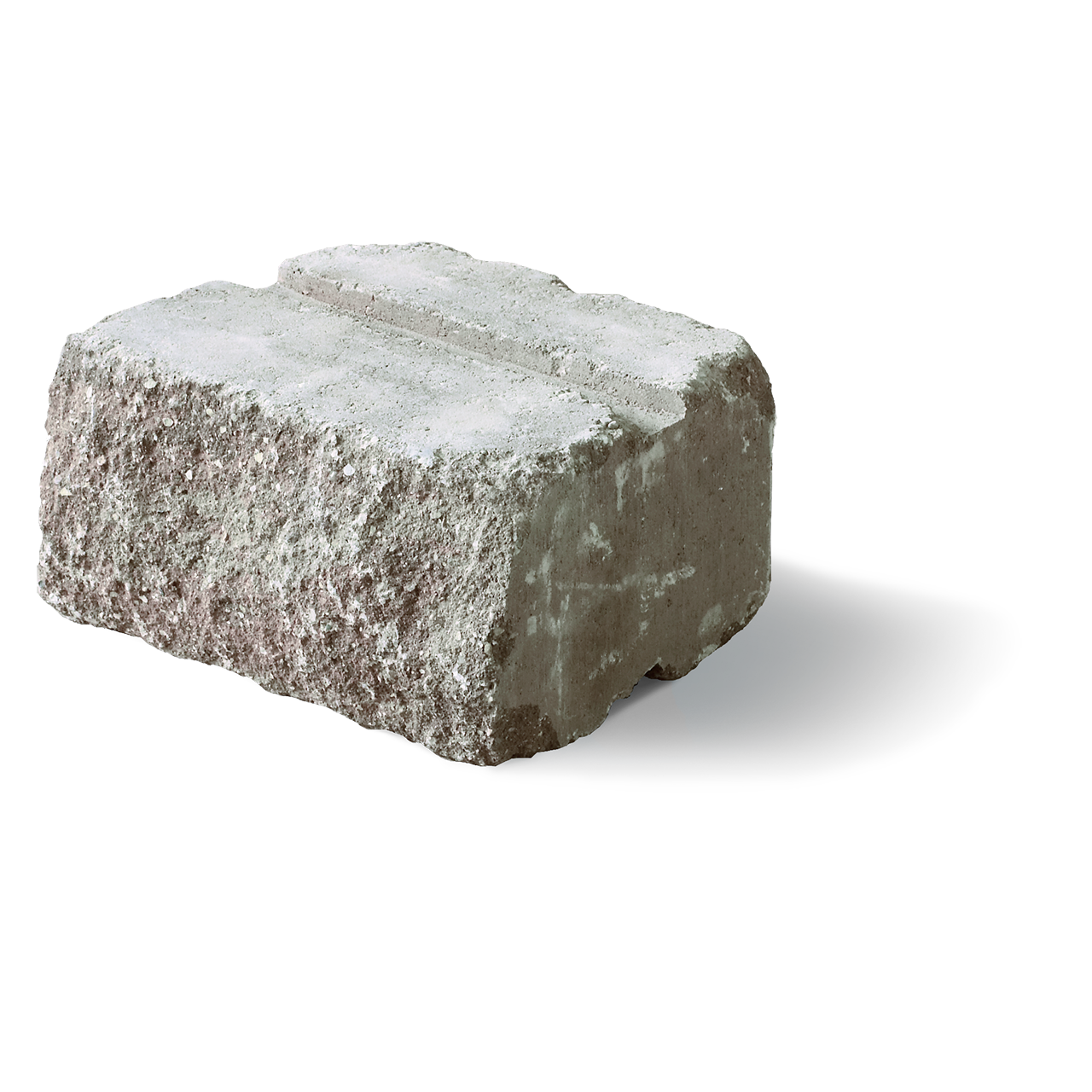

GRANITE

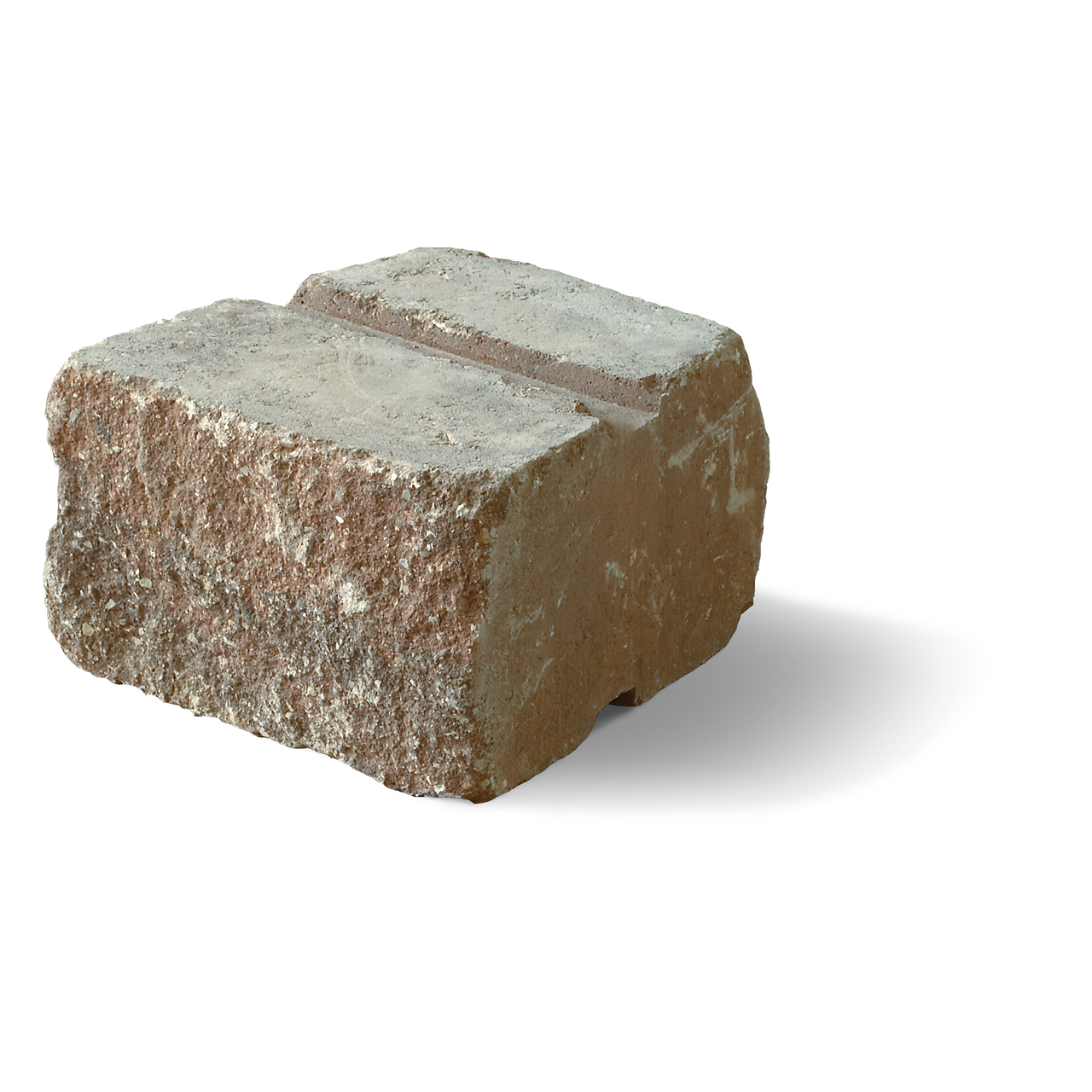

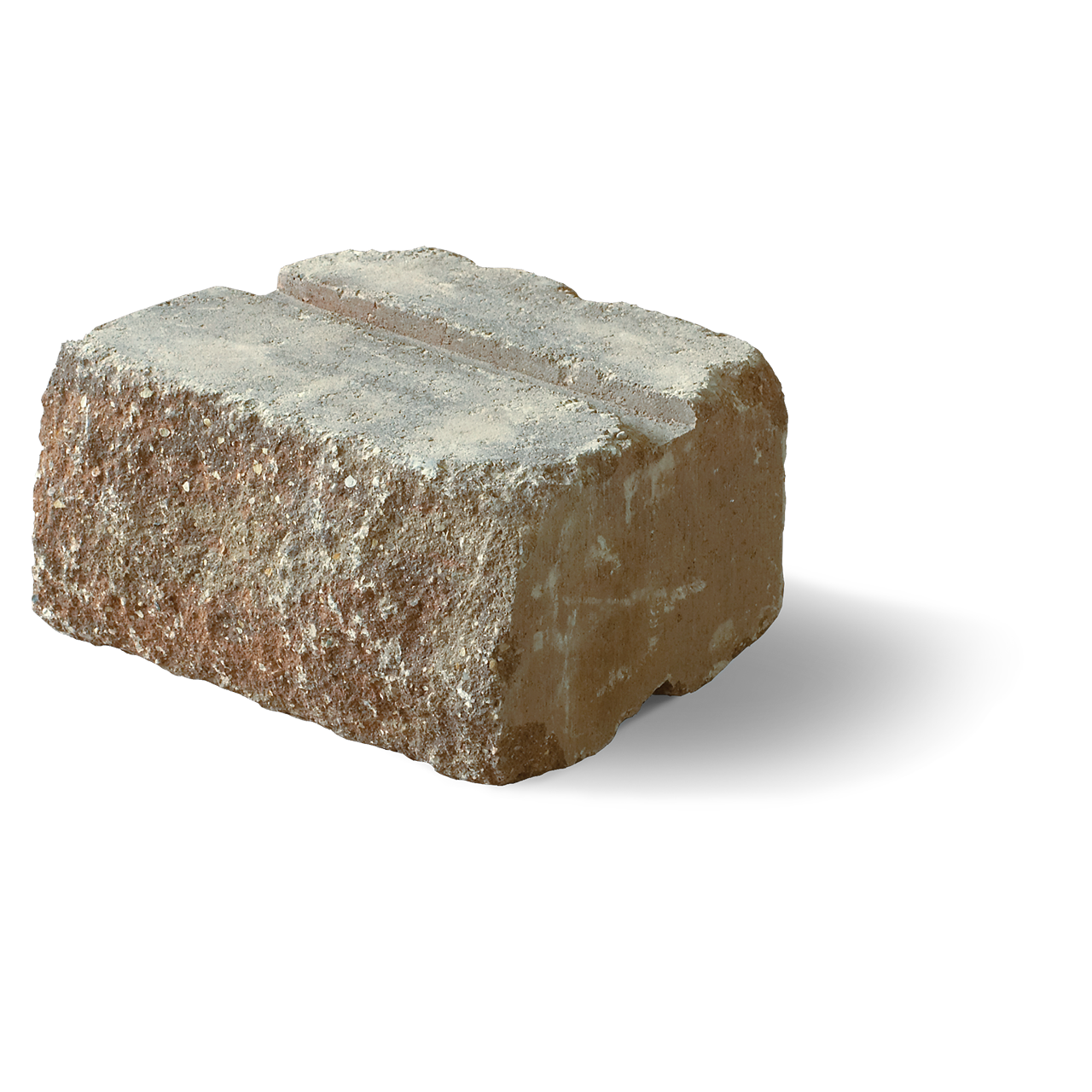

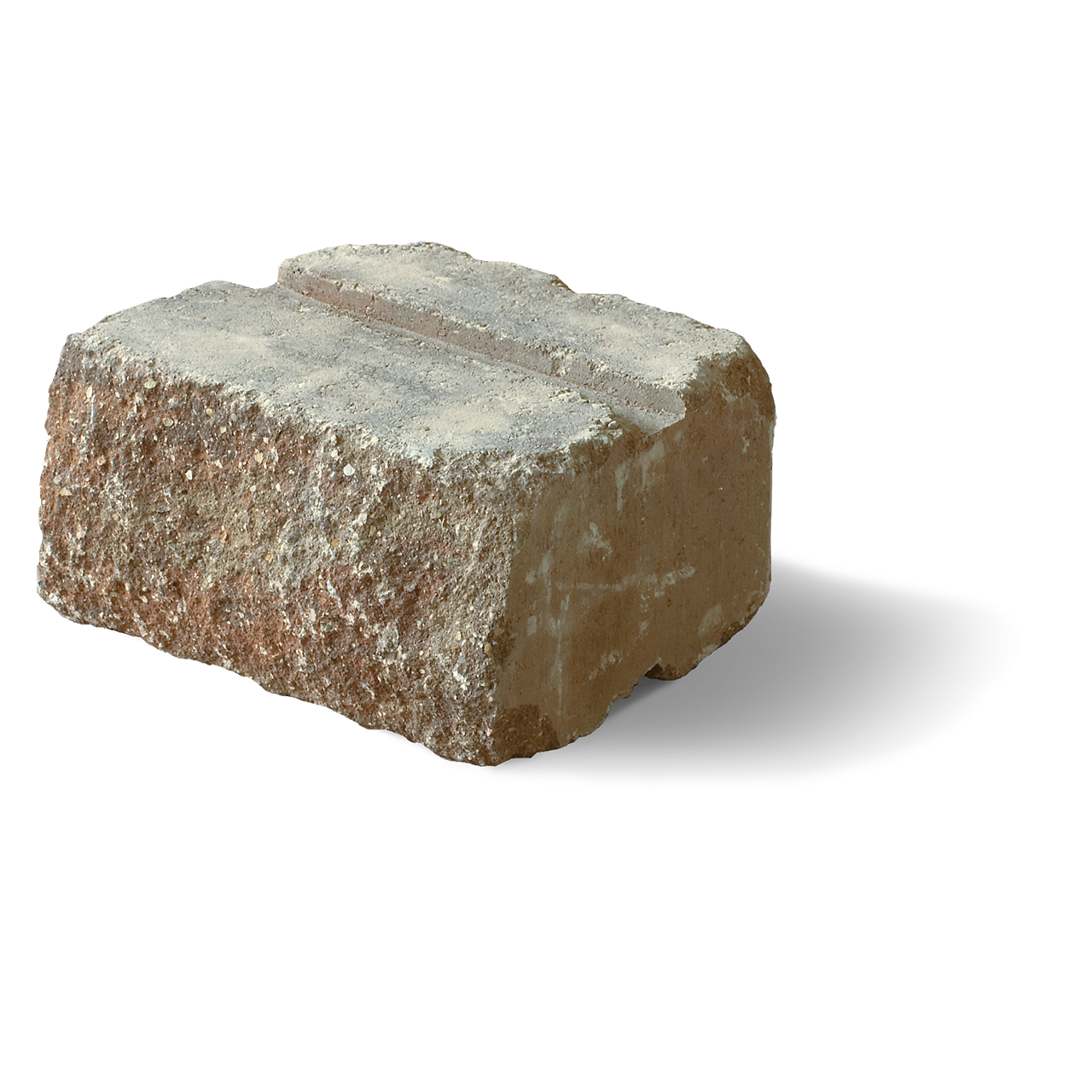

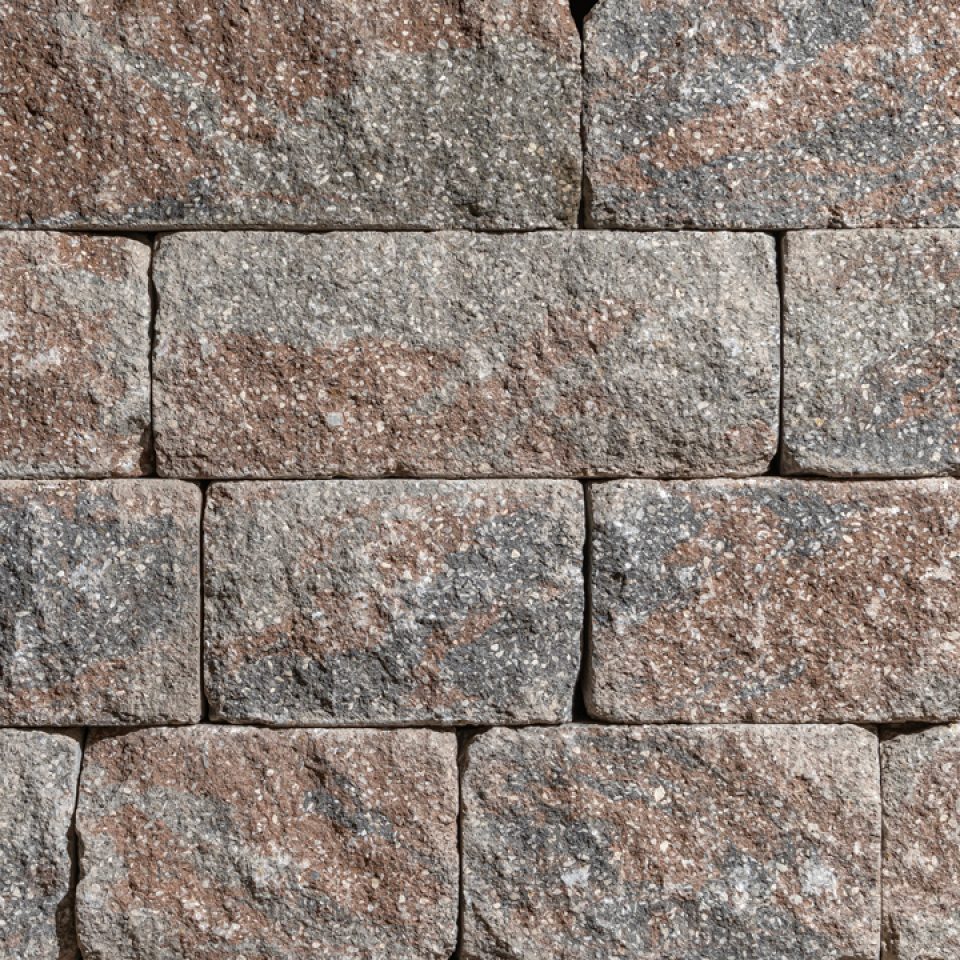

RIVER
Pick a color
SIERRA
GRANITE
RIVER

See What you Can Build with This Product

View Estate Wall™ Landscape Features
Information
Information
Packaging

ESTATE WALL™;

Add a regal touch to your home with a natural ledge rock look. The unique antique-textured finish of this majestic wall recreates the appearance of aged, natural rock. Create virtually any seat wall, planter, step or pillar design with these multiple length units.

Applications – Design and build projects such as planters, steps, grill islands, pillars, seat walls and water features. Can be used for straight and curved installations (Radius 5’ is the tightest radius).

Capacity – Gravity walls up to 39” (1m). Geogrid reinforced walls up to 10 ft. (3 m).

Recommended Base Stabilization – one layer of DriveGrid™ stabilization grid between subgrade and base material. Use under Standard Base or Permeable Base.

Standard Base – Min. 6” – 8” of ¾” Crusher Run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).

Alternative Permeable Base – Min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together).

Leveling – Leveling retaining wall blocks directly on top of gravel is tedious and generally does not yield the best results. U-Grip Base units or universal base pads are recommended under all Unilock walls for improved accuracy and speedier installation. Additional benefits include long term structural integrity and an overall better appearance. Poured concrete leveling pads, reinforced with rebar, are also a great way to accomplish leveling, particularly for larger installations. You must ensure that the concrete is poured and finished perfectly in order to achieve a good visual appearance.

Connection – features channels on top and bottom of each stone which are connected using a small insert provided with the system. Use appropriate concrete adhesive for connection between units where an insert has been removed or omitted. Always read adhesive manufacturers’ directions prior to gluing.

Handling – No specific handling instructions.

Coping - This wall requires coping. Choose a manufactured coping such as Unilock Universal Coping or any of our natural stone coping options. Install with tight joints or 3/16” gap between units and amend with an exterior latex caulking. Cutting may be required; a diamond blade saw is required to cut coping properly. Glue all coping using a specially formulated concrete adhesive that is strong and will not break down over time. Always read adhesive manufacturers’ directions prior to gluing.

Unit Thickness (mm)
Layers per Bundle
FcFt per Bundle
FcFt per Layer
FcFt per Unit
Units per Bundle
Units per Layer
Lbs per Bundle
Lbs per Layer
Lbs per Section
Lbs per Unit
(150) RANDOM TAPERED
Random Bundle
150
4
24
6
0.50
48
12
2,296.80
574.20
574.20
47.85
CORNER 6"
150
4
16.66
4.17
0.52
32
8
1,776
444
444
55.50
