ESTATE WALL

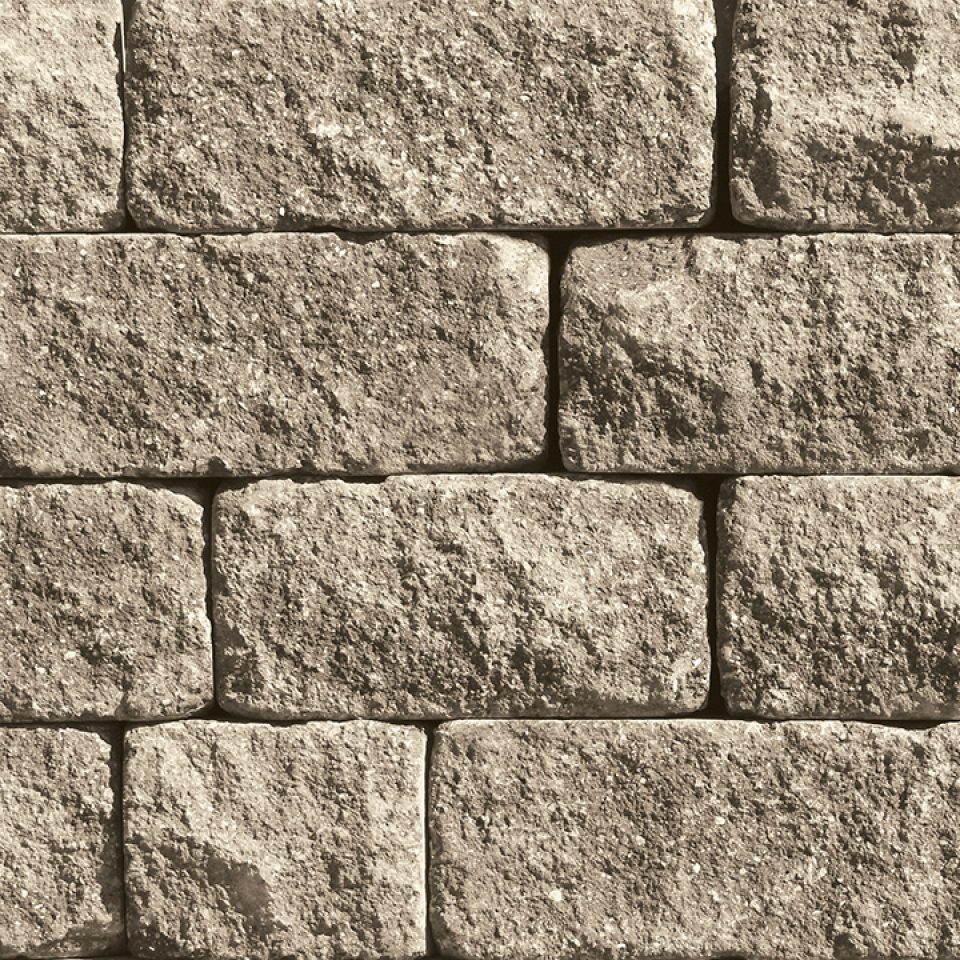

The antique-textured finish of Estate Wall creates the appearance of timeworn, natural rock.  Choose  3-stone random bundles that are 6” (15cm) higg to create straight or curved walls, planters, steps, pillars, fire features, grill islands and more.  Plastic connectors create interlocking between rows and are supplied with the product.

-
-

ESTATE WALL

The antique-textured finish of Estate Wall creates the appearance of timeworn, natural rock.  Choose  3-stone random bundles that are 6” (15cm) higg to create straight or curved walls, planters, steps, pillars, fire features, grill islands and more.  Plastic connectors create interlocking between rows and are supplied with the product.

Colors
Applications
Fire Features
Garden Walls
Outdoor Kitchen
Pillars
Water Features
Shape and size
Sold individually
CORNER 6"
320mm x 150mm x 230mm
12 5/8" x 5 7/8" x 9"
CORNER 6"
320mm x 150mm x 230mm
12 5/8" x 5 7/8" x 9"
CORNER 6"
320mm x 150mm x 230mm
12 5/8" x 5 7/8" x 9"
COPING TAPERED
320mm x 75mm x 300mm
12 5/8" x 3" x 11 7/8"
COPING TAPERED
320mm x 75mm x 300mm
12 5/8" x 3" x 11 7/8"
COPING TAPERED
320mm x 75mm x 300mm
12 5/8" x 3" x 11 7/8"
Random Bundle
SMALL 6"
250mm x 150mm x 230mm
9 7/8" x 5 7/8" x 9"
SMALL 6"
250mm x 150mm x 230mm
9 7/8" x 5 7/8" x 9"
SMALL 6"
250mm x 150mm x 230mm
9 7/8" x 5 7/8" x 9"
SMALL 6"
250mm x 150mm x 230mm
9 7/8" x 5 7/8" x 9"
SMALL 6"
250mm x 150mm x 230mm
9 7/8" x 5 7/8" x 9"

Product Gallery

Unilock Estate Wall antiqued fire feature and retaining wall
Unilock Estate Wall antiqued wall
Unilock Estate Wall antiqued outdoor kitchen
Technologies
Technologies
Classic

Classic

Our budget-friendly, Unilock Classic pavers and walls are manufactured to exceed ASTM standards for quality and strength. Available in classic shapes and styles, these products utilize a traditional product mix of large and small aggregates that is consistent from top to bottom with color mixed throughout.

Our technologies
Colors
SIERRA
SANDSTONE
GRANITE
Pick a color
SIERRA
SANDSTONE
GRANITE

See What you Can Build with This Product

View Estate Wall™ Landscape Features
Information
Information
Packaging
Downloads

ESTATE WALL™;

Add a regal touch to your home with a natural ledge rock look. The unique antique-textured finish of this majestic wall recreates the appearance of aged, natural rock. Create virtually any seat wall, planter, step or pillar design with these multiple length units.

Applications – Design and build projects such as planters, steps, grill islands, pillars, seat walls and water features. Can be used for straight and curved installations (Radius 5’ is the tightest radius).

Capacity – Gravity walls up to 39” (1m). Geogrid reinforced walls up to 10 ft. (3 m).

Recommended Base Stabilization – one layer of DriveGrid™ stabilization grid between subgrade and base material. Use under Standard Base or Permeable Base.

Standard Base – Min. 6” – 8” of ¾” Crusher Run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).

Alternative Permeable Base – Min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together).

Leveling – Leveling retaining wall blocks directly on top of gravel is tedious and generally does not yield the best results. U-Grip Base units or universal base pads are recommended under all Unilock walls for improved accuracy and speedier installation. Additional benefits include long term structural integrity and an overall better appearance. Poured concrete leveling pads, reinforced with rebar, are also a great way to accomplish leveling, particularly for larger installations. You must ensure that the concrete is poured and finished perfectly in order to achieve a good visual appearance.

Connection – features channels on top and bottom of each stone which are connected using a small insert provided with the system. Use appropriate concrete adhesive for connection between units where an insert has been removed or omitted. Always read adhesive manufacturers’ directions prior to gluing.

Handling – No specific handling instructions.

Coping - This wall requires coping. Choose a manufactured coping such as Unilock Universal Coping or any of our natural stone coping options. Install with tight joints or 3/16” gap between units and amend with an exterior latex caulking. Cutting may be required; a diamond blade saw is required to cut coping properly. Glue all coping using a specially formulated concrete adhesive that is strong and will not break down over time. Always read adhesive manufacturers’ directions prior to gluing.

Layers per BundlePer Bundle SectionSailor LnFt Per SectionLin Ft per Bundle - SailorUnits Per SectionUnits per BundleUnits per LayerUnits per FcFtLbs per LayerLbs Per SectionLbs per BundleLbs per UnitLin Ft per Layer - SailorFcFt per LayerFcFt per BundleFcFt per Unitheight_1Soldier LnFt Per SectionLin Ft per Bundle - SoldierLin Ft per Layer - SoldierLin Ft per Unit - Soldier
COPING TAPEREDRandom BundleCORNER 6"
Layers per Bundle855
Per Bundle Section344
Sailor LnFt Per Section22 - -
Lin Ft per Bundle - Sailor66 - -
Units Per Section241510
Units per Bundle726040
Units per Layer9128
Units per FcFt3.841.921.92
Lbs per Layer299.00608.00435.84
Lbs Per Section797.33760.00544.80
Lbs per Bundle2,391.983,040.002,179.20
Lbs per Unit33.2250.6754.48
Lin Ft per Layer - Sailor8.25 - -
FcFt per Layer2.346.254.17
FcFt per Bundle18.7431.2520.83
FcFt per Unit0.260.520.52
Soldier LnFt Per Section - 15.5810.40
Lin Ft per Bundle - Soldier - 62.3041.60
Lin Ft per Layer - Soldier - 12.468.32
Lin Ft per Unit - Soldier - 1.041.04
