ESTATE WALL

The antique-textured finish of Estate Wall creates the appearance of timeworn, natural rock.  Choose  3-stone random bundles that are 6” (15cm) higg to create straight or curved walls, planters, steps, pillars, fire features, grill islands and more.  Plastic connectors create interlocking between rows and are supplied with the product.

Estate Wall 150x380x230 Granite
-
Estate Wall 150x380x230 Granite
-

ESTATE WALL

The antique-textured finish of Estate Wall creates the appearance of timeworn, natural rock.  Choose  3-stone random bundles that are 6” (15cm) higg to create straight or curved walls, planters, steps, pillars, fire features, grill islands and more.  Plastic connectors create interlocking between rows and are supplied with the product.

Colors
Applications
Fire Feature e1632317154571
Fire Features
Garden Wall e1632317150577
Garden Walls
Non structural Wall
Outdoor Kitchen e1632317137972
Outdoor Kitchen
Pillar e1632317122239
Pillars
Water Feature e1632317028508
Water Features
Shape and size
Sold individually

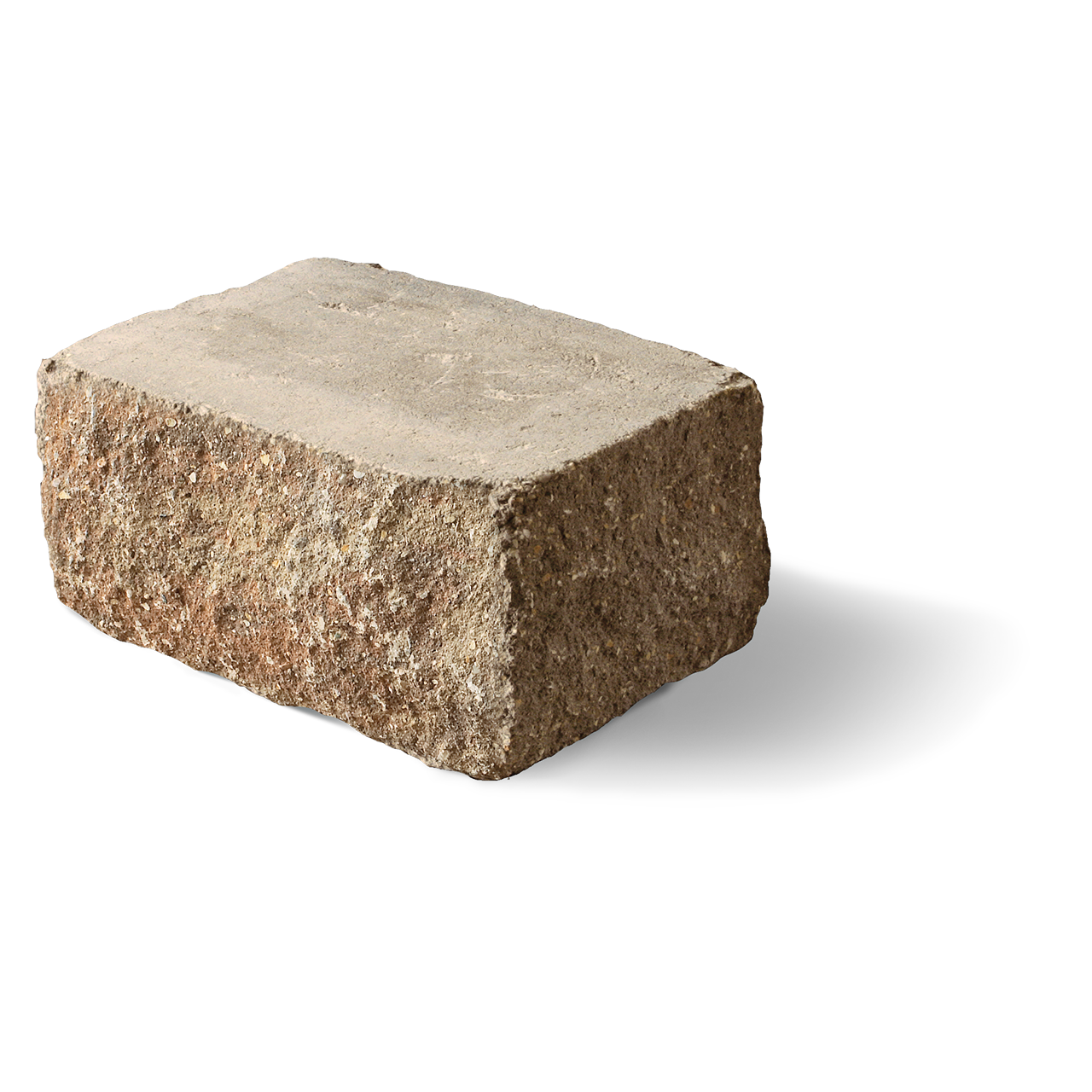

CORNER 6"
320mm x 150mm x 230mm
12 5/8" x 5 7/8" x 9"
CORNER 6"
320mm x 150mm x 230mm
12 5/8" x 5 7/8" x 9"
CORNER 6"
320mm x 150mm x 230mm
12 5/8" x 5 7/8" x 9"
CORNER 6"
320mm x 150mm x 230mm
12 5/8" x 5 7/8" x 9"
COPING TAPERED
320mm x 75mm x 300mm
12 5/8" x 3" x 11 7/8"
COPING TAPERED
320mm x 75mm x 300mm
12 5/8" x 3" x 11 7/8"
COPING TAPERED
320mm x 75mm x 300mm
12 5/8" x 3" x 11 7/8"
COPING TAPERED
320mm x 75mm x 300mm
12 5/8" x 3" x 11 7/8"
Random Bundle

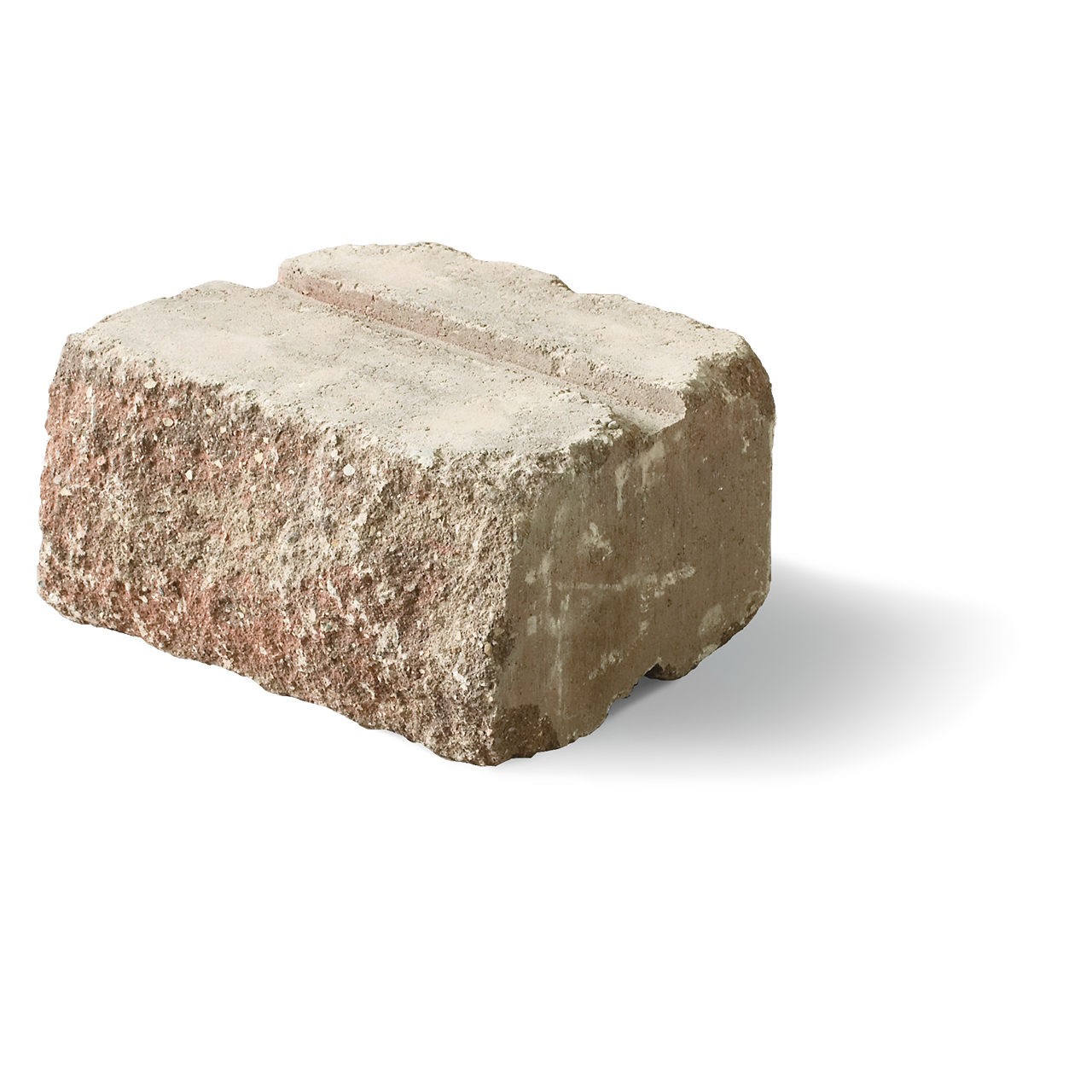

LARGE 6"
380mm x 150mm x 230mm
15" x 5 7/8" x 9"

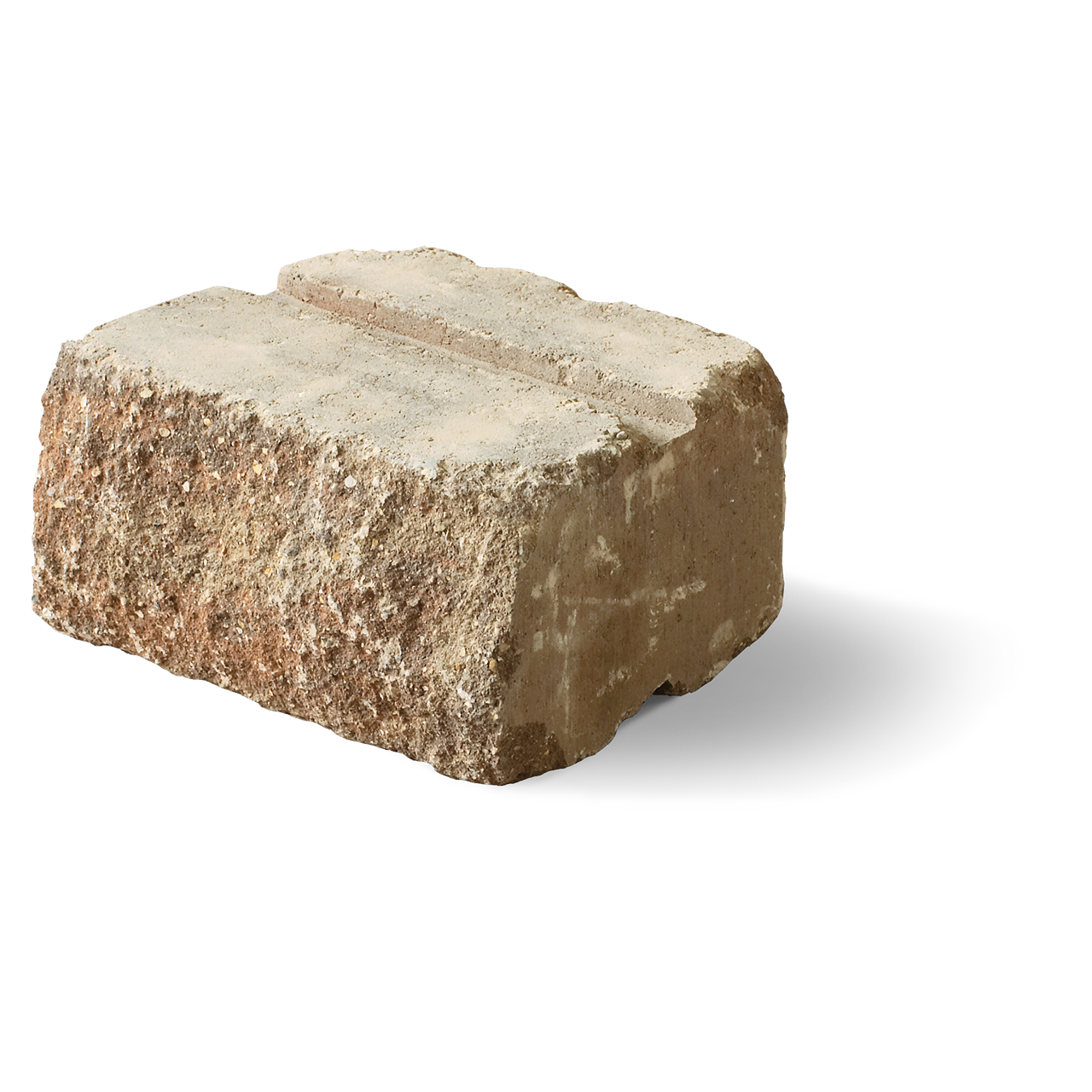

MEDIUM 6"
320mm x 150mm x 230mm
12 5/8" x 5 7/8" x 9"

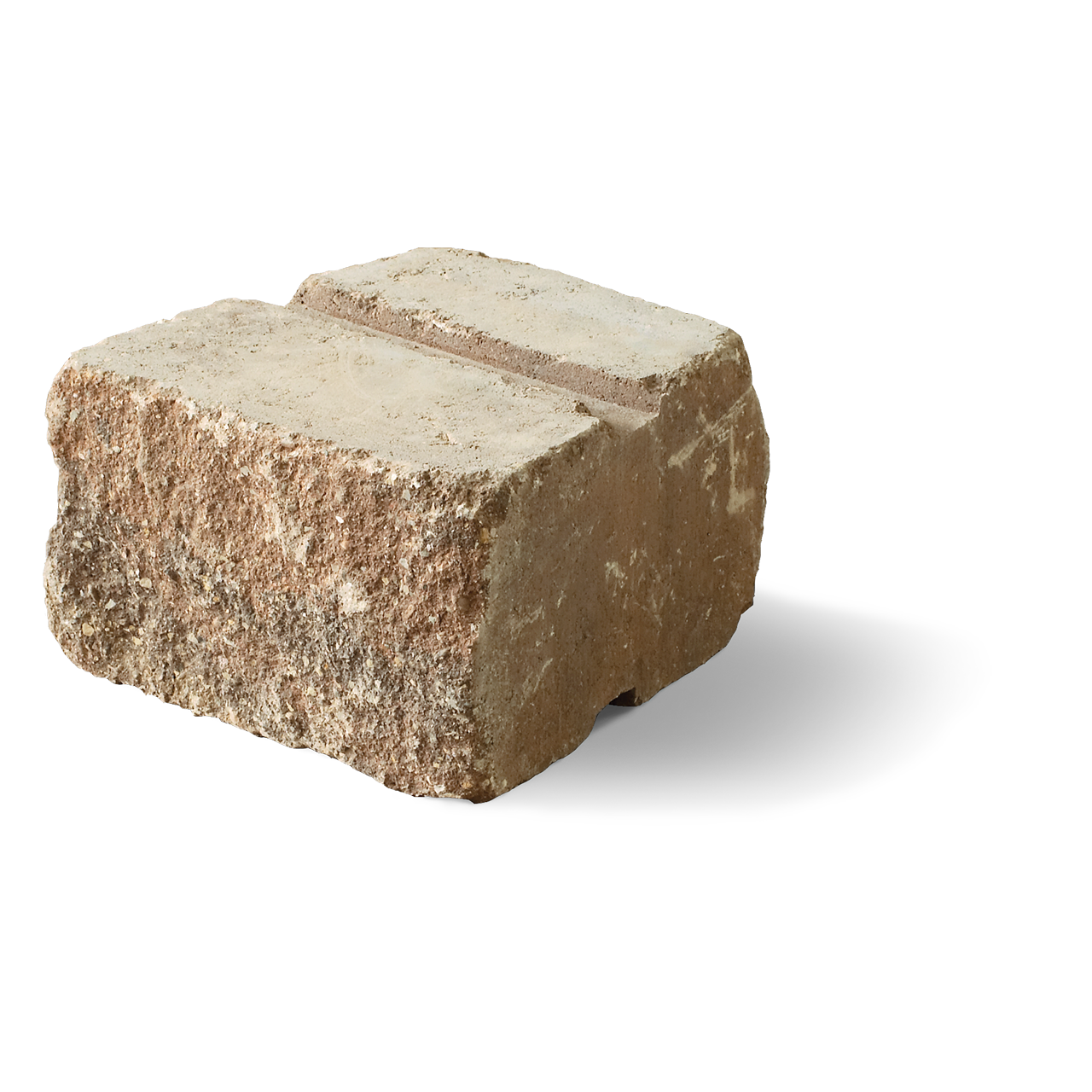

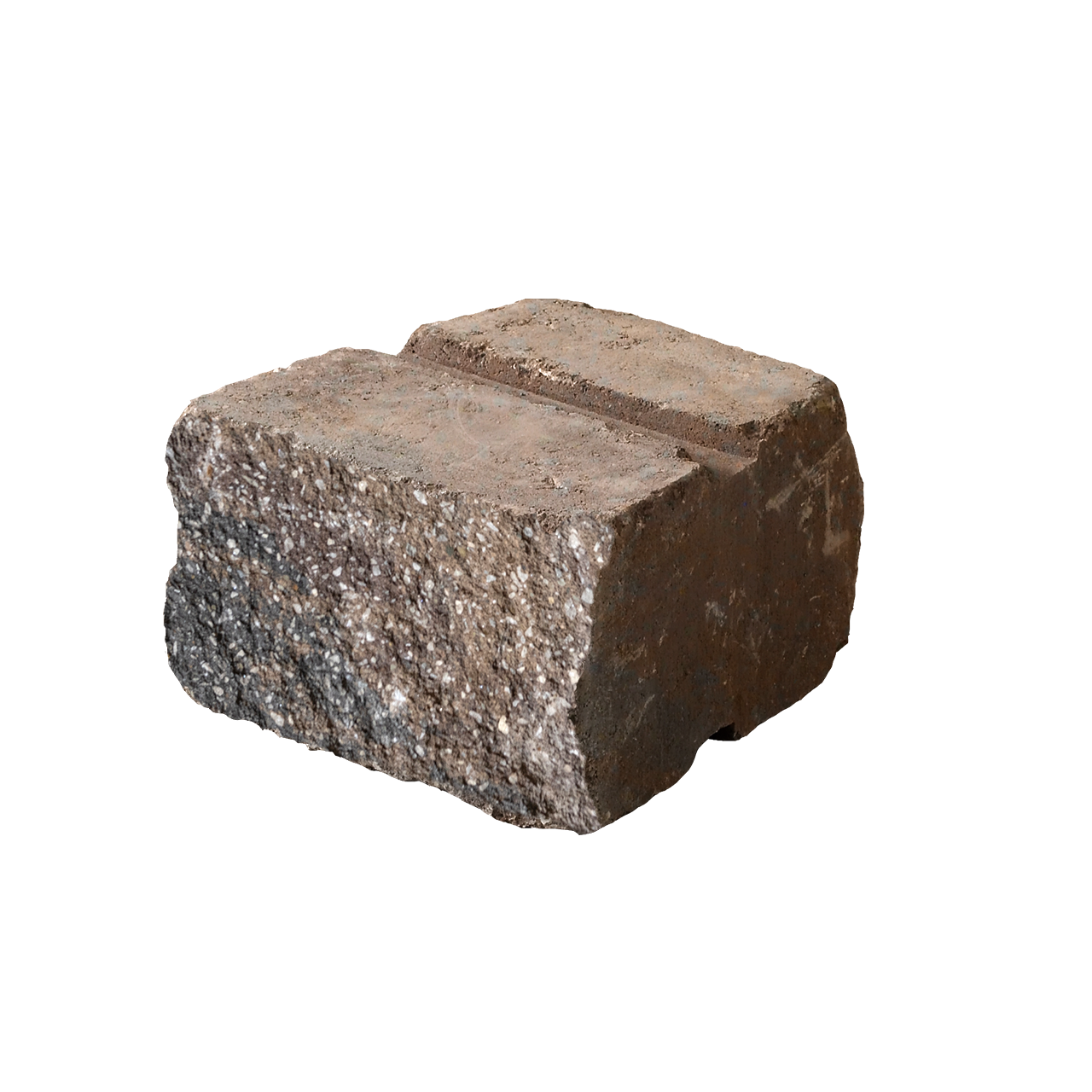

SMALL 6"
250mm x 150mm x 230mm
9 7/8" x 5 7/8" x 9"
LARGE 6"
380mm x 150mm x 230mm
15" x 5 7/8" x 9"
MEDIUM 6"
320mm x 150mm x 230mm
12 5/8" x 5 7/8" x 9"
SMALL 6"
250mm x 150mm x 230mm
9 7/8" x 5 7/8" x 9"
LARGE 6"
380mm x 150mm x 230mm
15" x 5 7/8" x 9"
MEDIUM 6"
320mm x 150mm x 230mm
12 5/8" x 5 7/8" x 9"
SMALL 6"
250mm x 150mm x 230mm
9 7/8" x 5 7/8" x 9"
LARGE 6"
380mm x 150mm x 230mm
15" x 5 7/8" x 9"
MEDIUM 6"
320mm x 150mm x 230mm
12 5/8" x 5 7/8" x 9"
SMALL 6"
250mm x 150mm x 230mm
9 7/8" x 5 7/8" x 9"

Product Gallery

Estate Wall Fire Water Feature Sierra 8684
Estate Wall Outdoor Kitchen River 8665
Estate Wall Walls Sierra 0776
Estate Wall Outdoor Kitchen Sierra 8666
Technologies
Technologies
Classic

Classic

Classic Coat helps protect the surface texture and enhances the color of Classic products. For purchasers who prefer the look of a sealed project, these factory-sealed products save the time and expense of after-market sealing.

Our technologies
Colors
GRANITE
SIERRA
SANDSTONE
RIVER
Pick a color
GRANITE
SIERRA
SANDSTONE
RIVER

See What you Can Build with This Product

View Estate Wall™ Landscape Features
Information
Information
Packaging
Downloads

ESTATE WALL™;

Add a regal touch to your home with a natural ledge rock look. The unique antique-textured finish of this majestic wall recreates the appearance of aged, natural rock. Create virtually any seat wall, planter, step or pillar design with these multiple length units.

Applications – Design and build projects such as planters, steps, grill islands, pillars, seat walls and water features. Can be used for straight and curved installations (Radius 5’ is the tightest radius).

Capacity – Gravity walls up to 39” (1m). Geogrid reinforced walls up to 10 ft. (3 m).

Recommended Base Stabilization – one layer of DriveGrid™ stabilization grid between subgrade and base material. Use under Standard Base or Permeable Base.

Standard Base – Min. 6” – 8” of ¾” Crusher Run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).

Alternative Permeable Base – Min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together).

Leveling – Leveling retaining wall blocks directly on top of gravel is tedious and generally does not yield the best results. U-Grip Base units or universal base pads are recommended under all Unilock walls for improved accuracy and speedier installation. Additional benefits include long term structural integrity and an overall better appearance. Poured concrete leveling pads, reinforced with rebar, are also a great way to accomplish leveling, particularly for larger installations. You must ensure that the concrete is poured and finished perfectly in order to achieve a good visual appearance.

Connection – features channels on top and bottom of each stone which are connected using a small insert provided with the system. Use appropriate concrete adhesive for connection between units where an insert has been removed or omitted. Always read adhesive manufacturers’ directions prior to gluing.

Handling – No specific handling instructions.

Coping - This wall requires coping. Choose a manufactured coping such as Unilock Universal Coping or any of our natural stone coping options. Install with tight joints or 3/16” gap between units and amend with an exterior latex caulking. Cutting may be required; a diamond blade saw is required to cut coping properly. Glue all coping using a specially formulated concrete adhesive that is strong and will not break down over time. Always read adhesive manufacturers’ directions prior to gluing.

height_1Layers per BundlePer Bundle SectionSoldier LnFt Per SectionLin Ft per Bundle - SoldierUnits Per SectionUnits per BundleUnits per LayerUnits per FcFtLbs per LayerLbs Per SectionLbs per BundleLbs per UnitLin Ft per Layer - SoldierLin Ft per Unit - SoldierFcFt per LayerFcFt per BundleFcFt per UnitLin Ft per Bundle - SailorLin Ft per Layer - Sailor
Random BundleCOPING TAPEREDCOPING TAPEREDCOPING TAPEREDCORNER 6"CORNER 6"COPING TAPEREDCORNER 6"CORNER 6"
Layers per Bundle588855855
Per Bundle Section433344344
Soldier LnFt Per Section15.58 - - - 10.4010.40 - 10.4010.40
Lin Ft per Bundle - Soldier62.30 - - - 41.6041.60 - 41.6041.60
Units Per Section152424241010241010
Units per Bundle607272724040724040
Units per Layer1299988988
Units per FcFt1.923.843.843.841.921.923.841.921.92
Lbs per Layer608.00299.00299.00299.00452.80452.80299.00452.80452.80
Lbs Per Section760.00797.33797.33797.33566566797.33566566
Lbs per Bundle3,040.002,391.982,391.982,391.98226422642,391.9822642264
Lbs per Unit50.6733.2233.2233.2256.6056.6033.2256.6056.60
Lin Ft per Layer - Soldier12.46 - - - 8.328.32 - 8.328.32
Lin Ft per Unit - Soldier1.04 - - - 1.041.04 - 1.041.04
FcFt per Layer6.252.342.342.344.174.172.344.174.17
FcFt per Bundle31.2518.7418.7418.7420.8320.8318.7420.8320.83
FcFt per Unit0.520.260.260.260.520.520.260.520.52
Lin Ft per Bundle - Sailor - 666666 - - 66 - -
Lin Ft per Layer - Sailor - 8.258.258.25 - - 8.25 - -
