ECO-PRIORA

Simple shapes and a smooth surface texture give this permeable paver system a sleek, contemporary look. Special spacer bars create a 7mm gap between Eco-Priora units which allows water to flow through. When installed on an open graded base with a fine stone chip between the joints, this allows rainwater to permeate the paved surface where it can then be absorbed by the subsoil. In residential areas or commercial developments where there are restrictions on the amount of land that can be covered with non-permeable surfaces, using Eco-Priora to turn a driveway or parking lot into a permeable surface can be very useful. However, the environmental benefits of reducing the load on municipal stormwater runoff systems, along with reduced puddling and ice build-up, are relevant for any project. For large scale commercial projects, special order colors and textures are available.

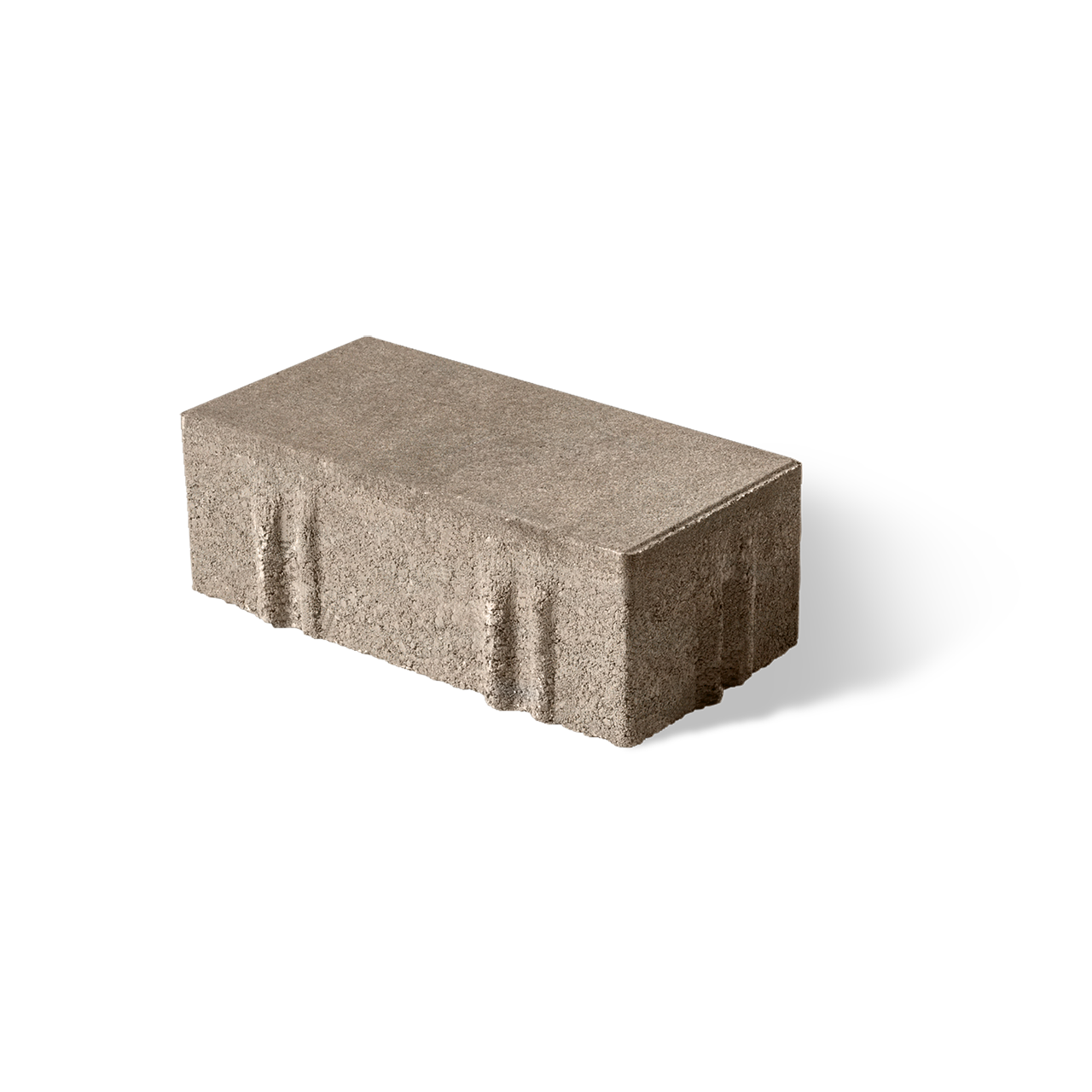

Eco Priora 120x240x80 Beechwood
-
Eco Priora 120x240x80 Beechwood
-

ECO-PRIORA

Simple shapes and a smooth surface texture give this permeable paver system a sleek, contemporary look. Special spacer bars create a 7mm gap between Eco-Priora units which allows water to flow through. When installed on an open graded base with a fine stone chip between the joints, this allows rainwater to permeate the paved surface where it can then be absorbed by the subsoil. In residential areas or commercial developments where there are restrictions on the amount of land that can be covered with non-permeable surfaces, using Eco-Priora to turn a driveway or parking lot into a permeable surface can be very useful. However, the environmental benefits of reducing the load on municipal stormwater runoff systems, along with reduced puddling and ice build-up, are relevant for any project. For large scale commercial projects, special order colors and textures are available.

Colors
Applications
Borders and Accents
Driveway
Heavy Duty Vechicular
Patio & Walkway
Permeable
Shape and size
5"X10"
120mm x 240mm x 80mm
4 3/4" x 9 1/2" x 3 1/8"

Product Gallery

Eco Priora Walkways Ganite 6929
Eco Priora Walkways Heritage Brown Il Campo 4777
Eco Priora Walkways Opal 0024
Technologies
Technologies
Classic

Classic

Our budget-friendly, Unilock Classic pavers and walls are manufactured to exceed as ASTM standards for quality and strength. Available in classic shapes and styles, these products utilize a traditional product mix of large and small aggregates, that is consistent from top to bottom, with color mixed throughout.

Our technologies
Colors

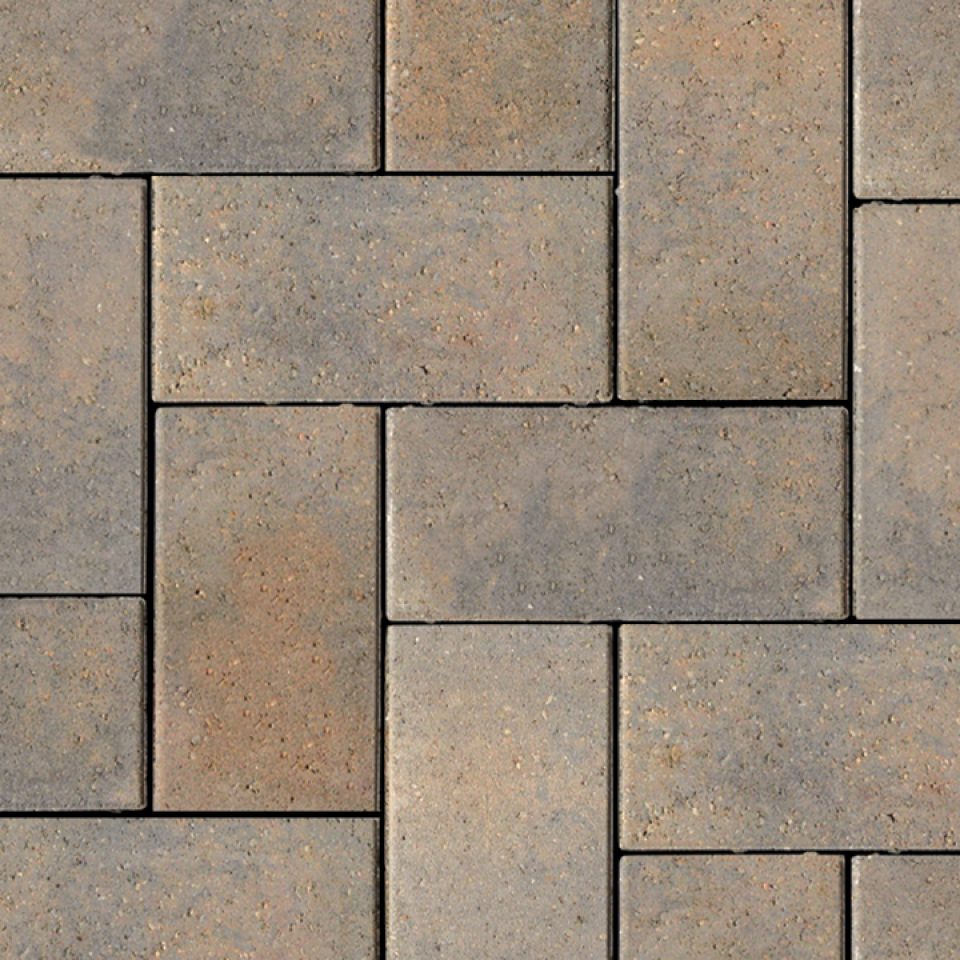

BEECHWOOD
Pick a color
BEECHWOOD
Information
Information
Packaging
Downloads

Eco-Priora

Eco-Priora is a rectilinear combination of paver sizes used mainly for commercial permeable applications. Eco-Priora can be customized for your particular design requirements. (Minimum qty. applies)

Recommended Base Stabilization – one layer of DriveGrid™" stabilization grid between subgrade and base material. Recommended depth 8” to 10” below pavers for maximum stability and performance. Use under Permeable Base.

Standard Base and Bedding Course – Not applicable

Permeable Base – Min. 6” – 8” of ¾“clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together.)

Permeable Bedding Course – 1” thick of 1/4” clear open-graded chip stone – (ASTM No. 8) screeded over base.

Special Note: Concrete Direct Overlay – Not applicable

Jointing Material and Joint Stabilization - Clear stone chip (ASTM No. 9) is swept in as jointing infill.

Handling – Can be installed by hand.

Edge Restraint - Always install an edge restraint around the perimeter of any paver installation not restrained by building structures. Spike-in edge restraints come in plastic and metal and work well for most applications. A concrete curb or a sub-surface concrete wedge can also be installed to retain the edge.

Paver Compaction - Always use a protective polymer pad on the bottom of your compactor when doing the final compaction of the pavers. An alternative is to use a rubber-roller compactor for the final compaction.

Cleaners – Any cleaner specifically designed for pavers may be used for color restoration or general cleaning. Follow manufacturer’s dilution rates and application procedures. Always test a small area to make sure the results are as expected.

 Sealers

  • Product may be sealed for aesthetic or cleanliness reasons but it is not required
  • Use any sealer approved for concrete pavers
  • Select type for desired aesthetics
  • Product must be cleaned before sealing
  • Always read and follow manufacturer’s application procedures
  • Always test a small area to make sure the results are as expected

The Americans with Disabilities Act Accessibility Guidelines (ADAAG) provides measurable criteria to determine compliance, not individual product evaluation. Gaps, joints or openings, greater than ½” horizontal and ¼” vertical should be avoided as they can disrupt wheelchair maneuvering (United States Access Board – Guidelines and Standards).

Unit Thickness (mm)
Layers per Bundle
Sq Ft per Bundle
Sq Ft per Layer
Sq Ft per Unit
Units per Bundle
Units per Layer
Lin Ft per Bundle - Soldier
Lin Ft per Layer - Soldier
Lin Ft per Unit - Soldier
Lin Ft per Bundle - Sailor
Lin Ft per Layer - Sailor
Lbs per Bundle
Lbs per Layer
Lbs per Unit
5"X10"
80
7
75.95
10.85
0.31
245
35
96.46
13.78
0.39
192.91
27.56
2,778.06
396.87
11.34
