DURA-HOLD®

Dura-Hold is a great alternative to poured in place retaining walls. Its large scale (standard size weighs 1,680lbs) is disguised by false joints which cast bold shadows to give the appearance of several individual blocks in each unit. Build gravity walls up to 6ft (1.8m) or grid reinforced walls up to 40ft (12m) high with proper engineering under typical conditions. Concrete tie-backs or Geogrid give this wall various engineering options. Coping units are also available.

-
-

DURA-HOLD®

Dura-Hold is a great alternative to poured in place retaining walls. Its large scale (standard size weighs 1,680lbs) is disguised by false joints which cast bold shadows to give the appearance of several individual blocks in each unit. Build gravity walls up to 6ft (1.8m) or grid reinforced walls up to 40ft (12m) high with proper engineering under typical conditions. Concrete tie-backs or Geogrid give this wall various engineering options. Coping units are also available.

Colors
Applications
Structural Walls
Shape and size
Special order

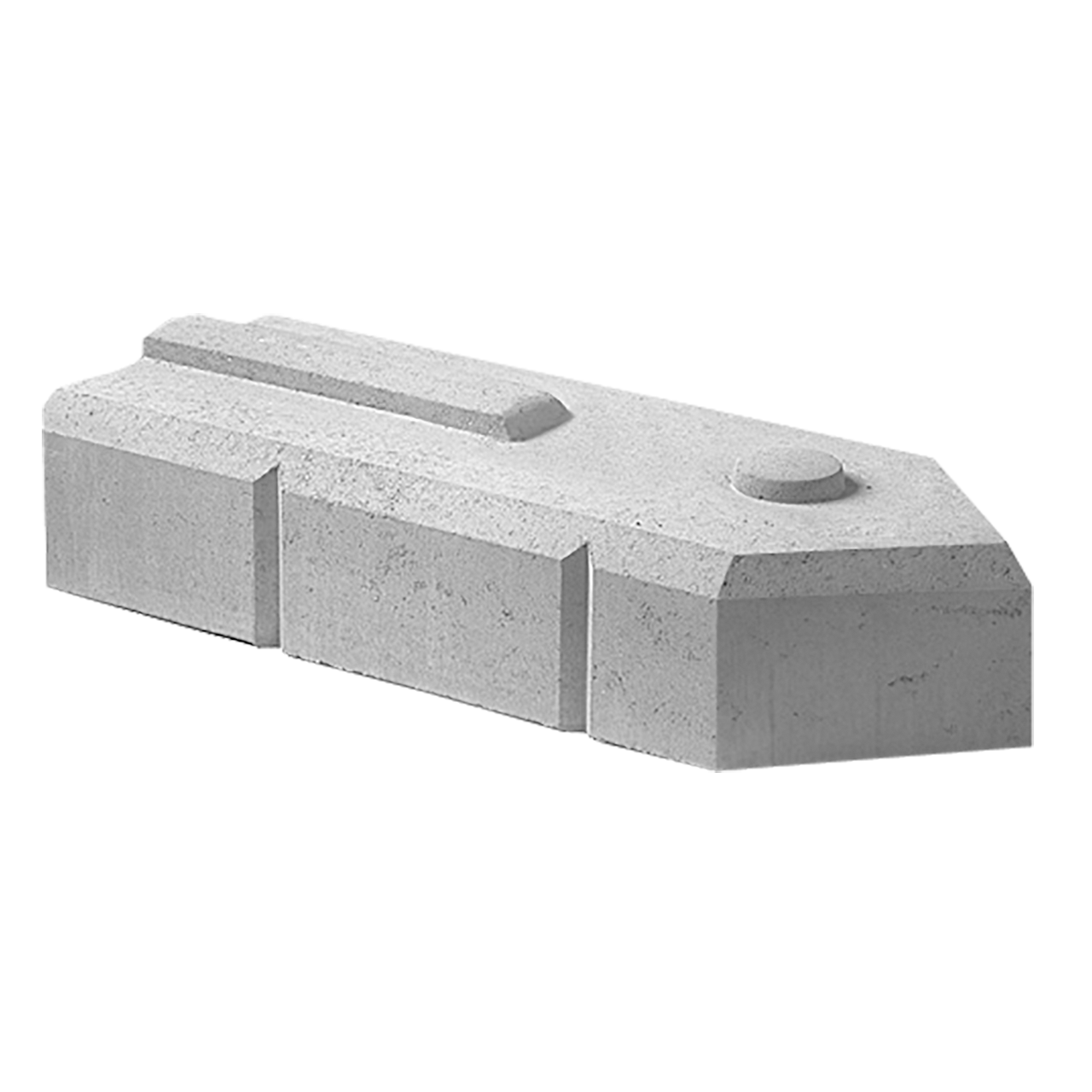

CONRER 45 RIGHT
1,520mm x 300mm x 600mm
59 7/8" x 11 7/8" x 23 5/8"
Special order
CORNER 45 LEFT
1,520mm x 300mm x 600mm
59 7/8" x 11 7/8" x 23 5/8"
Special order

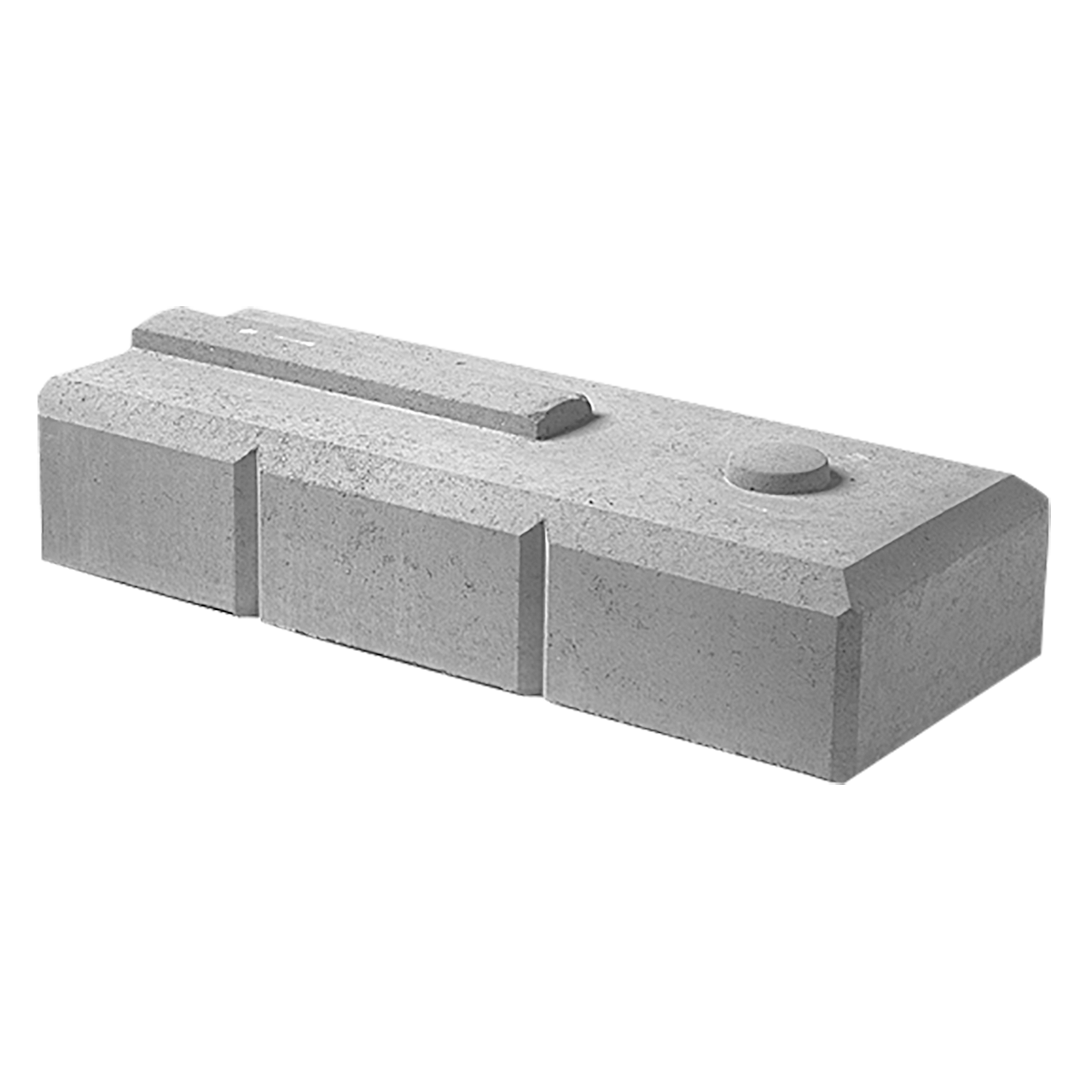

CORNER 90 LEFT
1,520mm x 300mm x 600mm
59 7/8" x 11 7/8" x 23 5/8"
Special order
CORNER 90 RIGHT
1,520mm x 300mm x 600mm
59 7/8" x 11 7/8" x 23 5/8"
Special order

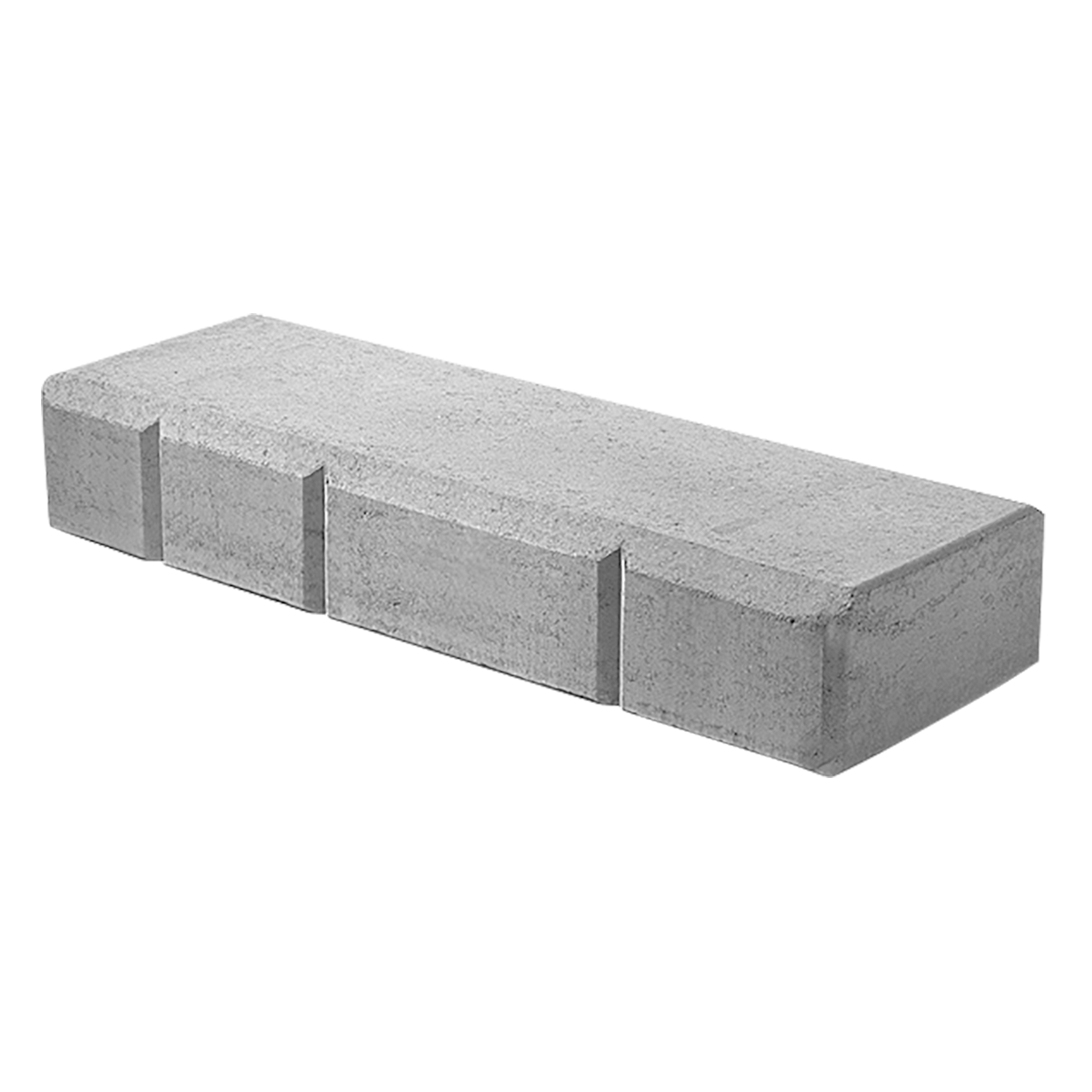

COPING CLOSED END
1,830mm x 300mm x 600mm
72" x 11 7/8" x 23 5/8"
Special order

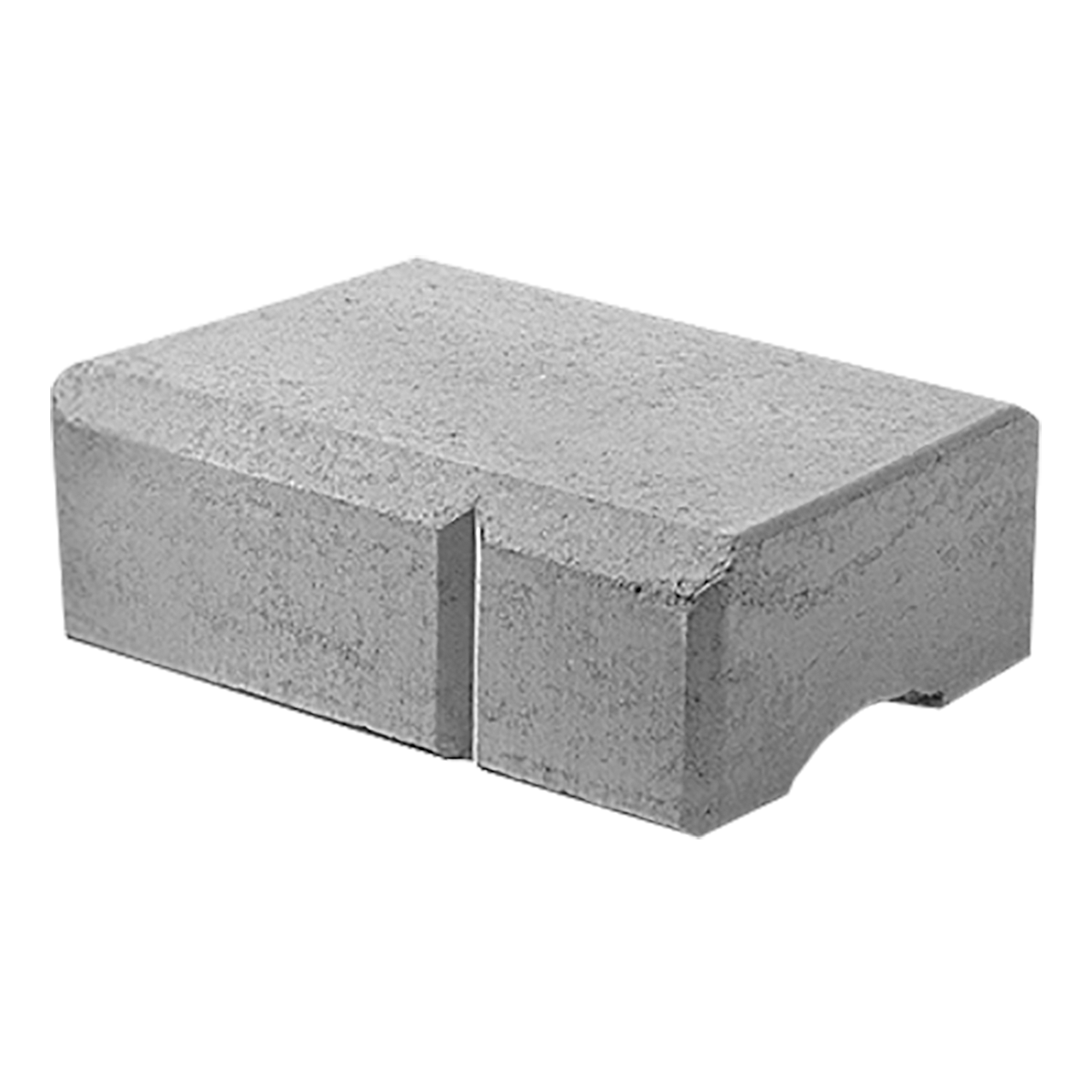

COPING HALF
915mm x 300mm x 600mm
36" x 11 7/8" x 23 5/8"
Special order

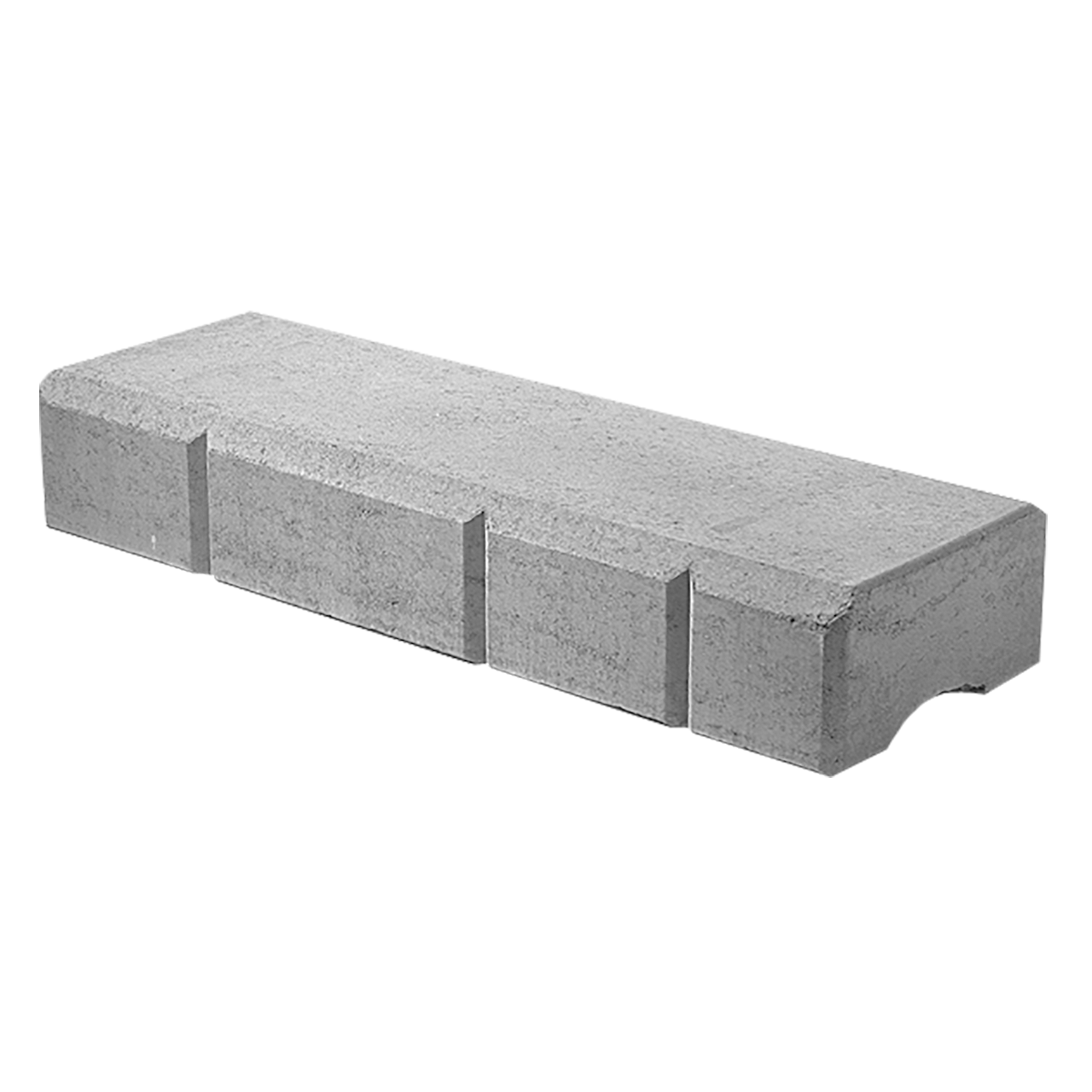

COPING STANDARD
1,830mm x 300mm x 600mm
72" x 11 7/8" x 23 5/8"
Special order

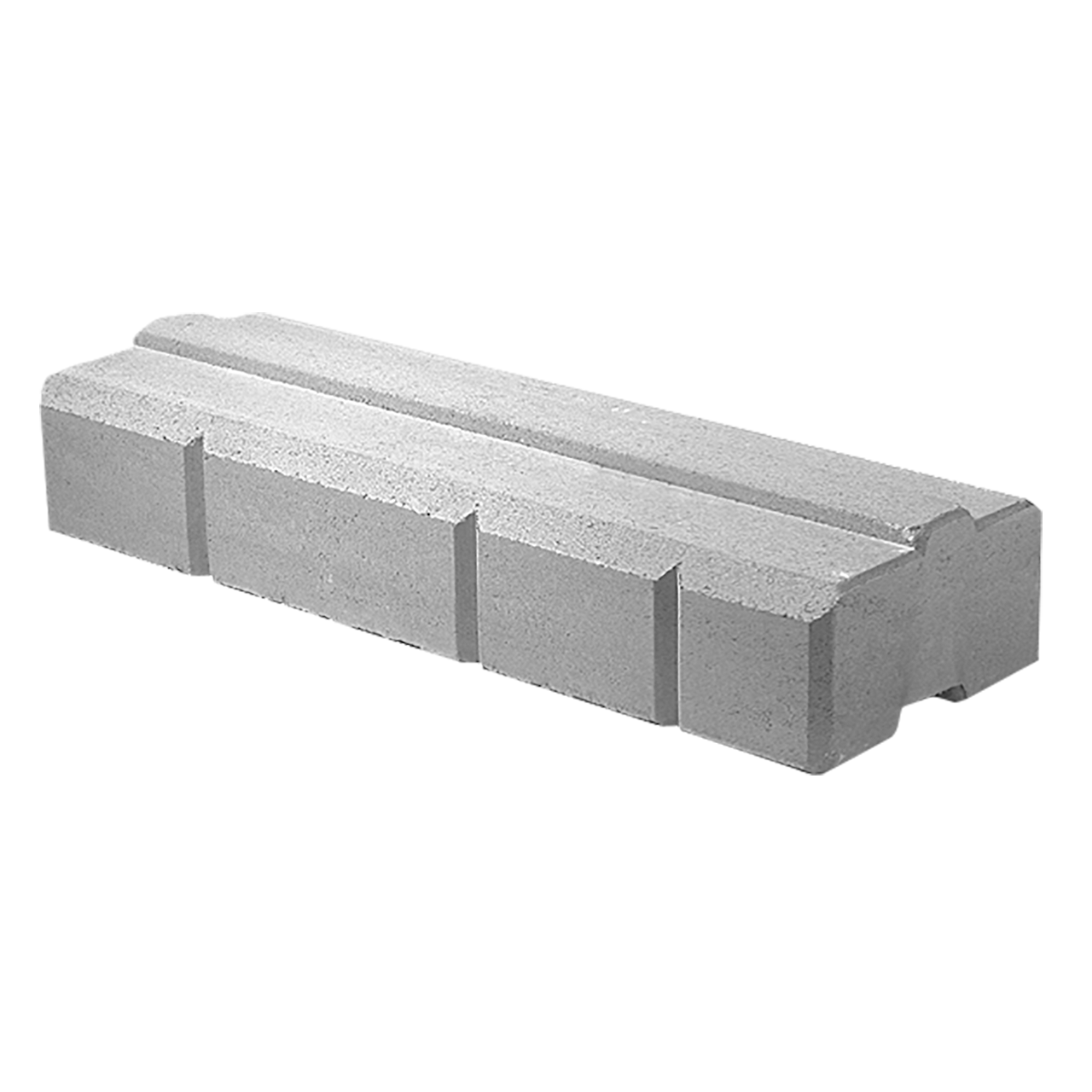

STANDARD
1,830mm x 300mm x 600mm
72" x 11 7/8" x 23 5/8"
Special order

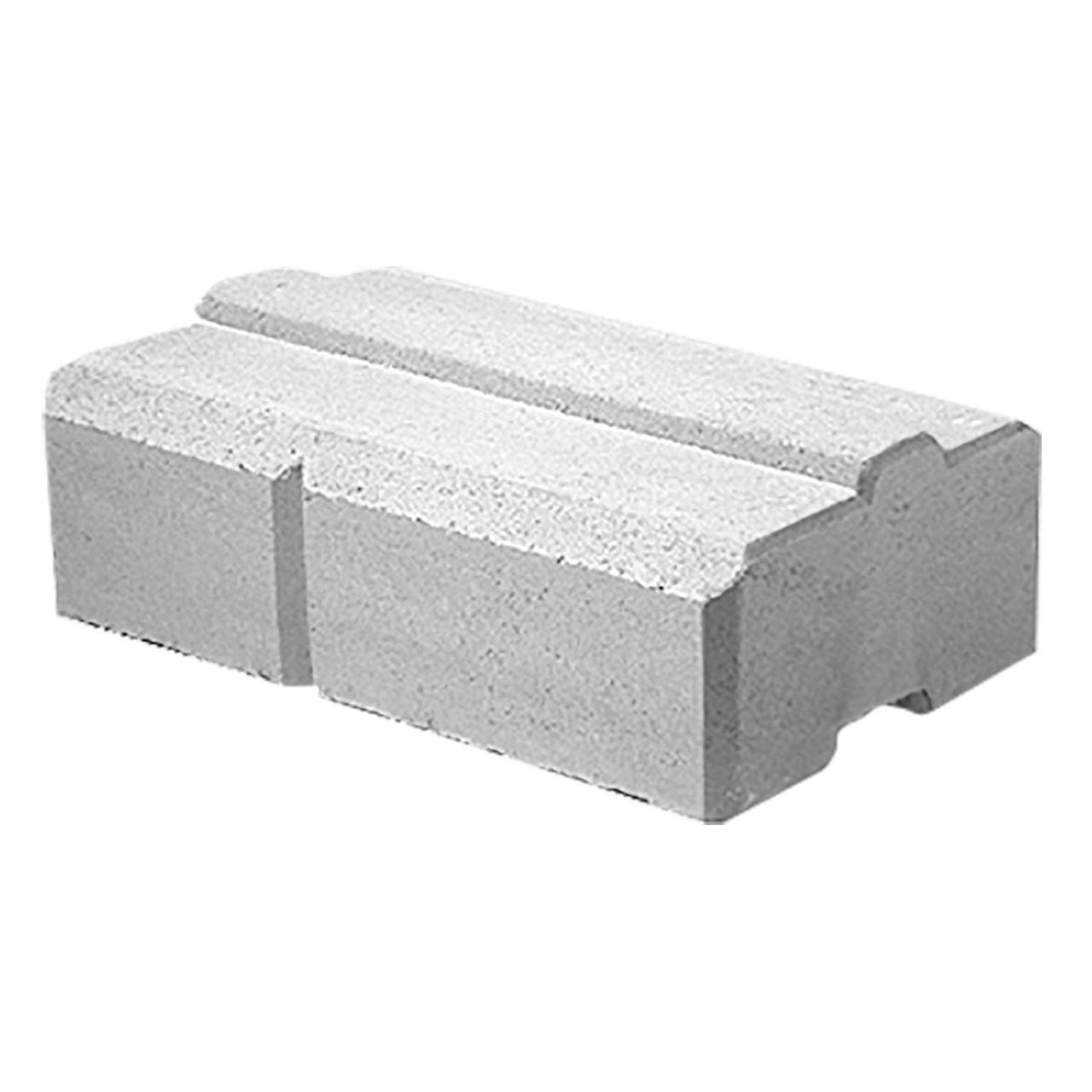

STANDARD HALF
915mm x 300mm x 600mm
36" x 11 7/8" x 23 5/8"
Special order
TIE-BACK
600mm x 300mm x 1,830mm
23 5/8" x 11 7/8" x 72"
Technologies
Technologies
Classic

Classic

Our budget-friendly, Unilock Classic pavers and walls are manufactured to exceed ASTM standards for quality and strength. Available in classic shapes and styles, these products utilize a traditional product mix of large and small aggregates that is consistent from top to bottom with color mixed throughout.

Our technologies
Colors
NATURAL
Pick a color
NATURAL
Information
Information
Packaging

DURA-HOLD®

Dura-Hold is an engineered large module - (1600 Lbs/800 Kg)- retaining wall system designed for extremely large gravity walls and reinforced walls. Dura-Hold is mostly often used in commercial applications or in residential applications where higher and stronger structural walls must be constructed. The large module size (6 face feet) makes it an extremely efficient wall to install. With each unit you are installing 6 face feet of wall.

Applications – Structural retaining walls for large embankments

Capacity – Gravity walls up to 6’ (1.8m). Geogrid reinforced walls up to 30 ft. (9.14m).

Recommended Base Stabilization – one layer of DriveGrid™ stabilization grid between subgrade and base material. Use under Standard Base or Permeable Base.

Standard Base – Min. 6” – 8” of ¾” Crusher Run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).

Alternative Permeable Base – Min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together.)

Leveling – Install Dura-Hold directly on a compacted granular base. Install level end to end as well as front to back. Poured concrete leveling pads, reinforced with rebar, are also a great way to accomplish leveling, especially for larger installations. You must ensure that the concrete is poured and finished perfectly in order to achieve a good visual appearance.

Connection – features a tongue and groove connection.

Handling – This is a mechanically placed wall system. Special clamps for lifting are available for use during project.

Coping - This wall requires the Dura-Hold specific coping. Coping attaches with tongue and groove connection. No adhesive required.

Layers per BundleLin Ft per Bundle - SoldierUnits per BundleUnits per LayerUnits per FcFtLbs per LayerLbs per BundleLbs per UnitLin Ft per Layer - SoldierLin Ft per Unit - SoldierFcFt per LayerFcFt per BundleFcFt per Unit
COPING CLOSED ENDCOPING STANDARDCOPING HALFSTANDARDCORNER 90 RIGHTCORNER 90 LEFTCONRER 45 RIGHTCORNER 45 LEFTSTANDARD HALFTIE-BACK
Layers per Bundle1111111111
Lin Ft per Bundle - Soldier6.026.003.006.02 - - - - 3.00 -
Units per Bundle1111111111
Units per Layer1111111111
Units per FcFt0.170.170.340.170.140.140.140.140.330.50
Lbs per Layer15601560780168013201320148014808001660
Lbs per Bundle15601560780168013201320148014808001660
Lbs per Unit15601560780168013201320148014808001660
Lin Ft per Layer - Soldier6.026.003.006.02 - - - - 3.00 -
Lin Ft per Unit - Soldier6.026.003.006.02 - - - - 3.00 -
FcFt per Layer6.026.022.956.027.047.047.047.043.002
FcFt per Bundle6.026.022.956.027.047.047.047.043.002
FcFt per Unit6.026.022.956.027.047.047.047.043.002
