Dura-Hold II®

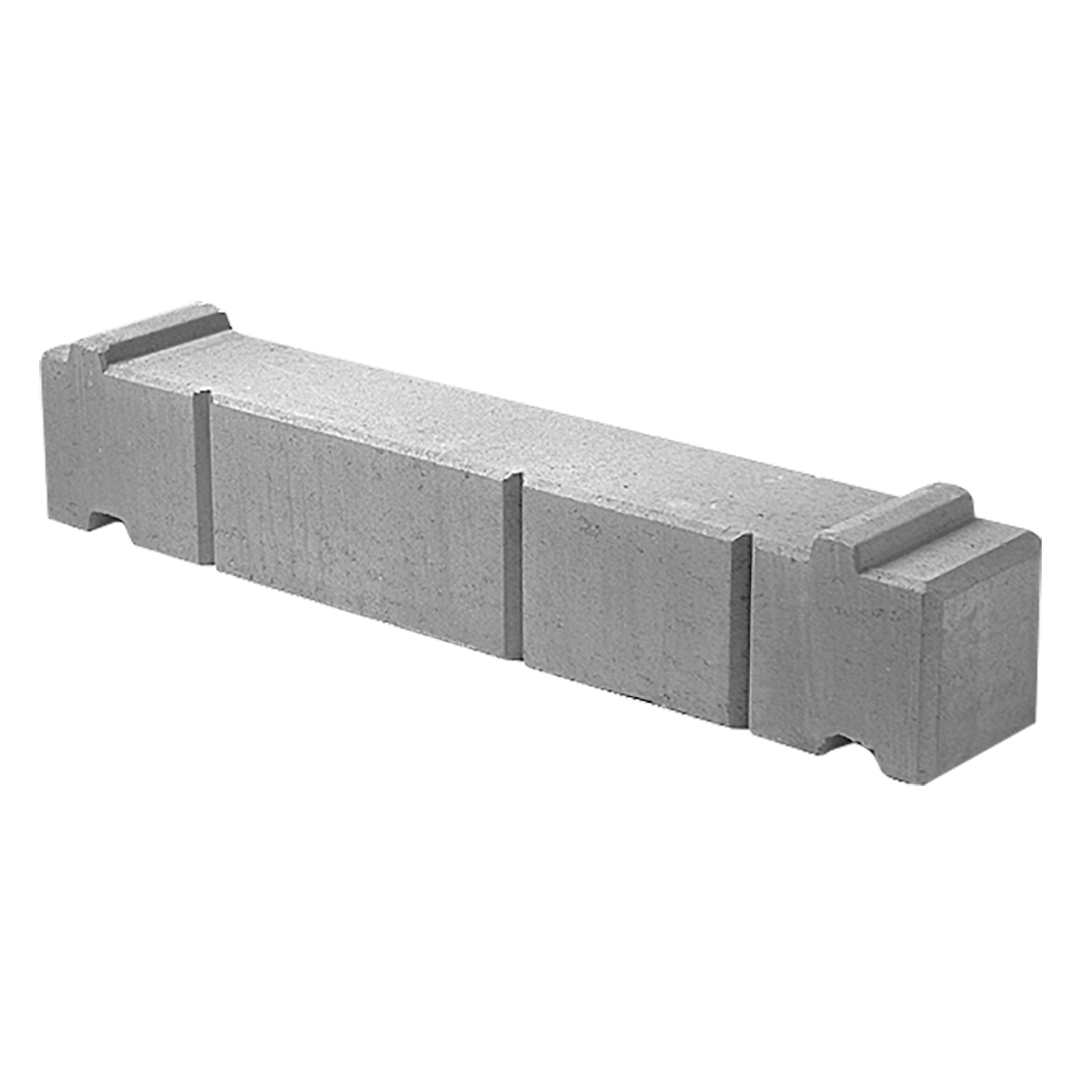

Dura-Hold II is similar to Dura-Hold in appearance, but is just over half the size, making it economical in terms of material cost, speed and efficiency for lower retaining walls. Its large scale (standard size weighs 940lbs) is disguised by false joints which cast bold shadows to give the appearance of several individual blocks in each unit. Build gravity walls up to 4ft (1.2m) or grid reinforced walls up to 25ft (7.6m) high with proper engineering under typical conditions. Concrete tie-backs or geogrid give this wall various engineering options. Coping units are also available.

Unilock DuraHold 2 Standard
-
Unilock DuraHold 2 Standard
-

Dura-Hold II®

Dura-Hold II is similar to Dura-Hold in appearance, but is just over half the size, making it economical in terms of material cost, speed and efficiency for lower retaining walls. Its large scale (standard size weighs 940lbs) is disguised by false joints which cast bold shadows to give the appearance of several individual blocks in each unit. Build gravity walls up to 4ft (1.2m) or grid reinforced walls up to 25ft (7.6m) high with proper engineering under typical conditions. Concrete tie-backs or geogrid give this wall various engineering options. Coping units are also available.

Colors
Applications
Retaining Wall
Shape and size
Special order
COPING CLOSED END
1,830mm x 300mm x 360mm
72" x 11 7/8" x 14 1/4"
Special order

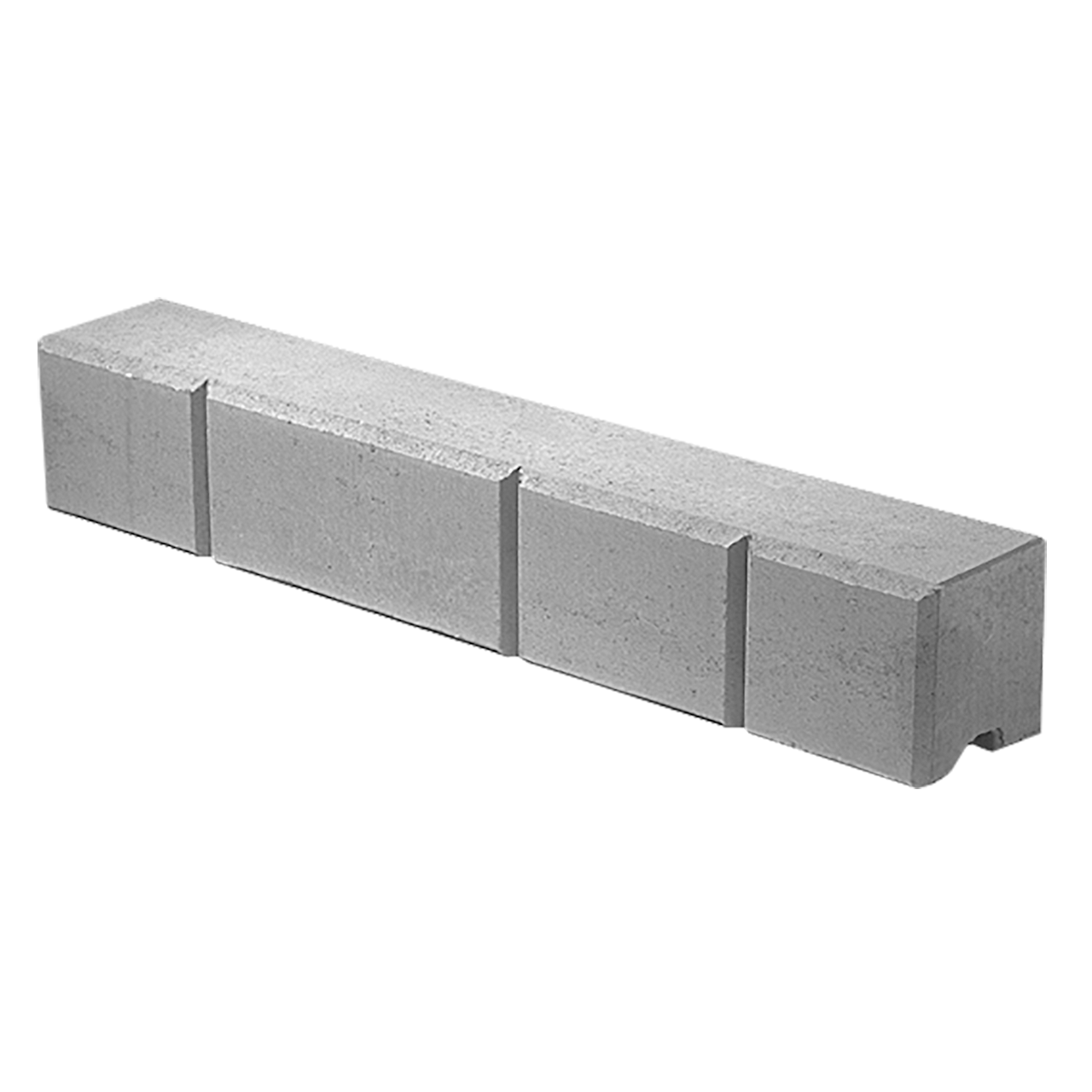

COPING STANDARD
1,830mm x 300mm x 360mm
72" x 11 7/8" x 14 1/4"
Special order

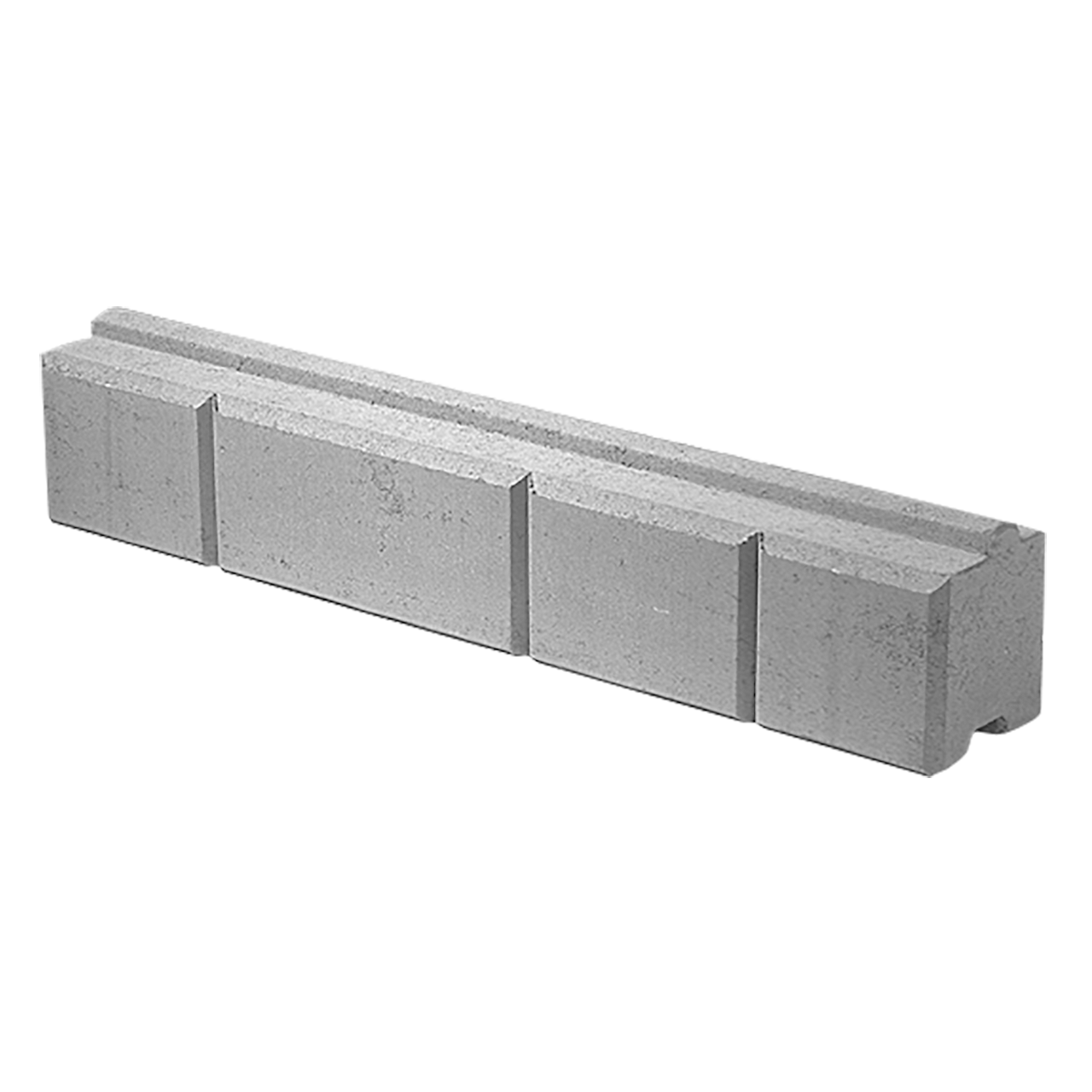

STANDARD
1,830mm x 300mm x 360mm
72" x 11 7/8" x 14 1/4"
Technologies
Technologies
Classic

Classic

Our budget-friendly, Unilock Classic pavers and walls are manufactured to exceed as ASTM standards for quality and strength. Available in classic shapes and styles, these products utilize a traditional product mix of large and small aggregates, that is consistent from top to bottom, with color mixed throughout.

Our technologies
Colors
NATURAL
Pick a color
NATURAL
Information
Information
Packaging

Dura-Hold II ®

Dura-Hold ®II has the same visual appearance of Dura-Hold, and is generally used in conjunction with Dura-Hold for areas of a project where the massive size of Dura-Hold is not required but the look needs to be maintained. Each module weighs 940 lbs (426 kg) - which is half the weight of Dura-Hold - but the installation rate/coverage is the same. From a cost standpoint, Dura-Hold II is very efficient.

Applications – Structural retaining walls for large embankments

Capacity – Gravity walls up to 39” (1m). Geogrid reinforced walls up to 23 ft. (7m)

Recommended Base Stabilization – one layer of DriveGrid™ stabilization grid between subgrade and base material. Use under Standard Base or Permeable Base.

Standard Base – Min. 6” – 8” of ¾” Crusher Run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).

Alternative Permeable Base – Min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together.)

Leveling – Leveling large retaining wall blocks directly on top of gravel is difficult. U-Grip Base units or universal base pads are recommended under most Unilock walls for improved accuracy and make for a speedier installation. For Durahold II, turn the U-Grip base units 90 degrees for a larger front to back latitude for the blocks to sit on. For larger projects, it is recommended to install a poured concrete leveling pad reinforced with rebar. You must ensure that the concrete is poured and finished perfectly in order for the blocks to sit properly without cracking.

Connection – features a tongue and groove connection.

Handling – This is a mechanically placed wall system. Special clamps for lifting are available for use during project.

Coping - This wall requires the Durahold II specific coping. Coping attaches with tongue and groove connection. No adhesive required.

Unit Thickness (mm)
Layers per Bundle
FcFt per Bundle
FcFt per Layer
FcFt per Unit
Units per Bundle
Units per Layer
Lbs per Bundle
Lbs per Layer
Lbs per Unit
STANDARD
300
1
6.02
6.02
6.02
1
1
938.01
938.01
938.01
COPING STANDARD
300
4
24.08
6.02
6.02
4
1
3,536
884
884
COPING CLOSED END
300
4
24.08
6.02
6.02
4
1
3,536
884
884
