BRISTOL VALLEY®

The subtle surface texture and an understated edge detail of Bristol Valley brings a new, refined elegance to projects where a more commonplace flagstone slab may have been used in the past. With the refined surface and long lasting color of Enduracolor, Bristol Valley is an excellent choice for patios, pool surrounds and walkways. Blended colors add to the appearance of natural stone. Available in a random bundle, three moderately sized units can be laid in a number of patterns for a more, or less, random appearance. A new, larger XL rectangle is also available in some regions, to be used alone or in combination with the random bundle.

-
-

BRISTOL VALLEY®

The subtle surface texture and an understated edge detail of Bristol Valley brings a new, refined elegance to projects where a more commonplace flagstone slab may have been used in the past. With the refined surface and long lasting color of Enduracolor, Bristol Valley is an excellent choice for patios, pool surrounds and walkways. Blended colors add to the appearance of natural stone. Available in a random bundle, three moderately sized units can be laid in a number of patterns for a more, or less, random appearance. A new, larger XL rectangle is also available in some regions, to be used alone or in combination with the random bundle.

Colors
Applications
Borders and Accents
Pedestrian
Shape and size
Random Bundle

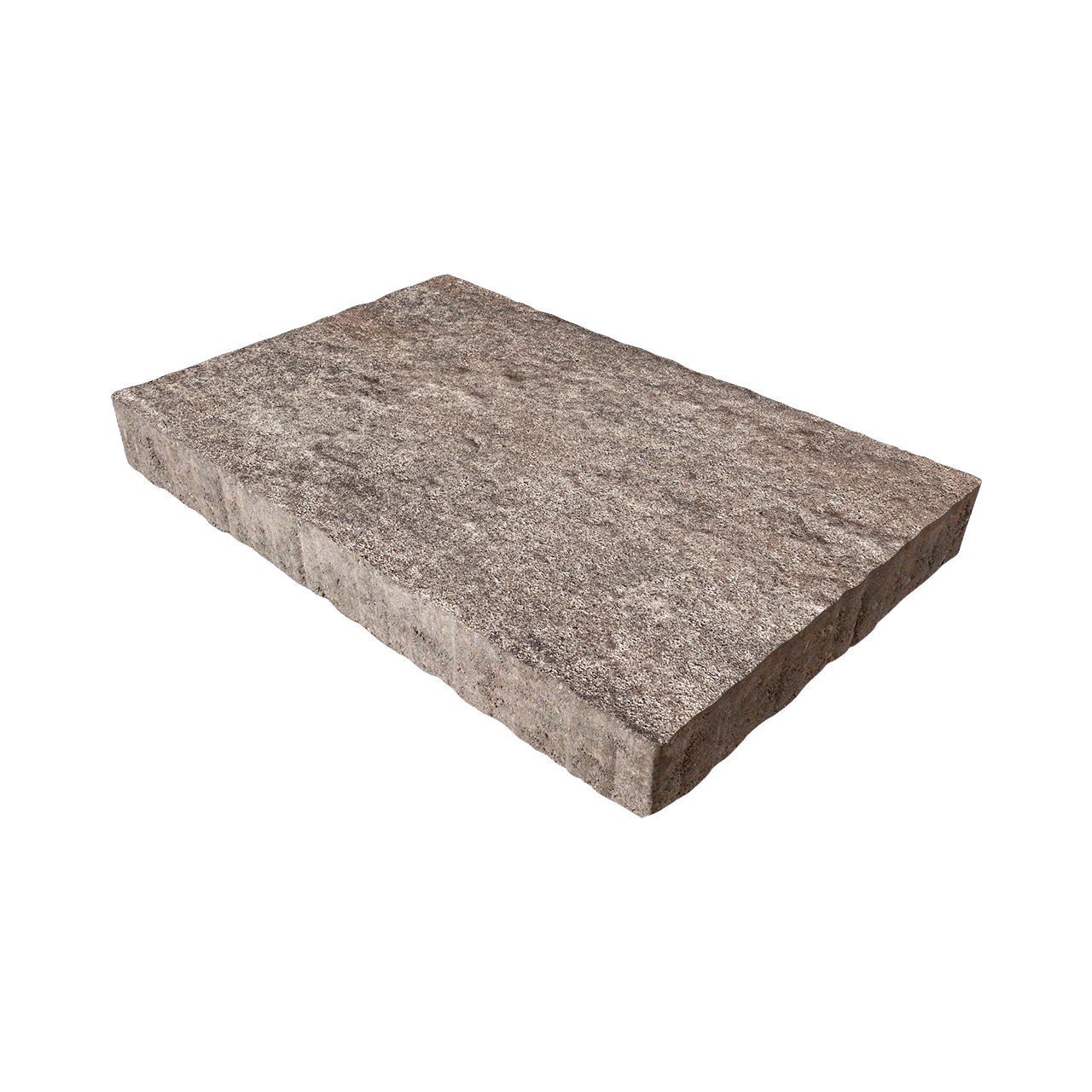

LARGE RECTANGLE
360mm x 540mm x 60mm
14 1/4" x 21 1/4" x 2 3/8"

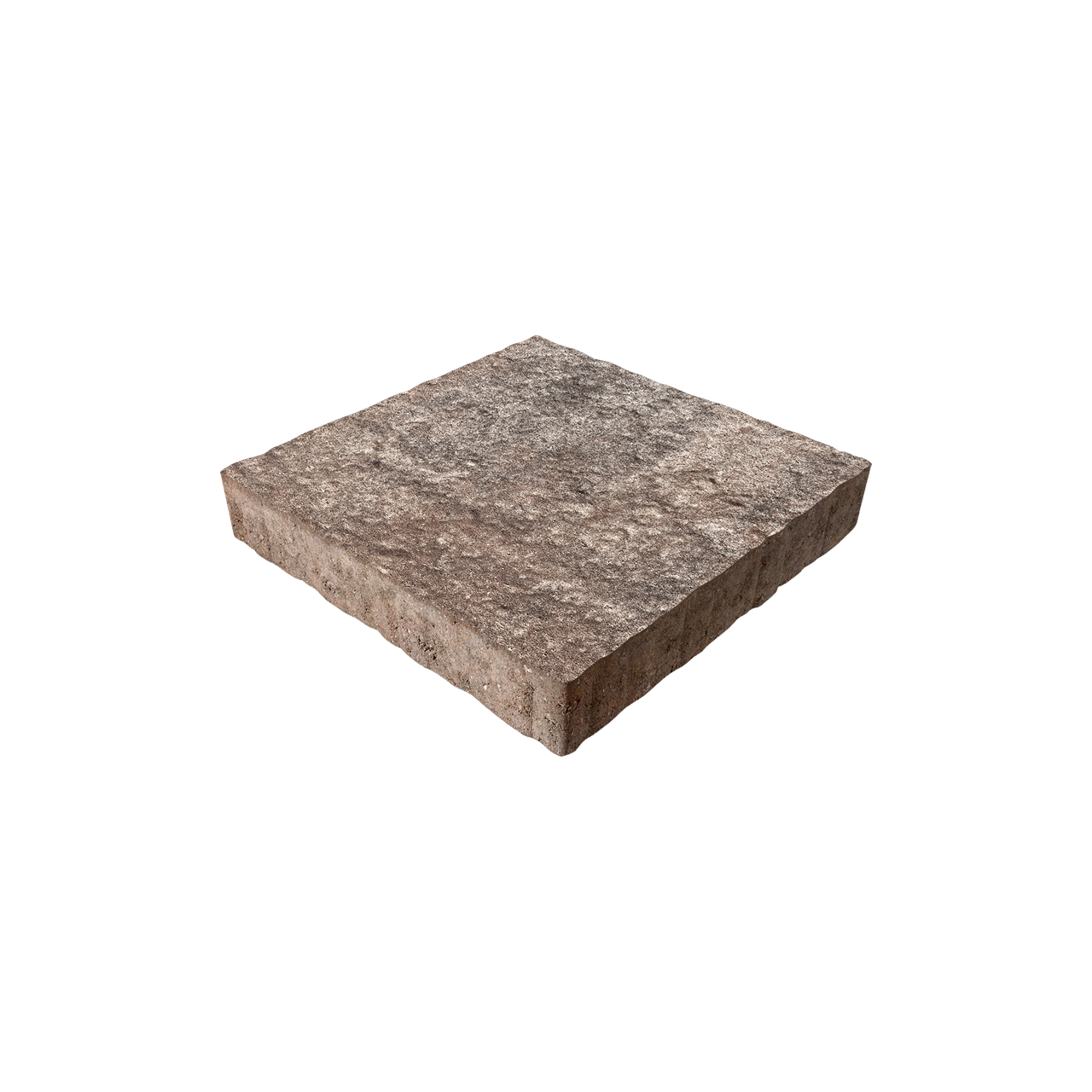

SQUARE
360mm x 360mm x 60mm
14 1/4" x 14 1/4" x 2 3/8"

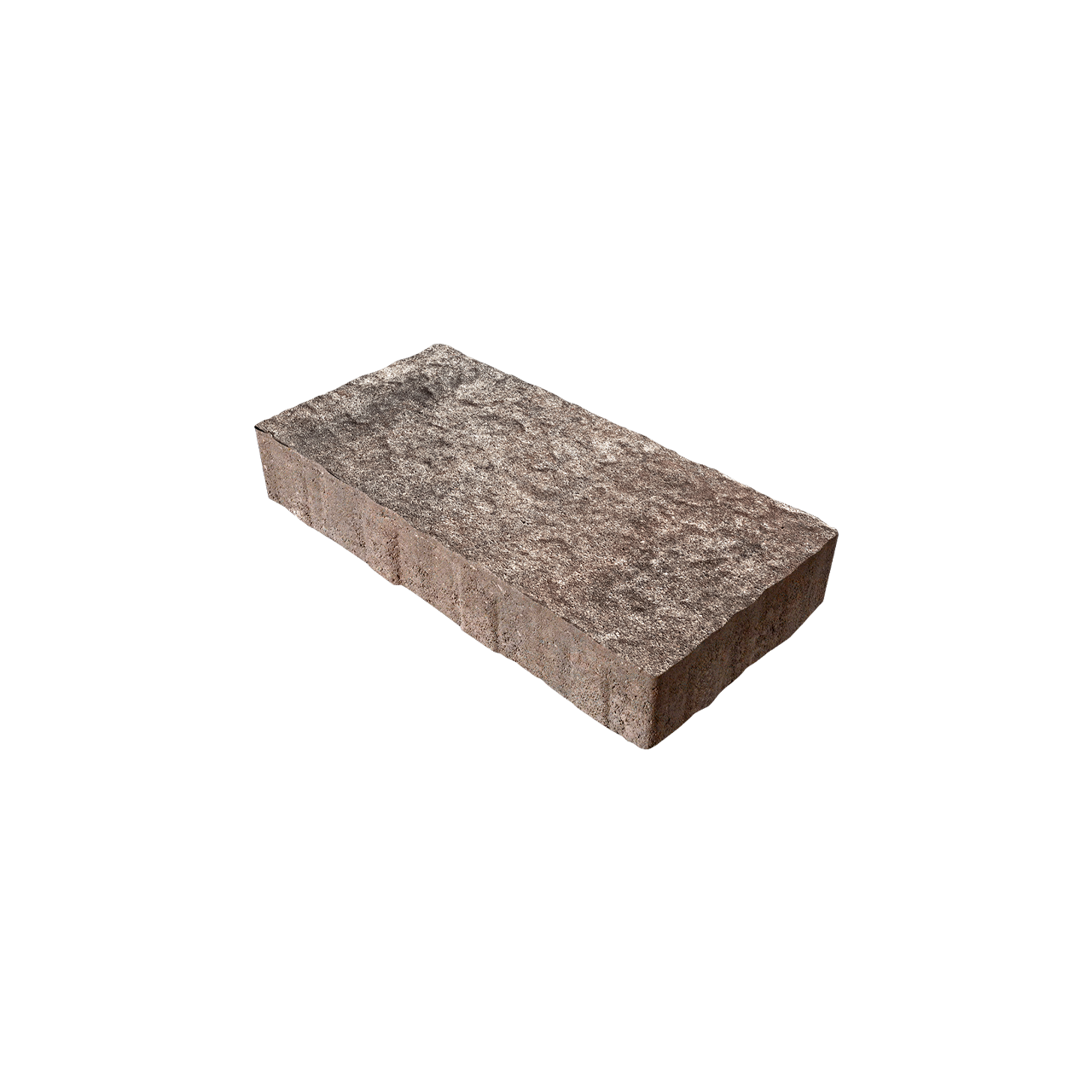

SMALL RECTANGLE
180mm x 360mm x 60mm
7" x 14 1/4" x 2 3/8"
LARGE RECTANGLE
360mm x 540mm x 60mm
14 1/4" x 21 1/4" x 2 3/8"
SQUARE
360mm x 360mm x 60mm
14 1/4" x 14 1/4" x 2 3/8"
SMALL RECTANGLE
180mm x 360mm x 60mm
7" x 14 1/4" x 2 3/8"
LARGE RECTANGLE
360mm x 540mm x 60mm
14 1/4" x 21 1/4" x 2 3/8"
SQUARE
360mm x 360mm x 60mm
14 1/4" x 14 1/4" x 2 3/8"
SMALL RECTANGLE
180mm x 360mm x 60mm
7" x 14 1/4" x 2 3/8"

Product Gallery

Technologies
Technologies
EnduraColor
EasyClean ™

The refined surface of Unilock EnduraColor products is achieved with a two step manufacturing process that combines a base of coarser aggregates for a stronger foundation, with concentrated color and wear-resistant finer aggregates on top. This process protects the surface from the appearance of fading over time because the top layer prevents large, lighter color aggregates from ever showing through.

Our technologies

EasyClean ™

Unlike after-market sealers which merely coat the top, EasyClean goes beyond the surface and becomes integral to the product during manufacturing. The result is enhanced surface color and protection from stains.

Our technologies
Colors
BAVARIAN
STEEL MOUNTAIN
NEW YORK BLEND
Pick a color
BAVARIAN
STEEL MOUNTAIN
NEW YORK BLEND
Jointing
Jointing

DETAIL MATTERS

The color of jointing sand you choose can have an impact on the overall look and feel of your paver patio, driveway or pool deck. Experiment with different options here.

Black Sand
Grey Sand
Tan Sand
Information
Information
Packaging
Downloads

BRISTOL VALLEY®

Bristol Valley Pavers have the charm and character of natural flagstone. Slightly waved edges and a flamed textured surface give it an authentic feel.

Recommended Base Stabilization – one layer of DriveGrid™" stabilization grid between subgrade and base material. Recommended depth 8” to 10” below pavers for maximum stability and performance. Use under Standard Base or Permeable Base.

Standard Base – Min. 6” – 8” of ¾” Crusher Run gravel (any road base standard in accordance with ASTM-D2940) compacted to 98% Standard Proctor Density (SPD).

Standard Bedding Course – 1” thick of coarse sand– in accordance with ASTM-D2940 screeded over base.

Alternative Permeable Base – Min. 6” – 8” of ¾“ clear open-graded stone compacted to achieve full particle lock-up and consolidation. (Clear open-graded does not compact but does consolidate slightly by rattling the particles together.)

Alternative Permeable Bedding Course – 1” thick of 1/4” clear open-graded chip stone – (ASTM No. 8) screeded over base.

Special Note: Concrete Direct Overlay – In some areas of the country and in some applications pavers are very successfully placed directly over concrete. Concrete as a base is in itself quite strong, but it can affect the structural integrity of the paver particularly in vehicular applications, where the concrete below is sub-par. The following considerations must be taken into account to insure that the concrete below the surface is ideal:

  1. Concrete integrity – concrete must be in good condition, and not crumbling
  2. Drainage slope – concrete below must be sloped away from all buildings and structures
  3. Drainage holes – In lowest areas of the concrete, drill 1” holes in concrete (on 12” centers) and fill holes with ¼” chip (ASTM No. 8)
  4. Base drainage - the area below the concrete must not be subject to frost movement
  5. Surface - surface must be totally smooth and flat equivalent to the desired finished surface
  6. Waterproofing - may be required when installing pavers over concrete where there is a basement or cold cellar below. Install an impervious rubber membrane over the surface prior to installing any pavers over the surface.
  7. Jointing Sand - Use an impervious polymeric sand when installing over concrete

Jointing Material and Joint Stabilization

All sands must meet ASTM C144 or C33 Specifications. For best appearance and optimal performance,, keep jointing materials approximately 1/8” below the chamfer (bevel edge) of the paver.

Good Option: Ordinary sharp jointing sand in accordance with ASTM C144 or C33. (Common name: Concrete Sand)

Best Option: Any polymeric sand or ordinary concrete sand stabilized by a water-based or solvent-based joint sand stabilizer sealer. Always follow manufacturer’s application specifications and requirements.



Handling – This product has no special handling requirements.

Edge Restraint - Always install an edge restraint around the perimeter of any paver installation not restrained by building structures. Spike-in edge restraints come in plastic and metal and work well for most applications. A concrete curb or a sub-surface concrete wedge can also be installed to retain the edge.

Paver Compaction - Always use a protective polymer pad on the bottom of your compactor when doing the final compaction of the pavers. An alternative is to use a rubber-roller compactor for the final compaction.

Cleaners – Any cleaner specifically designed for pavers may be used for color restoration or general cleaning. Follow manufacturer’s dilution rates and application procedures. Always test a small area to make sure the results are as expected.

Sealers

  • Product may be sealed for aesthetic or cleanliness reasons but it is not required
  • Use any sealer approved for concrete pavers
  • Select type for desired aesthetics
  • Product must be cleaned before sealing
  • Always read and follow manufacturer’s application procedures
  • Always test a small area to make sure the results are as expected
height_1Sq Ft per BundleSq Ft per LayerSqFt Per SectionLayers per BundlePer Bundle SectionLin Ft per Sq.Ft. - SailorSailor LnFt Per SectionLin Ft per Bundle - SailorUnits per Sq FtUnits Per SectionUnits per BundleUnits per LayerLbs per LayerLbs Per SectionLbs per BundleLbs per UnitLin Ft per Layer - SailorSq Ft per Unit
Random Bundle
Sq Ft per Bundle104.60
Sq Ft per Layer10.46
SqFt Per Section34.87
Layers per Bundle10
Per Bundle Section3
Lin Ft per Sq.Ft. - Sailor0.85
Sailor LnFt Per Section29.53
Lin Ft per Bundle - Sailor88.58
Units per Sq Ft0.76
Units Per Section26.67
Units per Bundle80
Units per Layer8
Lbs per Layer294
Lbs Per Section980
Lbs per Bundle2940
Lbs per Unit36.75
Lin Ft per Layer - Sailor8.86
Sq Ft per Unit1.31
