ARCHITECTURAL CAP AND COPING
ARCHITECTURAL PILLAR CAP AND COPING
Granite, quartz and marble aggregates are exposed in the sophisticated surface of Architectural Coping and Pillar Caps. Manufactured with Enduracolor™ technology, the refined surface and concentrated color is built to last.
ARCHITECTURAL PILLAR CAP AND COPING
Granite, quartz and marble aggregates are exposed in the sophisticated surface of Architectural Coping and Pillar Caps. Manufactured with Enduracolor™ technology, the refined surface and concentrated color is built to last.
Colors
Applications
Pillars
Shape and size

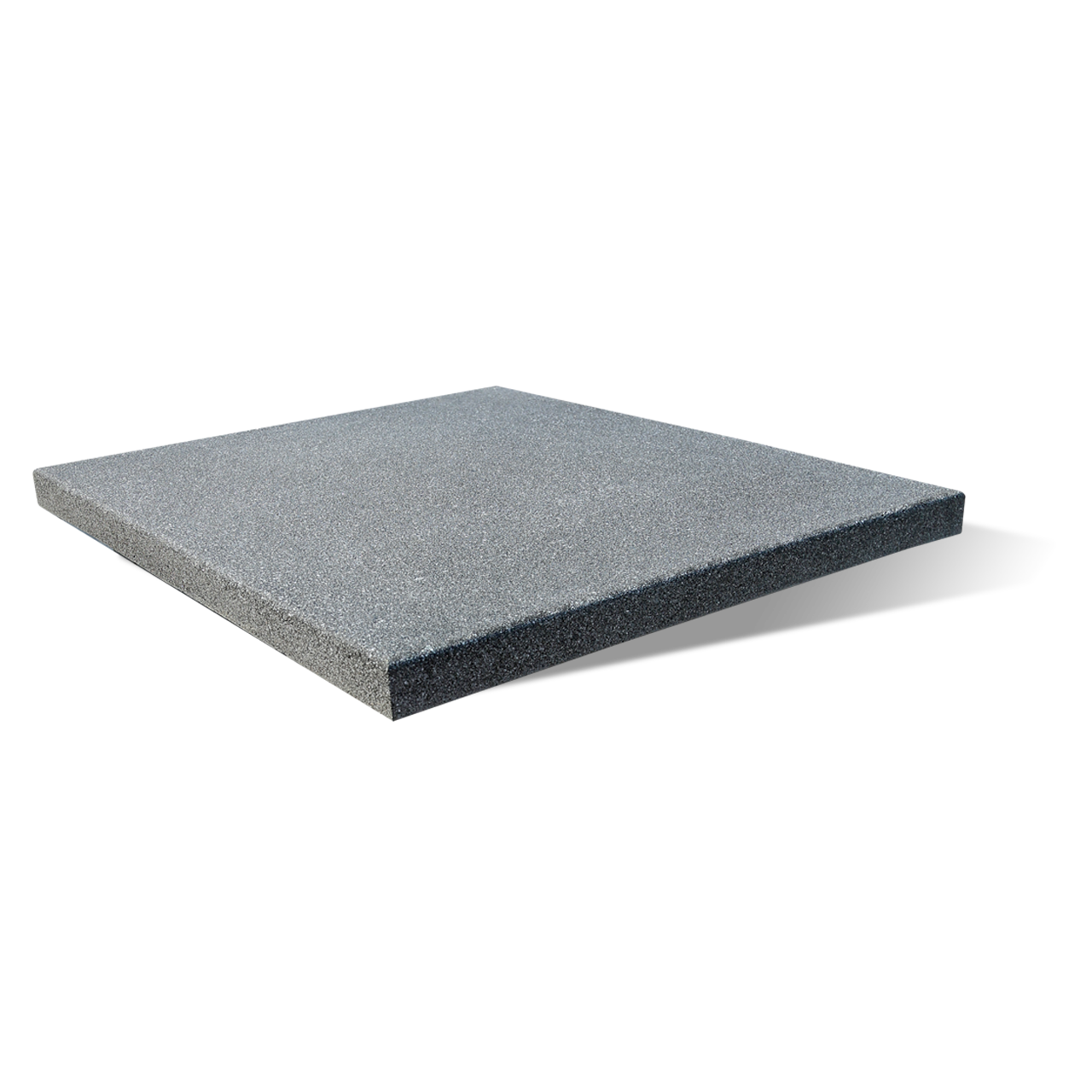

PILLAR CAP 28"
711mm x 76mm x 711mm
28" x 3" x 28"
711mm x 76mm x 711mm
28" x 3" x 28"
PILLAR CAP 28"
711mm x 76mm x 711mm
28" x 3" x 28"
711mm x 76mm x 711mm
28" x 3" x 28"
COPING
609mm x 60mm x 355mm
24" x 2 3/8" x 14"
609mm x 60mm x 355mm
24" x 2 3/8" x 14"
COPING
609mm x 60mm x 355mm
24" x 2 3/8" x 14"
609mm x 60mm x 355mm
24" x 2 3/8" x 14"
Technologies
Technologies
The refined surface of Unilock EnduraColor products is achieved with a two step manufacturing process that combines a base of coarser aggregates for a stronger foundation, with concentrated color and wear-resistant finer aggregates on top. This process protects the surface from the appearance of fading over time because the top layer prevents large, lighter color aggregates from ever showing through.
Colors
Pick a color

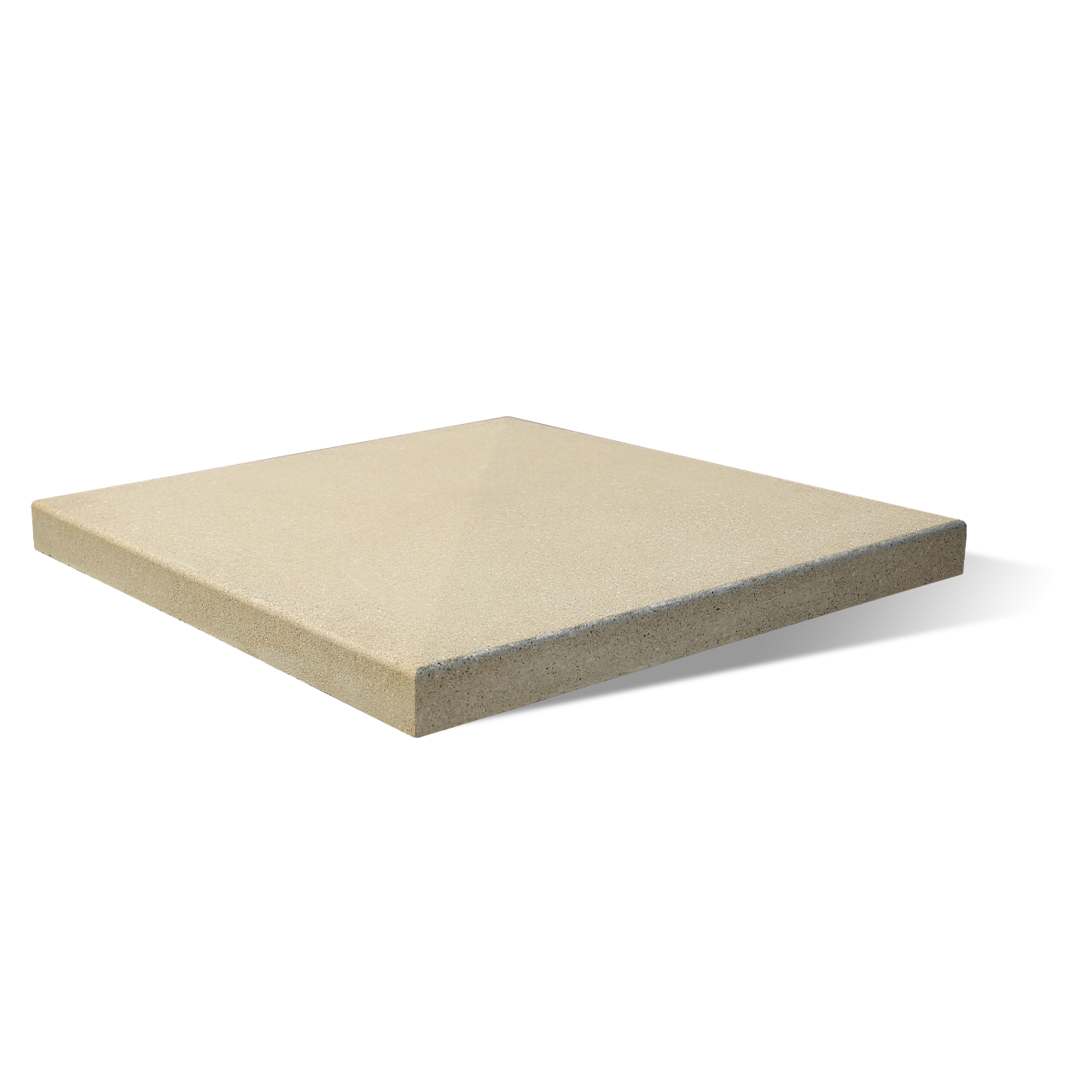

BUFF

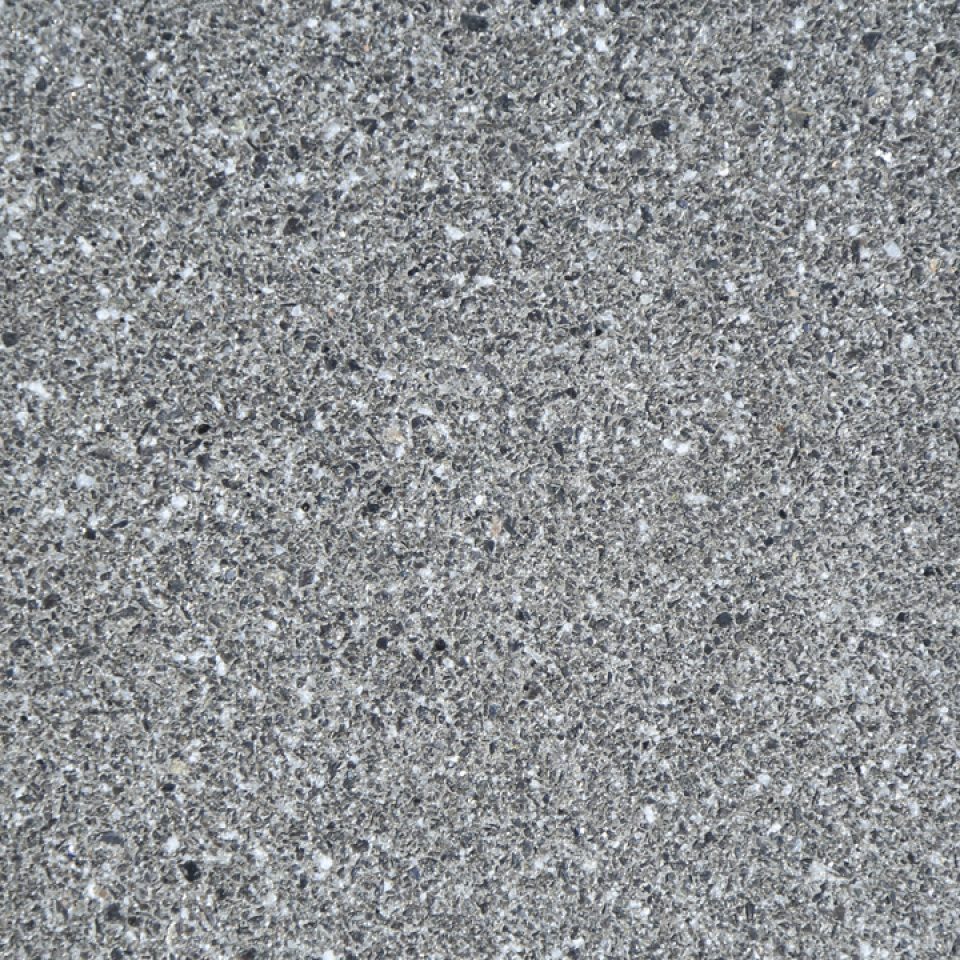

CHARCOAL
Information
Architectural Pillar Cap and Coping
APPLICATIONS – This non-slip surface texture is especially ideal for pool edge coping and step treads, but is also perfect for any project requiring wall coping and capping of pillars. Architectural Coping and Pillar Caps have similar attributes to our Arcana slabs, and are able to provide a complete pool deck solution.
CONNECTION – Non-mechanical connection. Use concrete adhesive specifically designed for connecting modular concrete units. Always read adhesive manufacturers’ directions prior to gluing.
HANDLING – Placement of the cap onto the top of the pillar should be done with a suction lifting device (that can lift greater than 500 lbs.) or with heavy equipment straps suspended from a mini-excavator. For both the cap and coping, handle gently to avoid chipping edges.
Unit Thickness (mm)
Layers per Bundle
Units per Bundle
Units per Layer
Lbs per Bundle
Lbs per Layer
Lbs per Unit
COPING
60
21
21
1
1,428
68
68
PILLAR CAP 28"
76
6
6
1
1,098
183
183
